Error message "Projection Error" is displayed.

Issue

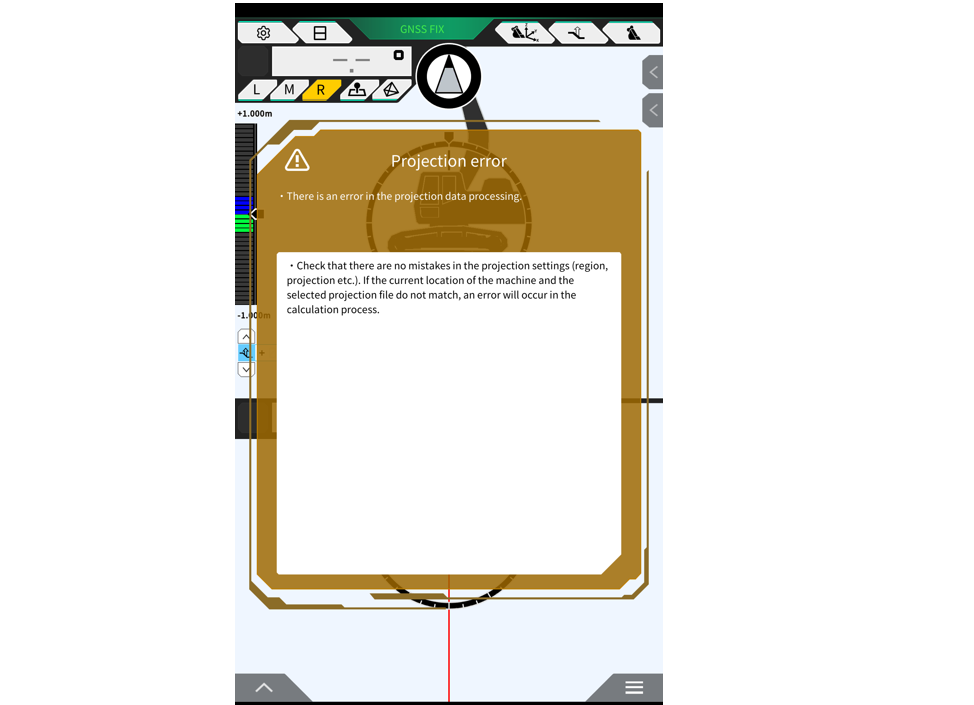

Error message "Projection Error" is displayed in SC Pilot APP.

Cause

• Mistake in the projection settings (region, projection method, etc.)

- Check that there are no mistakes in the projection settings (region, projection method, etc.). If the current location of the machine and the system of the selected projection file do not match, an error will occur in the calculation process.

Below is the probable cause of this issue:

Action/How to deal

Follow the procedures below to check projection settings:

• Insufficient reference points for localization.

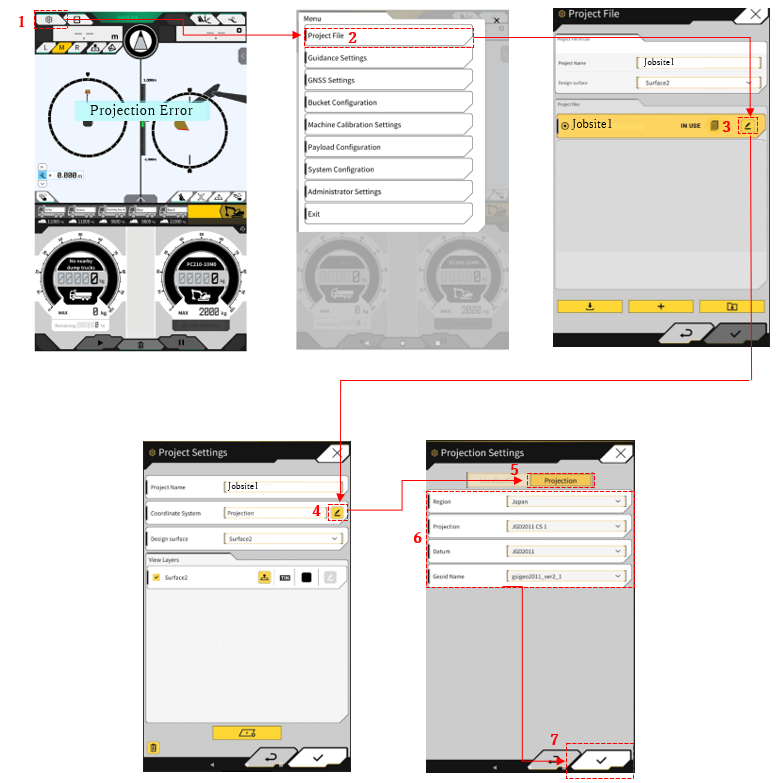

Check the reference points for localization. Tap Menu button(1) > Tap Project File(2) > Tap Edit Button(3) > Tap Edit Button(4) > Tap Projection Tab(5) > Check that the projections settings(6) are correct based on the jobsite location.

After changing settings(6), Tap the check button(7) to save changes.
