Issue

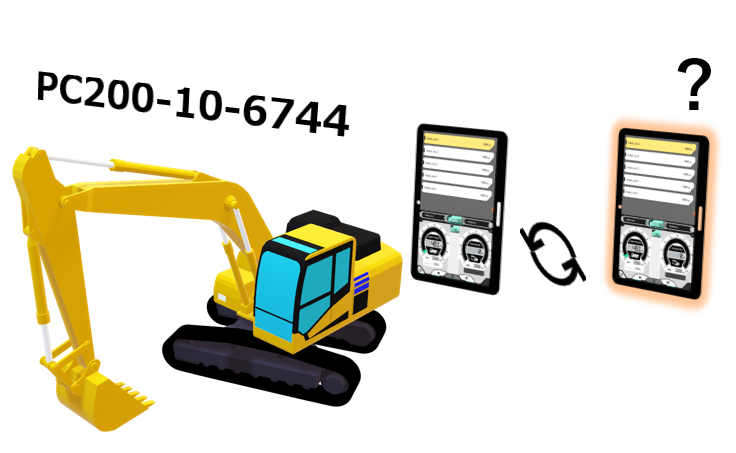

How to replace the tablet of Smart Construction 3D Machine Guidance.
How to deal

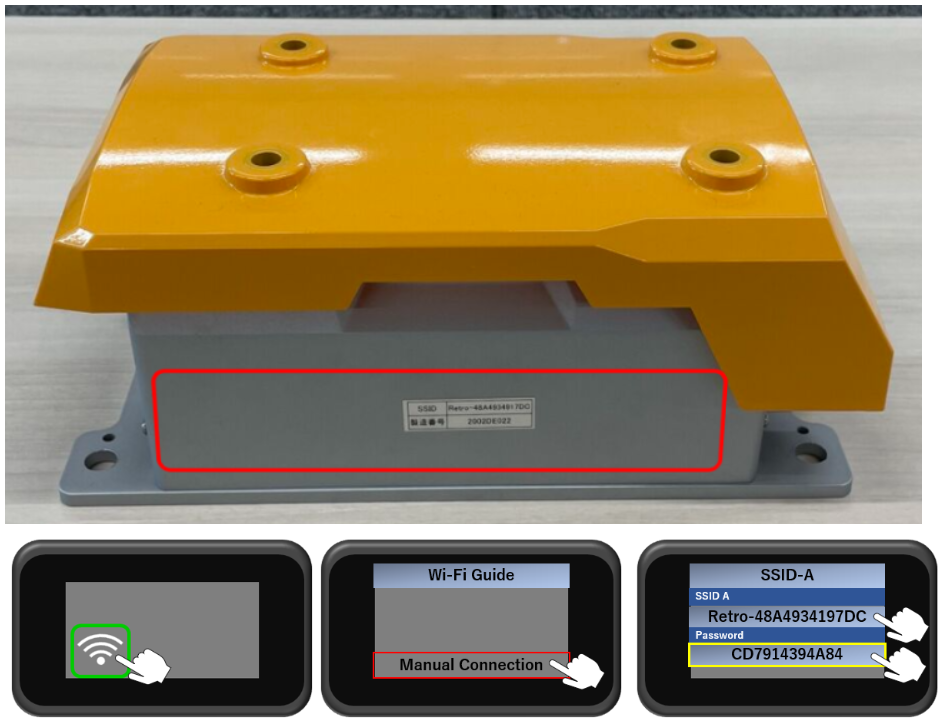

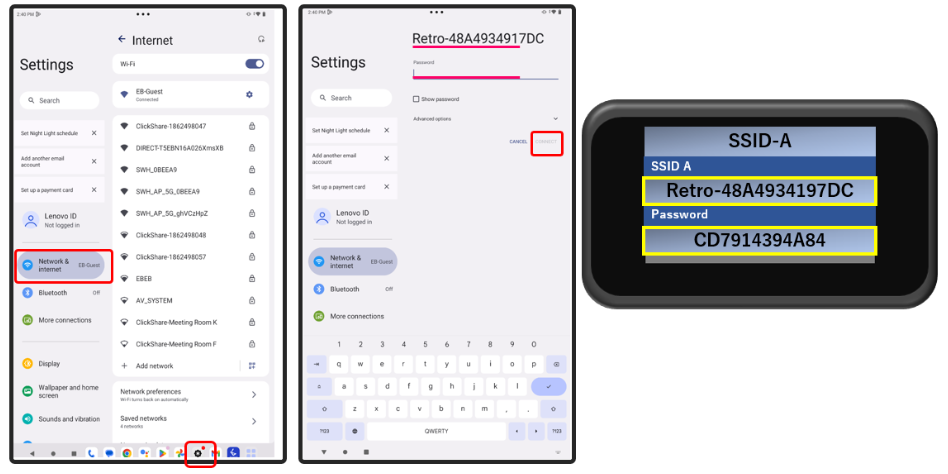

1) Set the Wi-Fi network connection of the new tablet to the target controller serial number "Retro-
48A*********".
2) Download the design data from the project file.
3) Check the accuracy of cutting edge is good or not.
Explanation
- The SSID is "Retro-48A*********" which is the same as the controller serial number.
PASS is set to "*********A84", which is a character string reading 48A backwards. - The vehicle calibration information, GNSS setting information (Ntrip setting, etc.) and bucket files are stored in the controller and will not be changed even if the tablet is replaced.
- Payload calibration information settings are saved in the controller if they are set in Ver.0.9.46 or later.
- The design data must be downloaded and set when the tablet is replaced.
serial number
