Issue
How to set up a bucket exchange when the machine is using a payload option.
Answer
Enter the bucket weight in the payload machine settings screen of the Smart Construction Pilot.
Explanation/How to deal
1)
- Open the Smart Construction Pilot app and open the Payload.

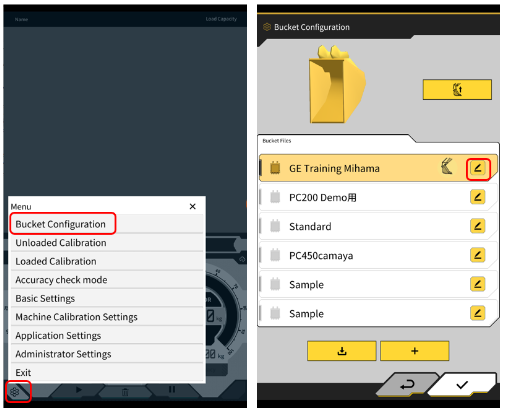

- Click the gear icon of menu and select the Bucket Configuration.
- Click the edit icon for the bucket you want to change.

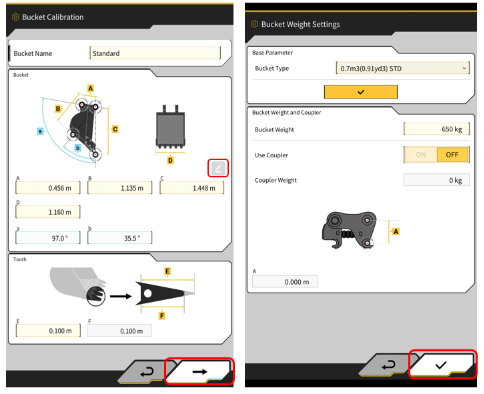

- Click the edit icon on the Bucket Calibration.
- After the edit icon is grayed out, press the arrow mark at the bottom right
- Select "Bucket Type" and press the "check" symbol below the bucket type on the Bucket Weight Settings.
-
If it is not in the category, enter the bucket weight yourself.
2)

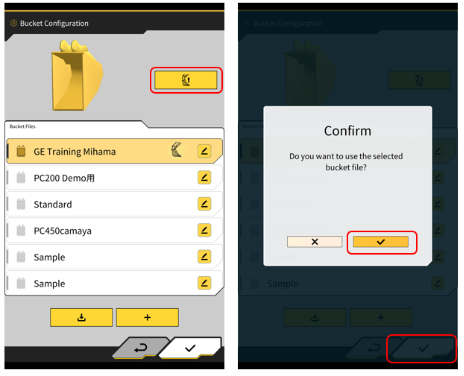

- Finally, select a bucket in the configuration screen and click on the "bucket set" icon.
Confirm and check the box to complete the exchange.
