Error message "Out of 3D design data range" is displayed.

Issue

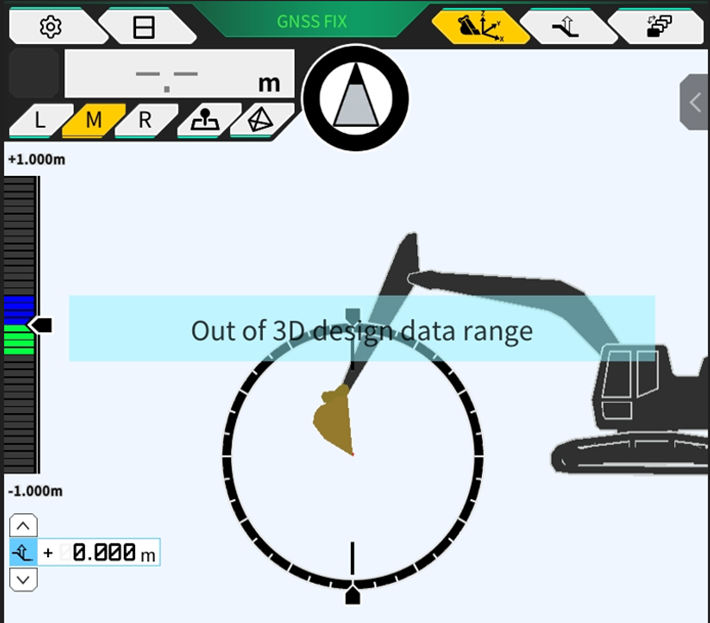

”Out of 3D design data range" is displayed.

Answer

The following review may improve the problem. Please check.

Simplified Table (Main Factors)

項目	Confirmation details
1. Check if the cutting edge position is outside the range of design data.	Check if the cutting edge position is within the range of design data.
2. Check if the wrong project file is selected.	Check if the correct project file (design data) is selected.
3. Check if offset is not applied	If matching is applied on the cutting edge accuracy screen, check if proper matching is set.
4.Check if the fixed station input coordinate setting is appropriate (In case of using fixed station)	Check if the fixed station input coordinates (latitude and longitude) are appropriate.

1. Is the cutting edge position outside the range of design data?

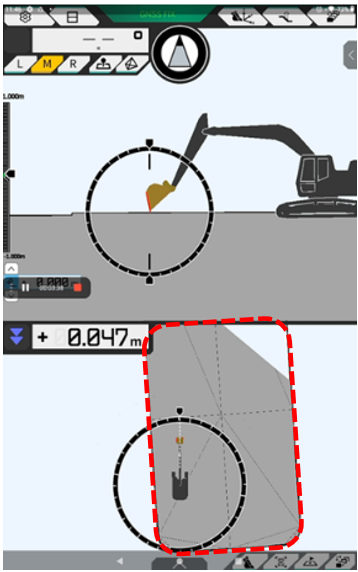

Check if the bucket cutting edge position is within the range of the design plane (within the red frame) as shown below.

2. Check if the wrong project file is selected.

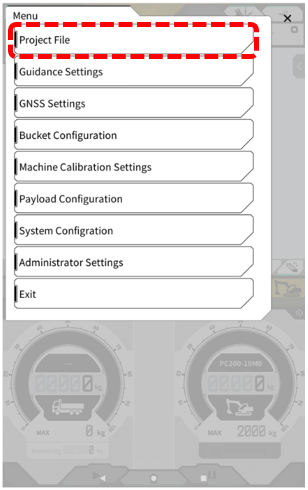

[Menu]→[Project File].

　　

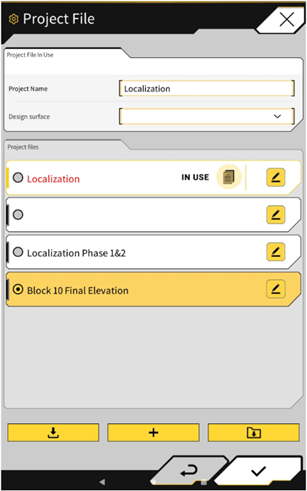

＊Check if the appropriate project file is set.

3. Check if offset is not applied

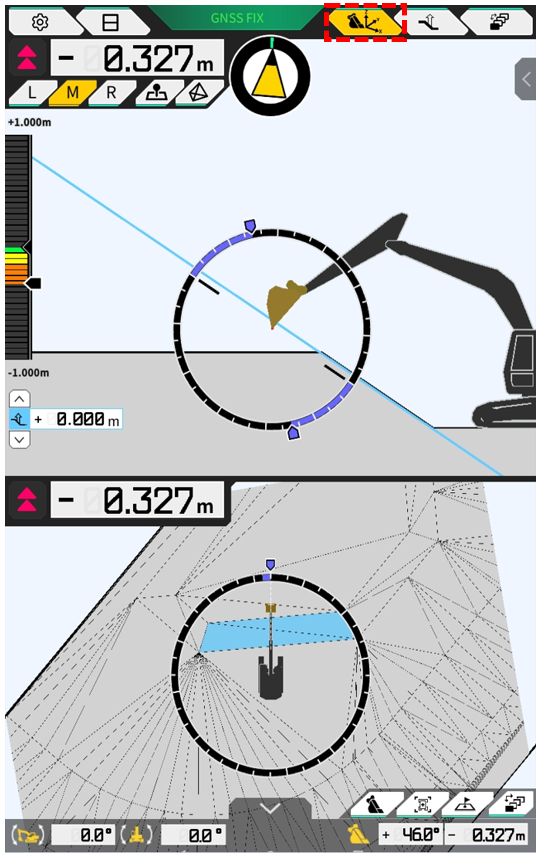

[Bucket icon at the top of the screen] or

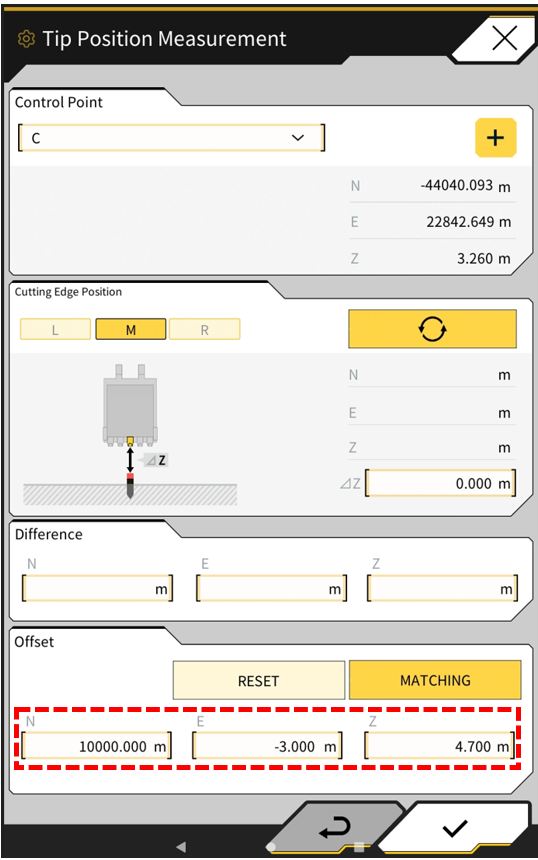

[Menu]→[Guidance Settings]→[Tip Position Measurement].

 　　

*If an unnecessary offset (matching) has been entered, please cancel it.

　⇒Tap the "Reset" icon and then touch the "✓" button to cancel the offset.

4.Check if the fixed station input coordinate setting is appropriate

(In case of using fixed station)

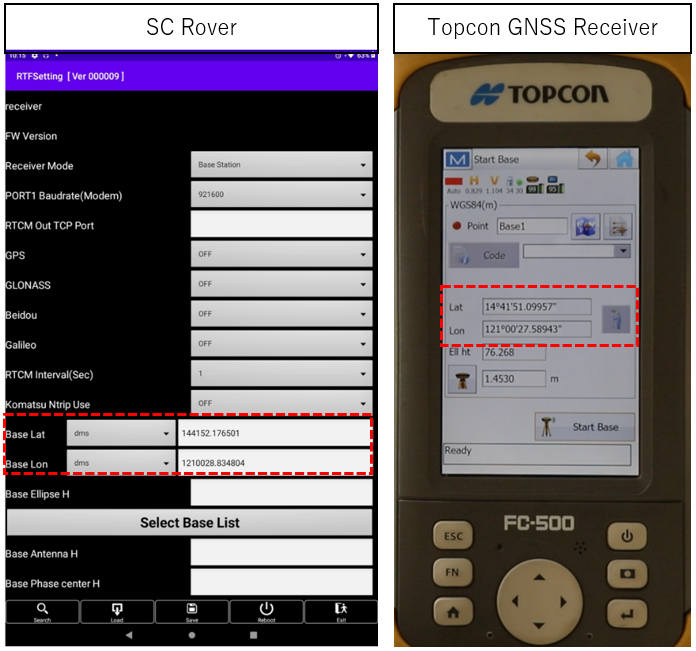

Please check if the input coordinates of the fixed station (SC Rover, Topcon GNSS Receiver, etc.) are correct.
