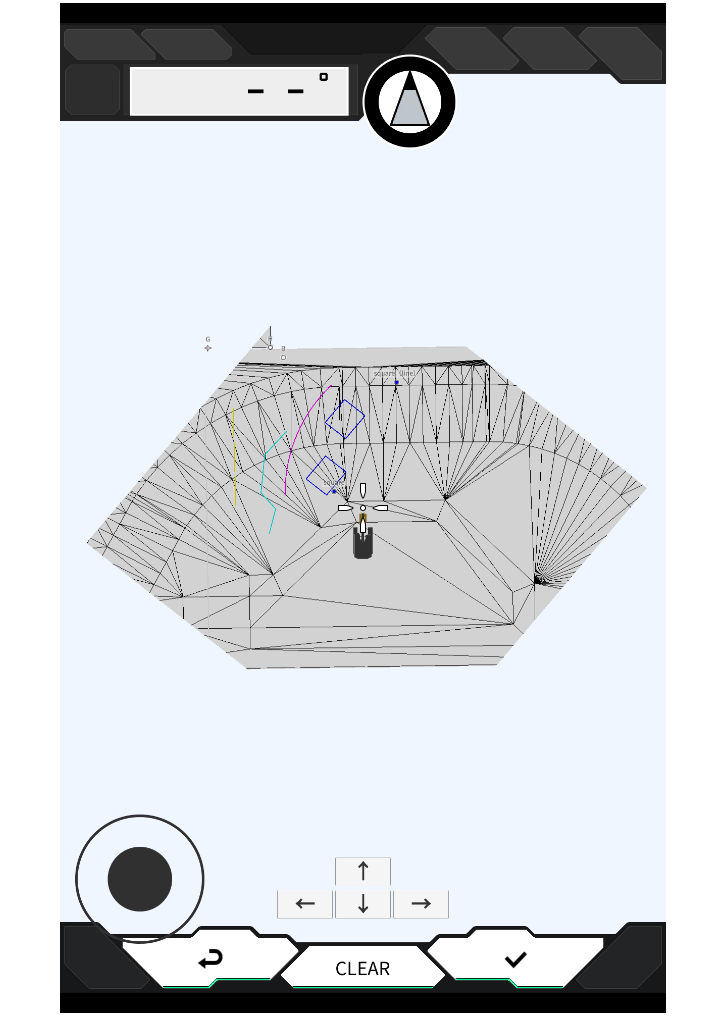

Only see a portion of the TIN data on the tablet screen.

Issue

Have selected design data for a project to be used in the field, but it seems that only a portion of the TIN data is displayed. Want to display all of it.

Answer/Cause

The rectangle is 60m x 60m, and since the data is narrowed down to 8 tiles centered on the location of vehicle (9 tiles total including the center), so it is not possible to display all the data. (The outer perimeter line will be displayed).

When the TINs are detailed or jobsite is in a vast site, displaying all of them would make the data too large and affect the operation. Therefore, the design data is clipped and tiled in a 20m x 20m rectangular area.

Action/How to deal

By moving the position of your vehicle, the TIN data in the area that was not displayed will also be displayed.
*It is also possible to move the vehicle in a pseudo manner by using the matching function.
