Tablet App v1.0.06.2 released

Smart Construction Pilot 1.0.06.2 Updates

On Wednesday, January 31, 2024, Smart Construction Pilot (tablet app) v1.0.06.2 will be released via Google Play.

1. Offset Boom Model compatibility

2. [3DMG Basic] Display Construction Width

3. Other updates and fixes

---

1. Offset Boom Model compatibility

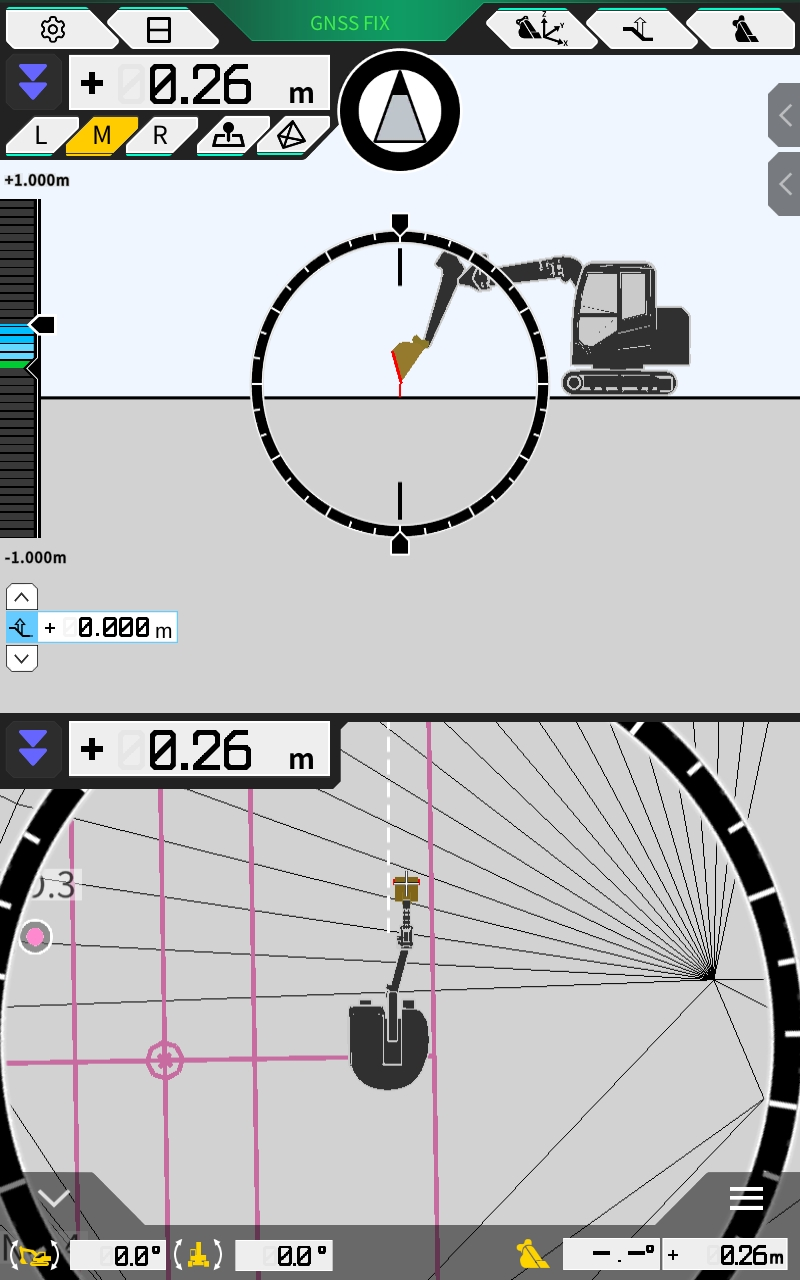

"Machine Guidance" now compatible with "Offset Boom" model.

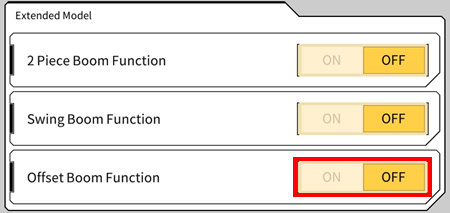

**Important**　 It is required to install the offset sensor when using an Offset Boom-model. * **Payload Meter is unavailable** for Offset Boom * Currently only **PC58UU is supported** for the function Please turn ON "Offset Boom Function" from Menu Guidance Settings Application Settings, then perform Machine Calibration. After Machine Calibration, perform Offset Sensor Calibration. *This function is available with controller firmware 2.0.3 or later

---

2. [3DMG Basic] Display Construction Width

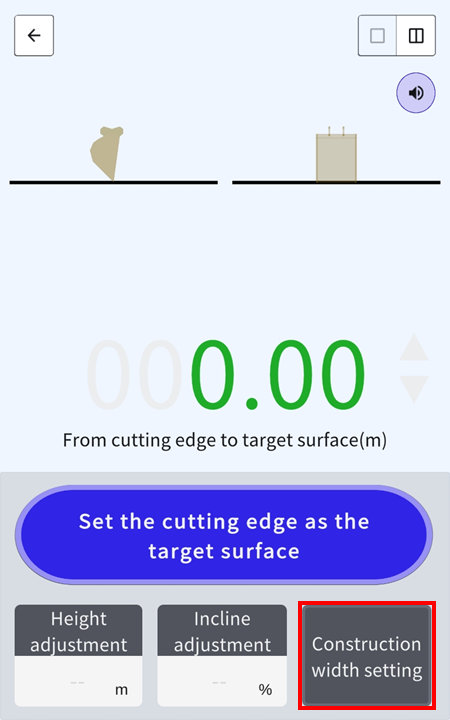

"3DMG Basic" now supports creation of construction width.

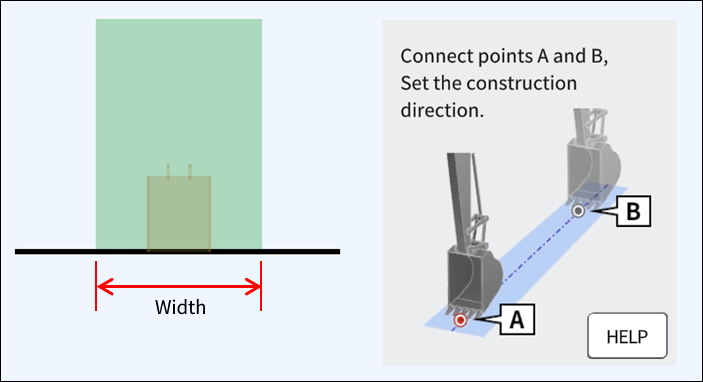

It is now available to set a construction width in 3DMG Basic. You can set "Width" and "Direction" by measuring two points at the bucket tip 　**Important**　 When setting the "Direction", measurement with the bucket can only be performed at the center of the bucket. Please use it in construction where confirmation of construction width is required, such as for pipelines.

---

3. Other updates and fixes

• Fixed a problem in which "No correction data" did not disappear.
  Error message "No correction data" doesn't disappear after the controller receives correction data.

• Fixed an issue where files such as .rpz in the tablet could not be accessed.
  In the case of Android 13, the app could not access files in the tablet.

• Fixed a problem in which unload calibration result is not reflected correctly
  If the weight of the bucket is set to be heavier than the actual weight and the Unload calibration is performed, the correction value B may become 0.

• Fixed an issue where the NE values are being reversed when measuring a topographic survey point.

• Fixed an issue where payload results were not sent to the server.

• Fixed an issue where the app took a long time to launch.

• Fixed an issue where design surfaces could not be selected or changed.

• Improved a logic for Swing Sensor Calibration.
