How to retrieve and view the body calibration file from the server.

Issue

How to retrieve and view the body calibration file from the server.

Answer/Cause

1) Where the body calibration file stored and how to download it.
2) How to view the body calibration file

Explanation/How to deal

1）Please follow the procedure below (see attached image)

• Open the web version of Smart Construction Pilot and open the detail screen of the machine for which you want to obtain a backup.

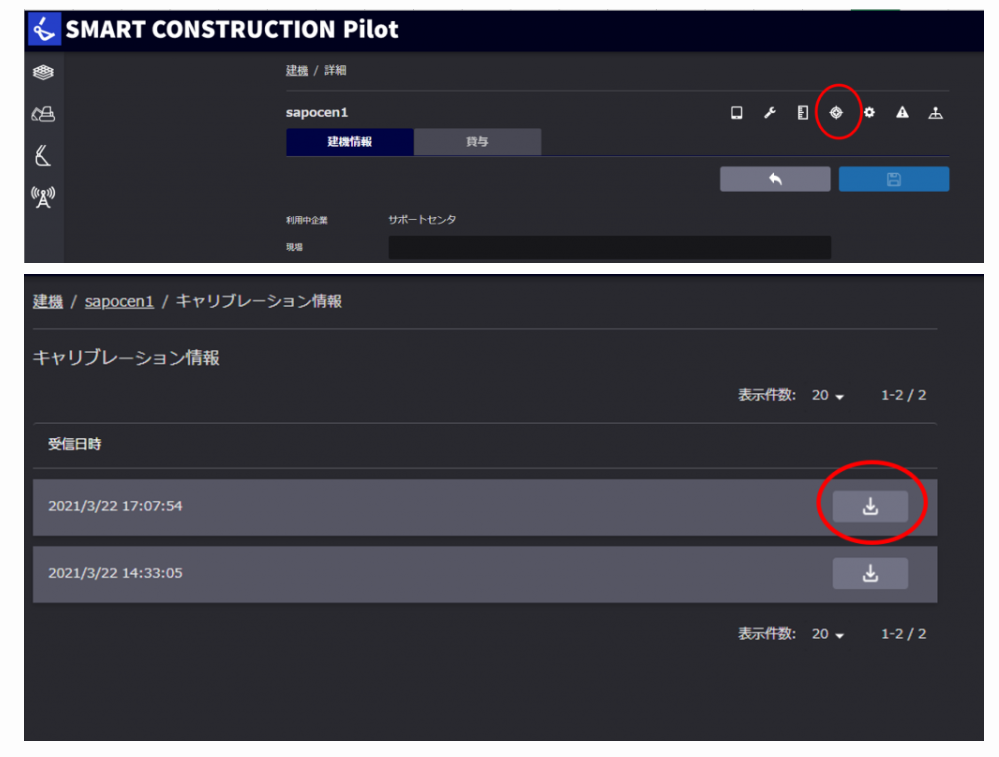

• Click the icon circled in red in the two images below to download the file with the most recent date and time.
• If a ".json" format file is downloaded, it is a success.

２）

• The ".json" file can be viewed and edited with a text editor.
• When you open the file, it looks like a list of alphanumeric characters, but the area between "machine_info" and "measured_values" is the important part for performing the cutting edge calculation.

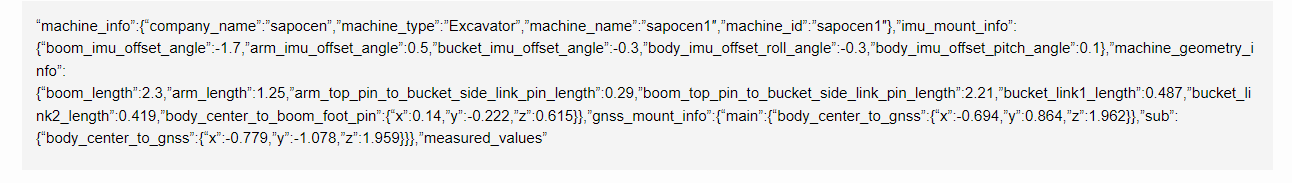

• An example is pasted below.
