How to import data used for Machine Guidance directly to the tablet

Issue

It can be imported the data for Smart Construction 3DMG directly into the tablet.

Case 1

This is a great option for those situations where there is no internet connection at the construction site and it is difficult to transfer project data from Pilot (Web).

Case 2
It is possible to download Pilot (Web) calibration data and import it into the tablet for restoration work.

Case 3
It can be used when you want to import the file of bucket file or created geo-fence data into the tablet.

Explanation/How to deal

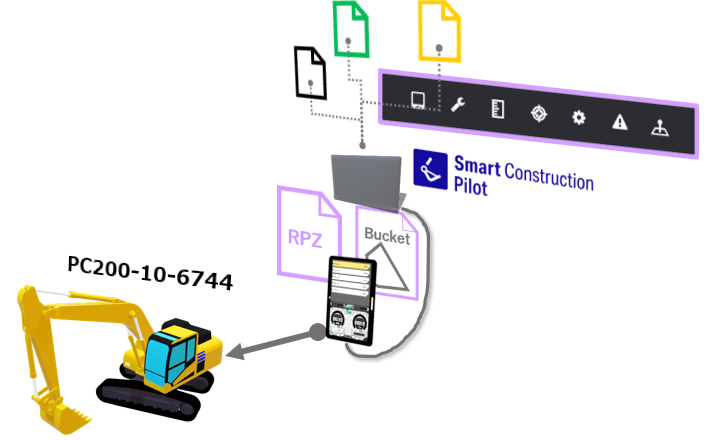

Design data【RPZ file by convert via pilot web】

1) How to download the RPZ file

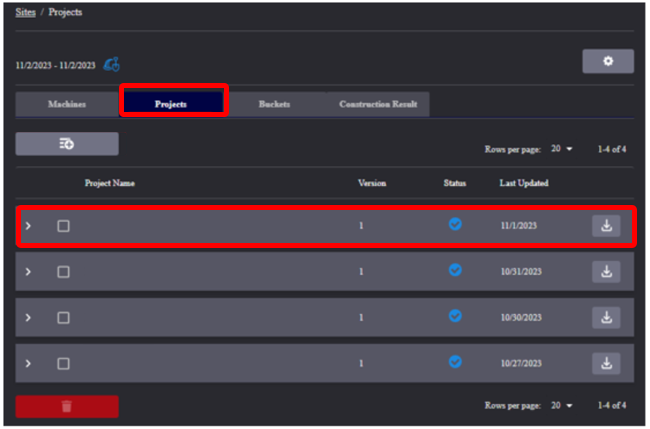

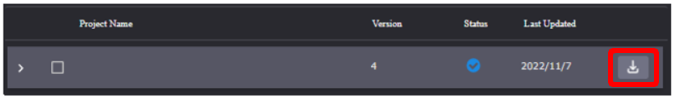

Select the jobsite from the WEB Pilot application and download the RPZ file containing the necessary design data from the project.

Download button


2) How to transfer and import RPZ files to tablets

Connect the tablet and PC with a USB cable

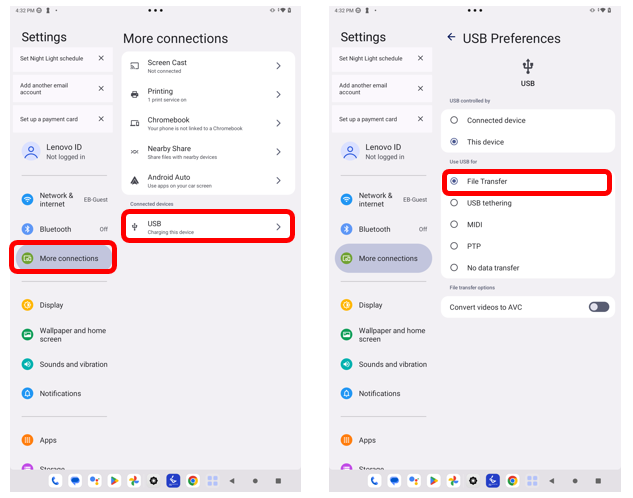

For USB connection, please select "File Transfer" in the "More connections" page in the tablet.
Please use a USB device that is capable of transferring data.

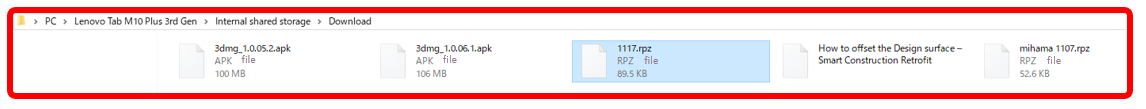

Import the RPZ file into the download folder.

Start 3DMG and select Menu.

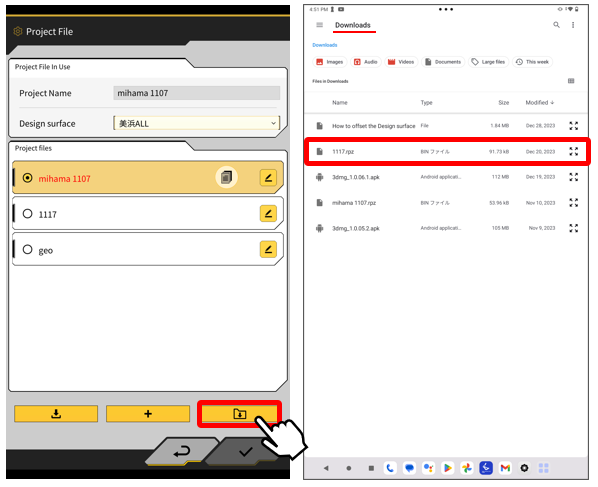

Choose a project file and tap the Download button to import the imported data.

Supplementation

Restoration using calibration files

The restoration of calibration information on the Pilot (Web) can be performed by importing the calibration data into the download file.

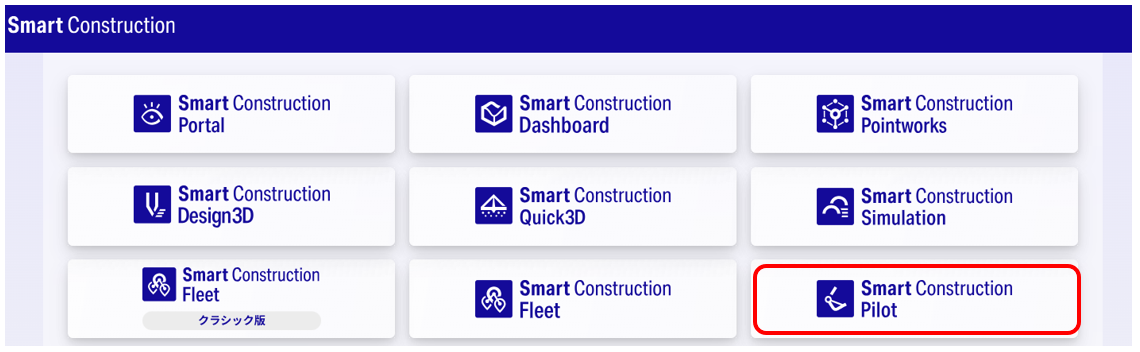

1. Select "Smart Construction Pilot" on the Customer portal.

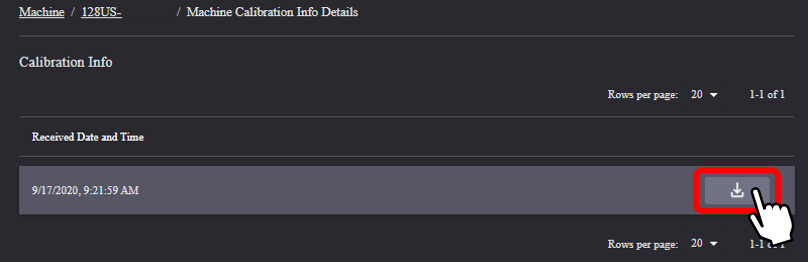

2. Click the machine icon in the side menu, select the target machine, and then click the calibration information icon (see the capture below) to download.

3. Access the “Download” page by referring to the “2) How to transfer and import RPZ files to tablets” and import data.

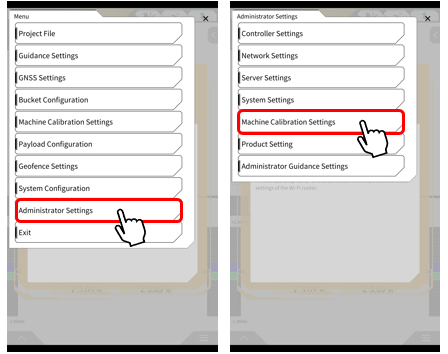

4. Tap “Administrator Settings” on the menu in the tablet app, “Machine Calibration Settings”, and “Machine Calibration Restore”.

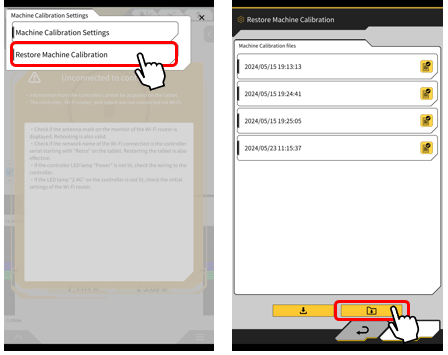

Select the folder icon and choose the downloaded file and tap the icon () on the right edge.

How to import bucket file and geofence data

Bucket files and geofence data can be used by importing them to the specified folder, not to the download folder in the tablet.

Bucket data

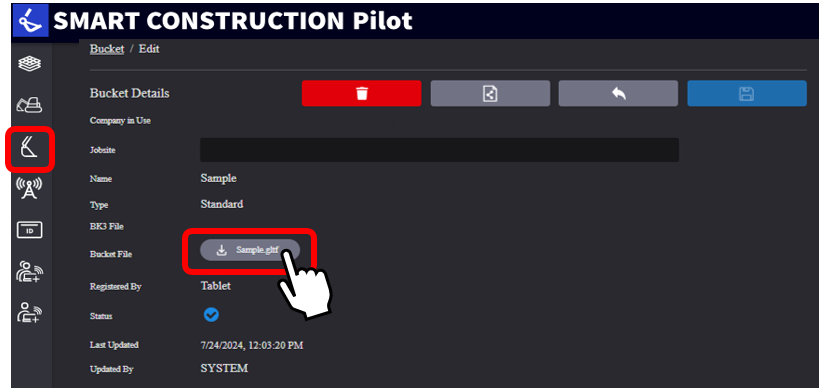

1) From Pilot (Web), click on the bucket icon, select the bucket you want to import, and then click on the data in the ”Bucket Details” to download the file.


Geo-fence data

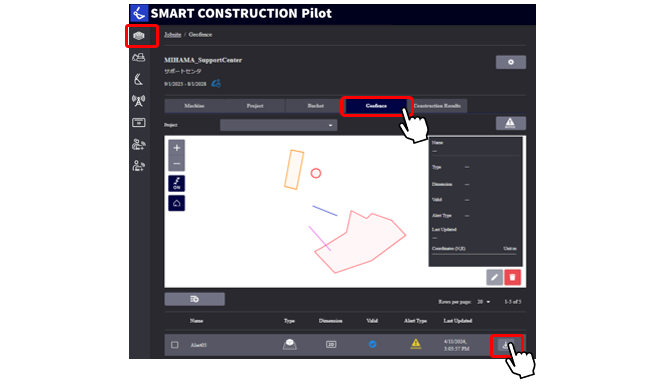

2)From Pilot (Web), enter the project page, click on the Geofence tab, and import the geofence data you have created.
Each data will be stored in the tablet in the following locations

Bucket file

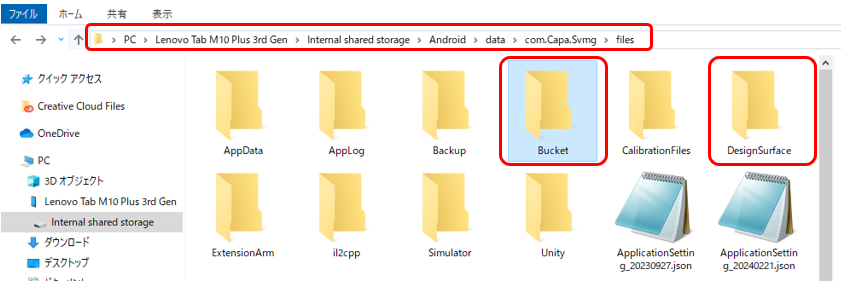

Lenovo tab / Android/ data / com.Capa svmg / files /Bucket

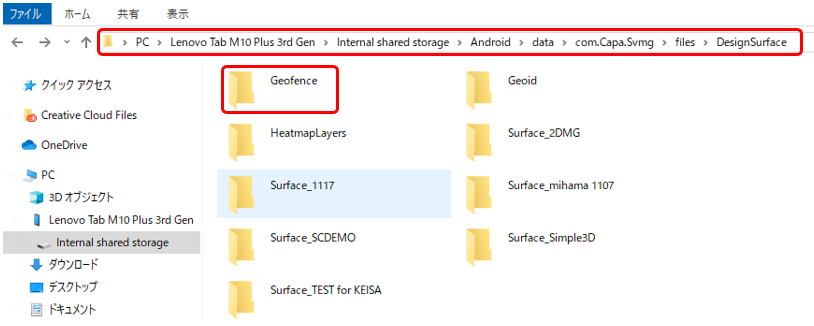

Geo-fence data

Lenovo tab / Android/ data / com.Capa svmg / files /DesingSurface /Geofence

•

•
