How to set up the project data for work

Introduction

This article provides a detailed explanation on how to set up design data into a 3DMG construction machine.
You can download and import data created by the manager or utilize data created in a simplified manner.

Procedures and Explanation

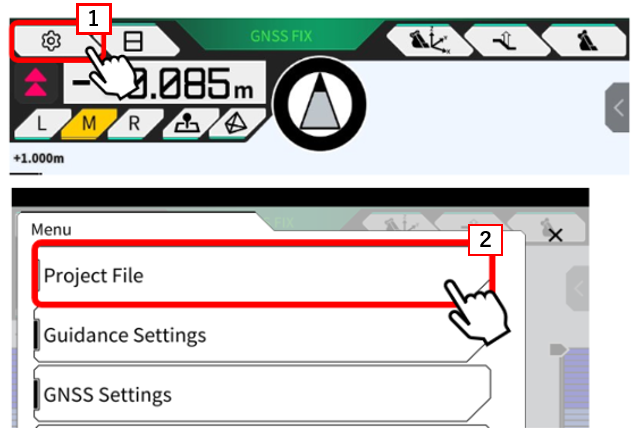

1. Select 【"1"the gear mark】 and choose 【"2" Project file】.

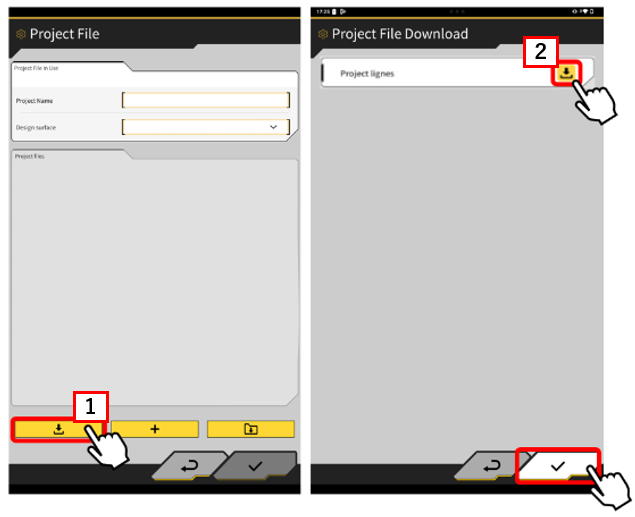

2. Download the transferred file
Tap 【"1"the Download button】 and 【"2"download】 the transferred design data from the management application (Pilot WEB).
*Internet connection is required for downloading.

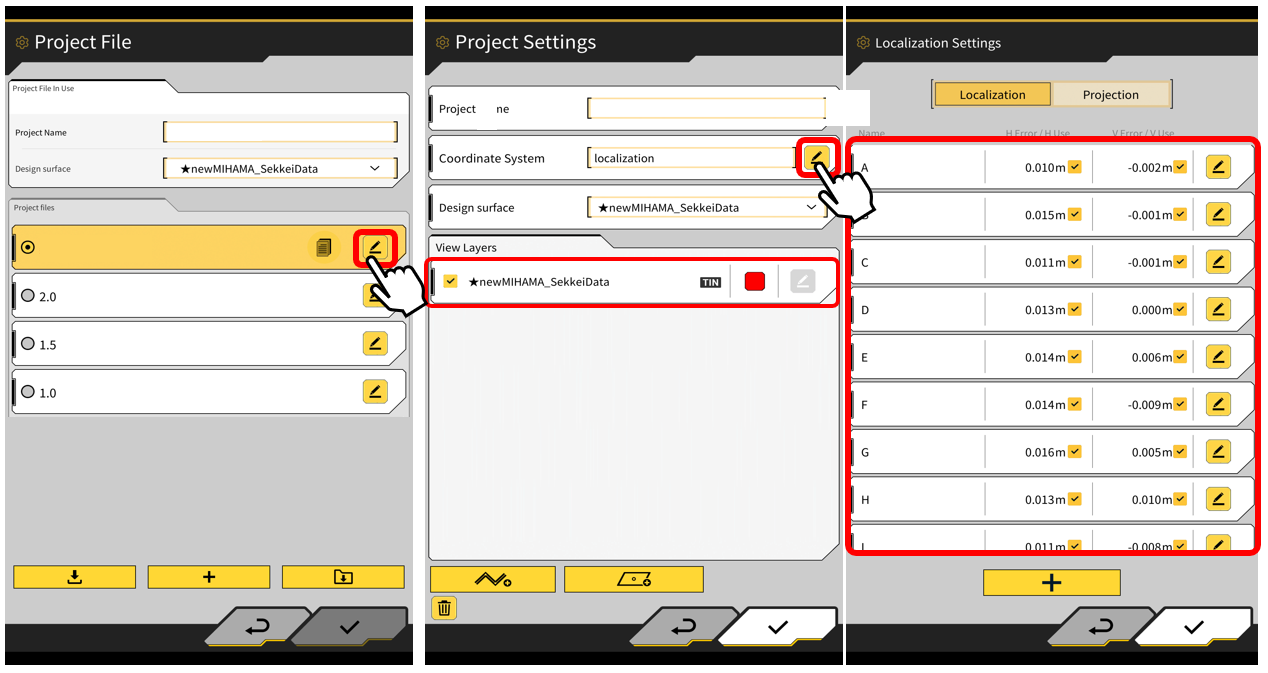

3. After setting, check the data and confirm whether localization is configured before use.

Supplementation

Change data layer

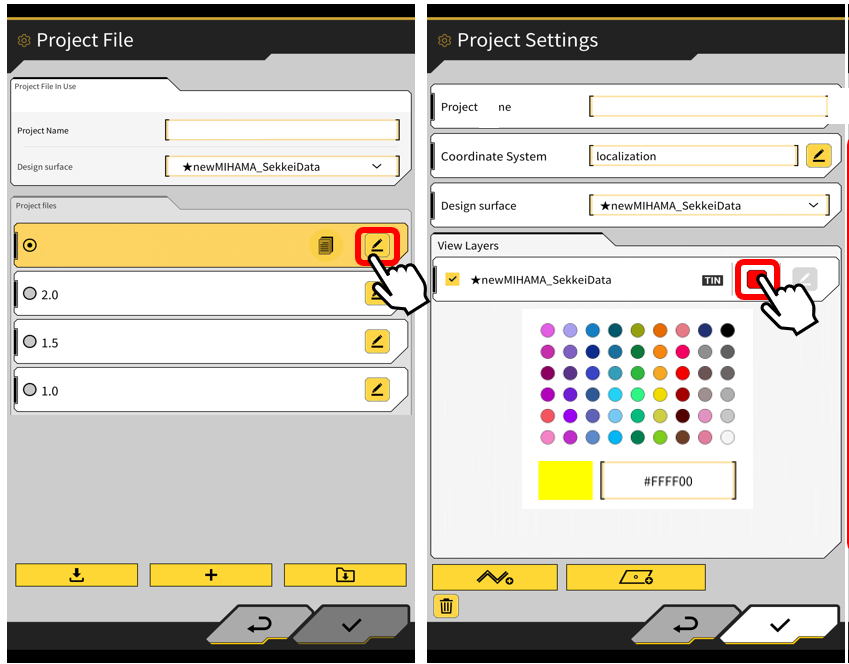

The color of the imported data layer can be changed by editing (TIN/Line).

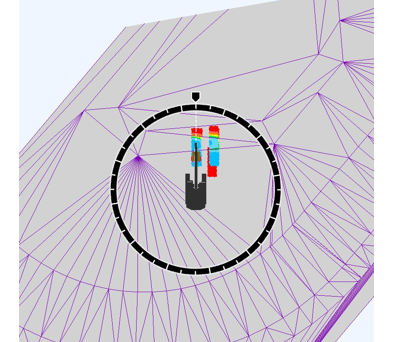

Example
