How to switch to External Radio mode (Fixed base station)

Introduction

This article provides a detailed explanation on how to use of digital radio equipment to obtain correction information.

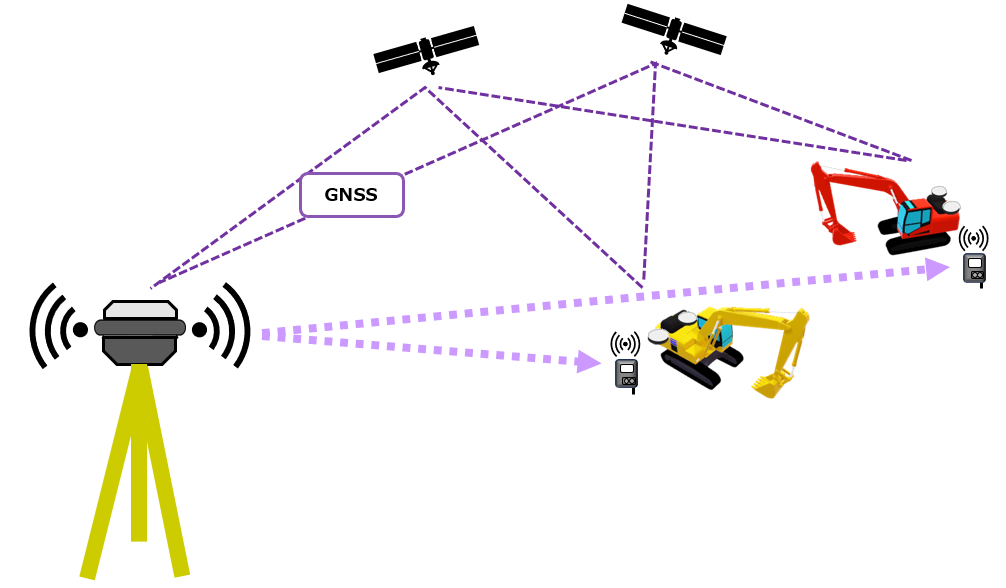

Using digital radio equipment, the antenna location information of base stations and 3DMG construction machine can be used for construction.

Procedures and Explanation

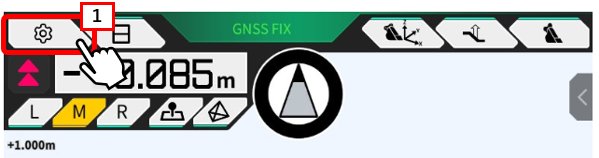

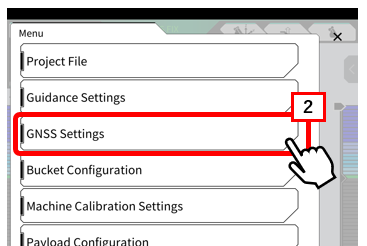

1. Select 【"1"the gear mark】 and choose  【"2"GNSS Settings】 from the menu.

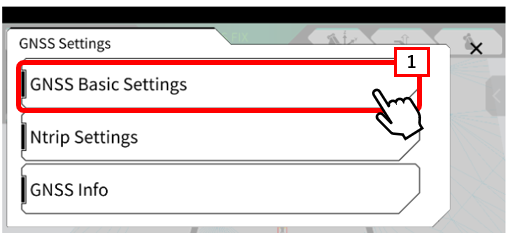

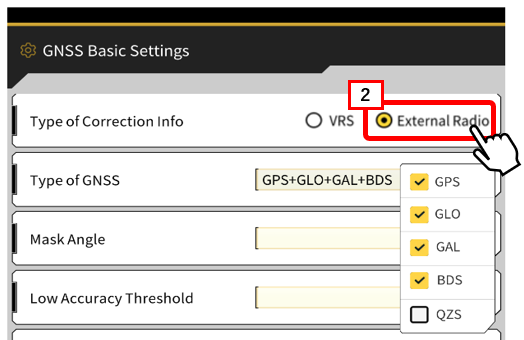

2. Select 【"1"GNSS Basic Settings】and  choose【"2" "External Radio"】 for the correction information type in the GNSS Basic Settings.

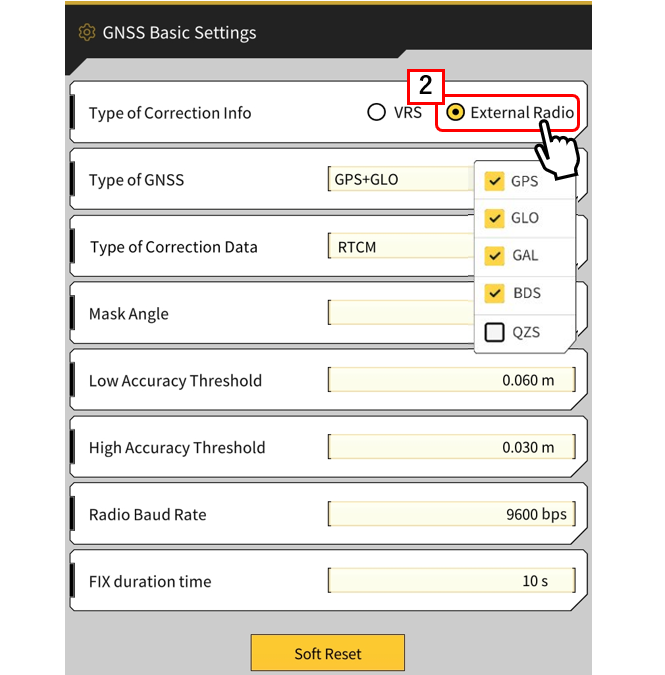

3. Select the same correction data type as the base station, tune the radio to the channel, and receive the correction information.
*If the controller firmware is up-to-date, you can also select CMR/CMR+ for the correction data type.

Supplementation

To receive correction information from a digital radio

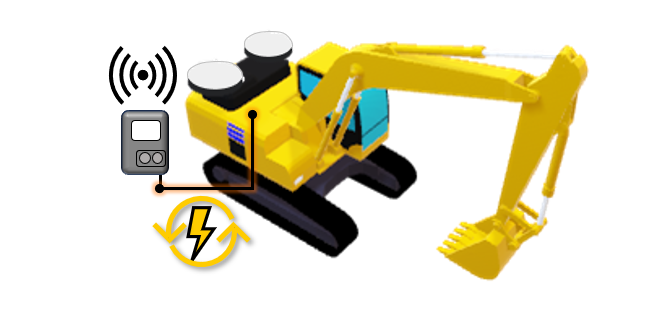

A harness cable connecting the receiver to the 3DMG construction machine is required to receive correction information from the installed base station.
*Please contact your local distributor to purchase a harness cable.

When using a digital radio, it is necessary to match the channel of the radio used between the base station and the 3DMG construction equipment at the time of delivery.

Attention

Be sure to check the power supplied by the machine and the voltage received by the radio device.
In some cases, overvoltage may occur, leading to device failure.

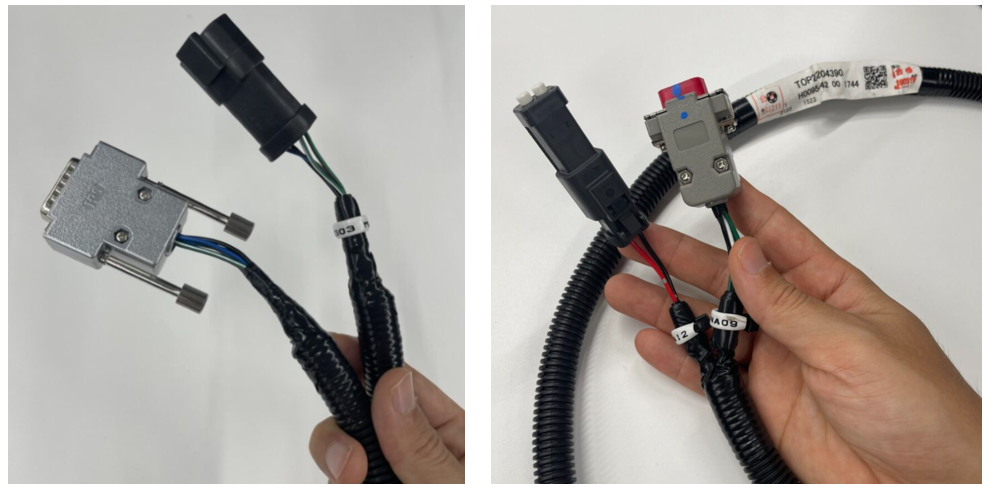

Harness cable for connecting radio equipment(Varies depending on the country)
