How to create and transfer data files for 3DMG machine

Introduction

This article provides a detailed explanation on how to create and transfer a construction data file for use on a 3DMG construction machine.
The created construction data file can be transferred to your 3DMG machine via the Internet.

Procedures and Explanation

Features of Pilot Web Application

Combine various file data to create and transfer files dedicated to 3DMG


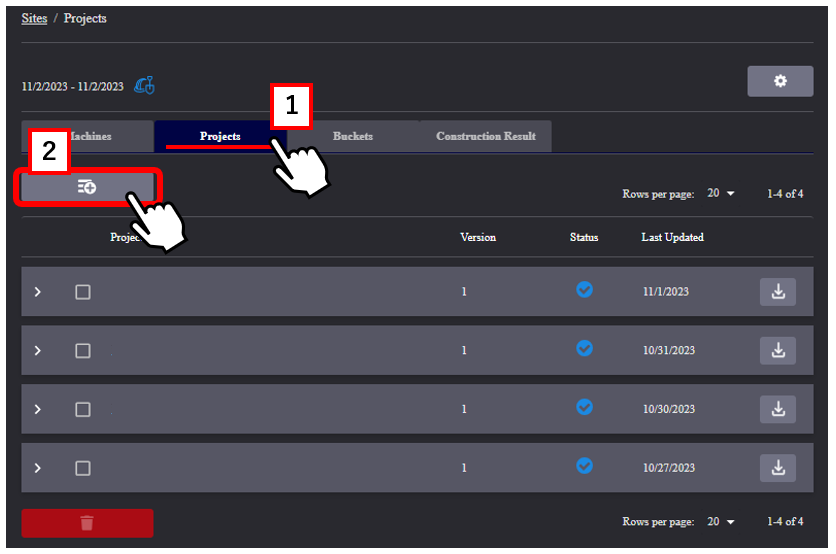

1. Click on 【”1"Project】 and click on 【”2"the new button】.

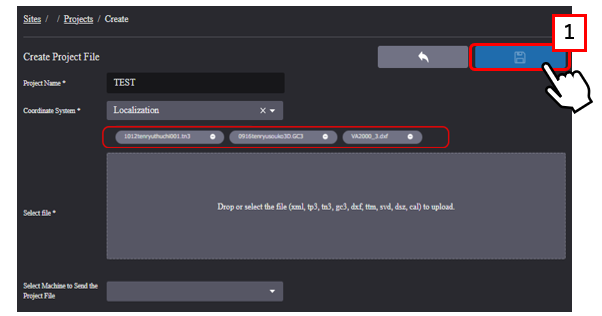

1) If you have a localization file, select the coordinate system type Localization, upload the construction data, and click 【"1"Save】.

Example
Localization file: Cal file (Trimble)
Construction data: landxml file (common extension)
Construction data: tn3 file (Topcon)

*If the construction machine to which the project data is sent is specified, the transferred data is notified to the construction machine side and can be set in the project data.

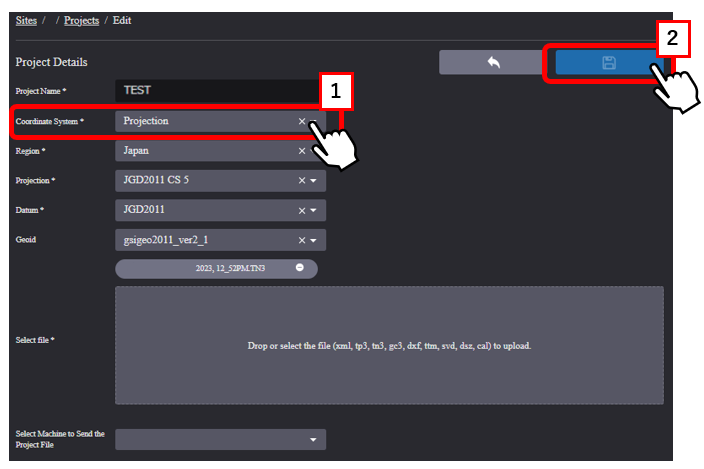

1') If you do not have a localization file, select "projection" for the 【”1"Coordinate System】, set the coordinate system and geoid according to the area to be constructed, upload the construction data, and click 【”2"Save】.

Supplementation

・Editing the project file
Click on the created project again to add data, etc.

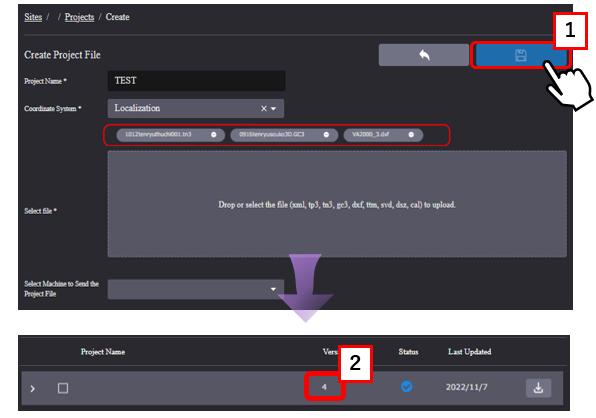

【”1"After saving】, 【”2"the number of times】 the project has been edited can be checked from the list.

・How to transfer data directly to a tablet

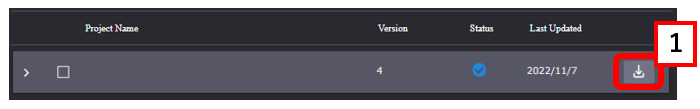

You can output a dedicated file [RPZ file] generated from 【”1"the download】 button and import it to the download folder in your tablet via USB cable.

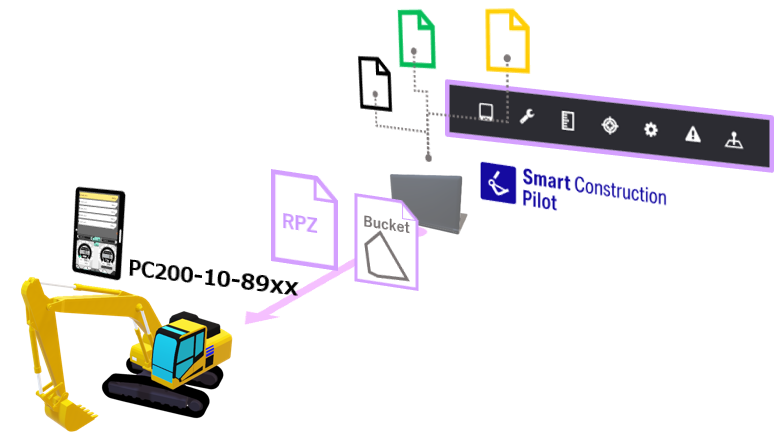

How to get the RZP file and forward it to the tablet.
