Tablet App v1.0.08 released

On Wednesday, June 19, 2024, Smart Construction Pilot (tablet app) v1.0.08 will be released via Google Play.

Smart Construction Pilot 1.0.08 Updates

1. Added Antenna Position Calibration

2. Changed the side panel to a shortcut menu

3. File export function for machine calibration

4. Added color settings for numerical value display area in Section View

5. Other updates and fixes

---

1. Added Antenna Position Calibration

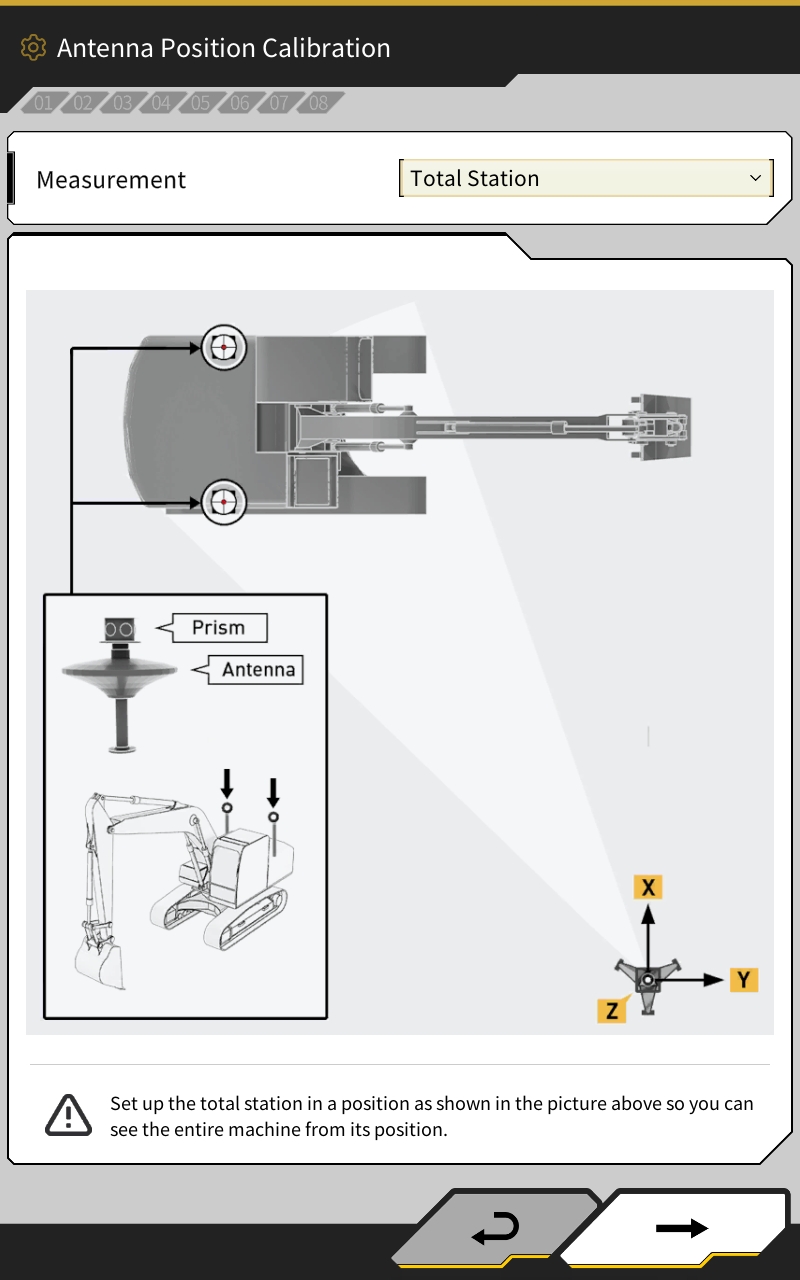

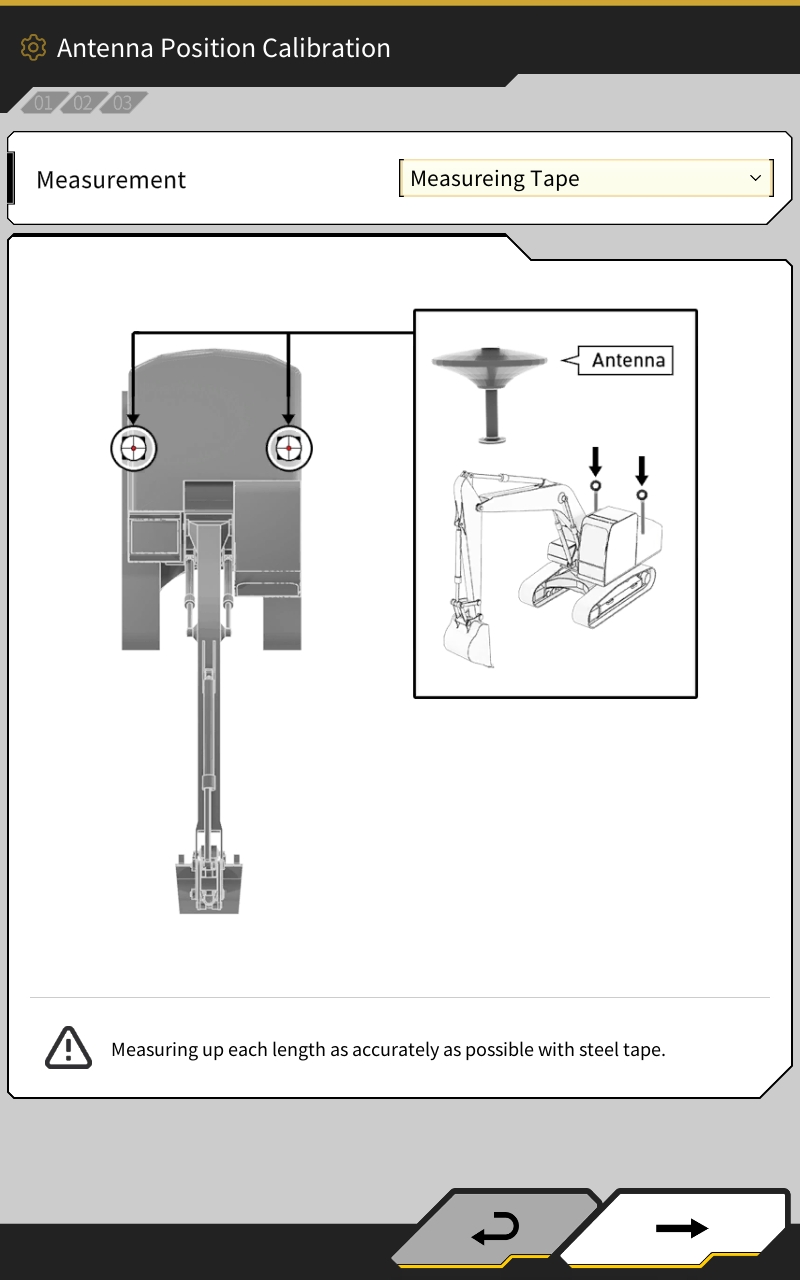

Antenna Position Calibration function has been added to Individual Calibration. Measure the antenna mounting position using a tape measure or total station.

Important　 The antenna mounting position greatly affects the accuracy of the bucket tip position. When measuring with a tape measure, please measure each length as accurately as possible. This menu can be accessed from: Menu>Machine Calibration Settings> Individutal Calibrations>Antenna Position Calibration

---

2. Changed the side panel to a shortcut menu

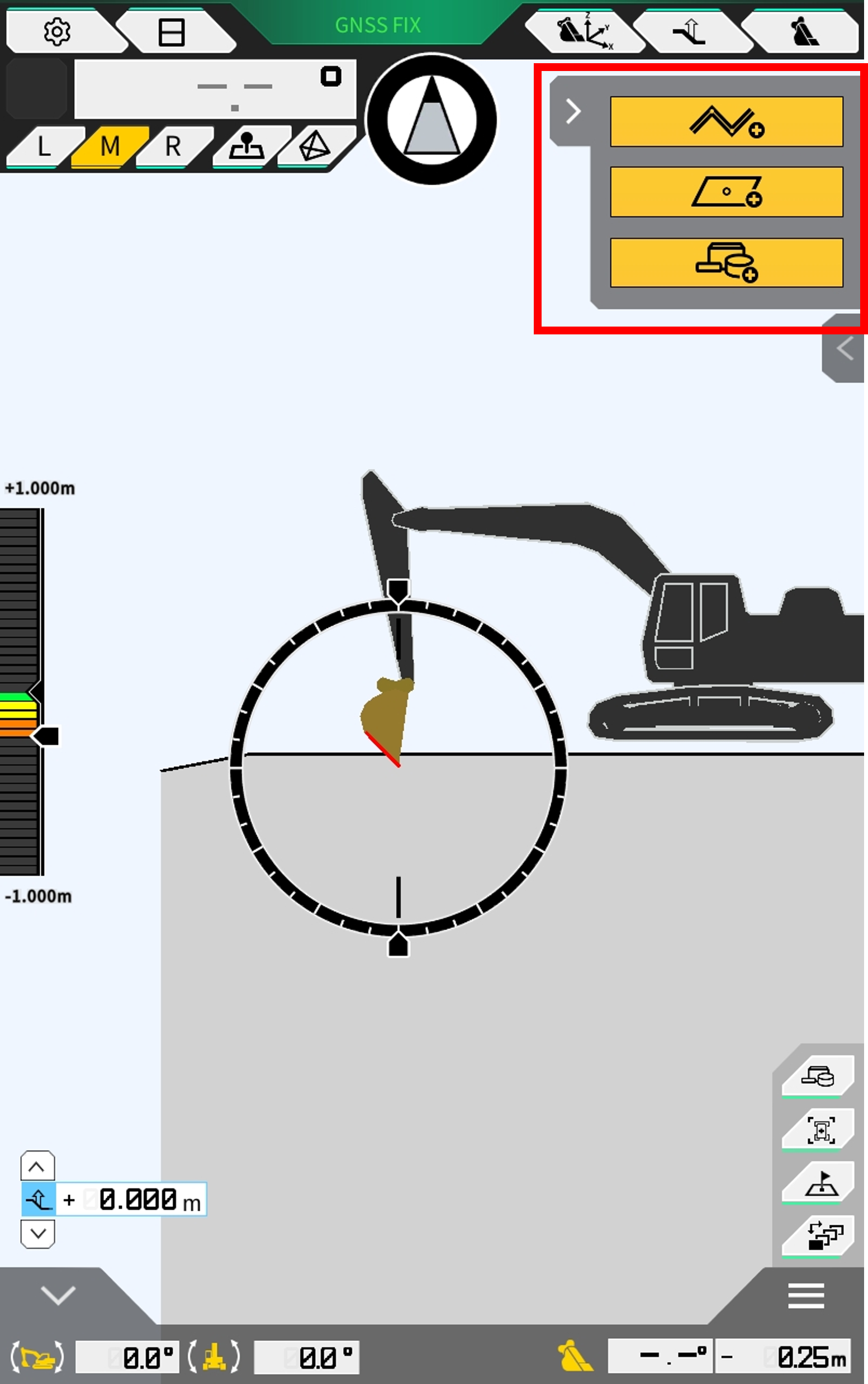

A shortcut menu has been added to the side panel of the machine guidance screen.
You can move directly to screens "Create Design Surface" from linework, "Create Simple Design Surface" and "Create New Geofence".

Create Design Surface 　Create Simple Design Surface 　Create New Geofence 　Important　 "Create New Geofence" shortcut is displayed when "Geofence" is turned on. "Compass", "Grade Indicator", and "Operation Indicator" settings have been moved to Application Settings.

---

3. File export function for machine calibration

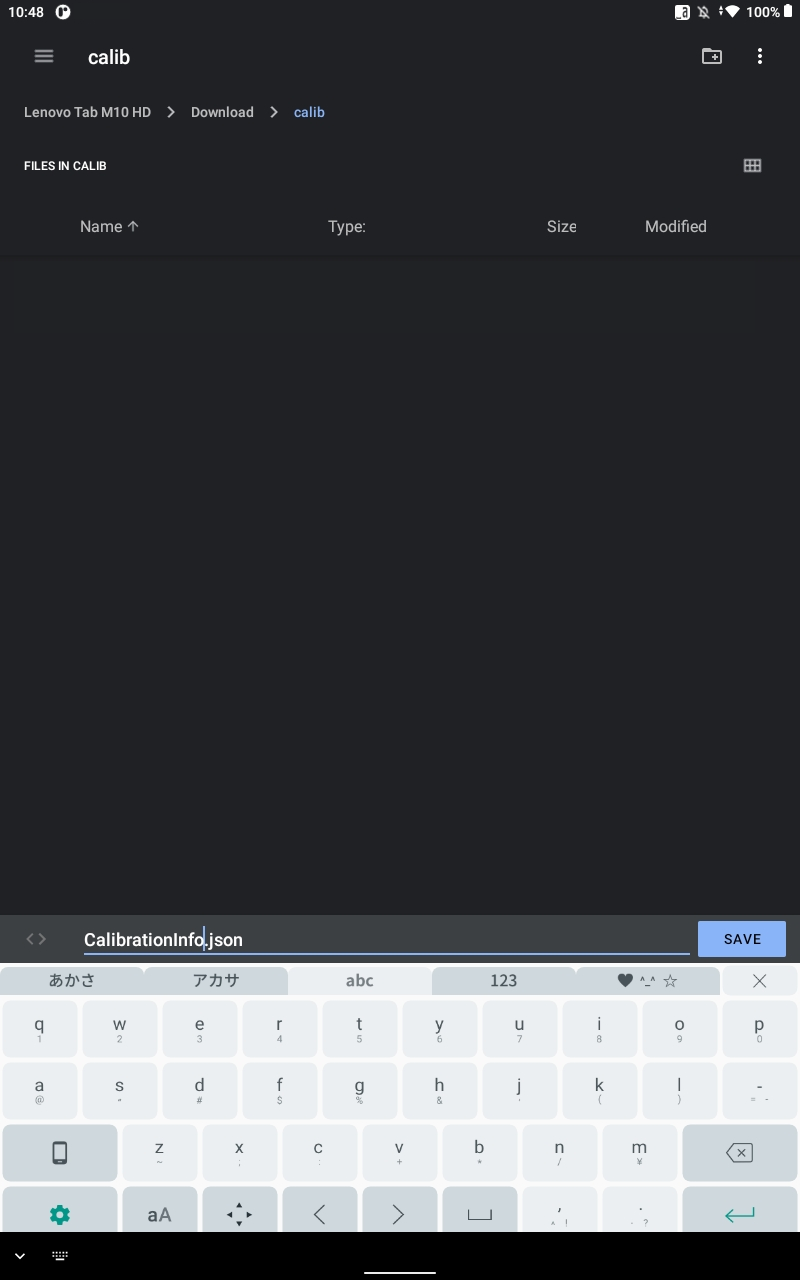

Machine calibration results can now be saved on an external device such as SD card or to a tablet.

⇒

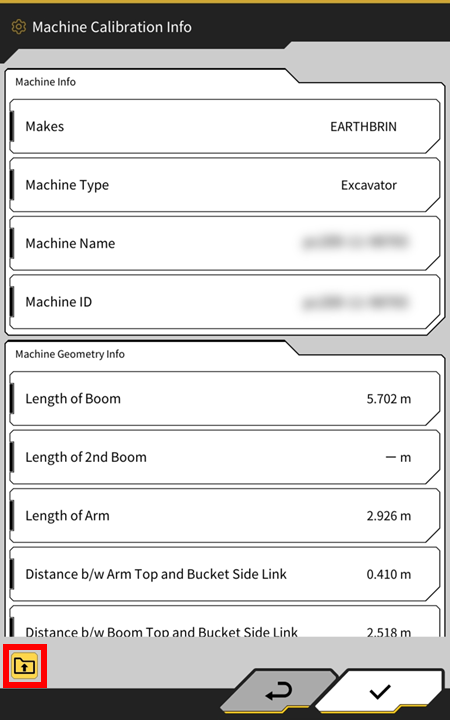

You can save the file by tapping the button  at the bottom left of Machine Calibration Info screen.

---

4. Added color settings for numerical value display area in Section View

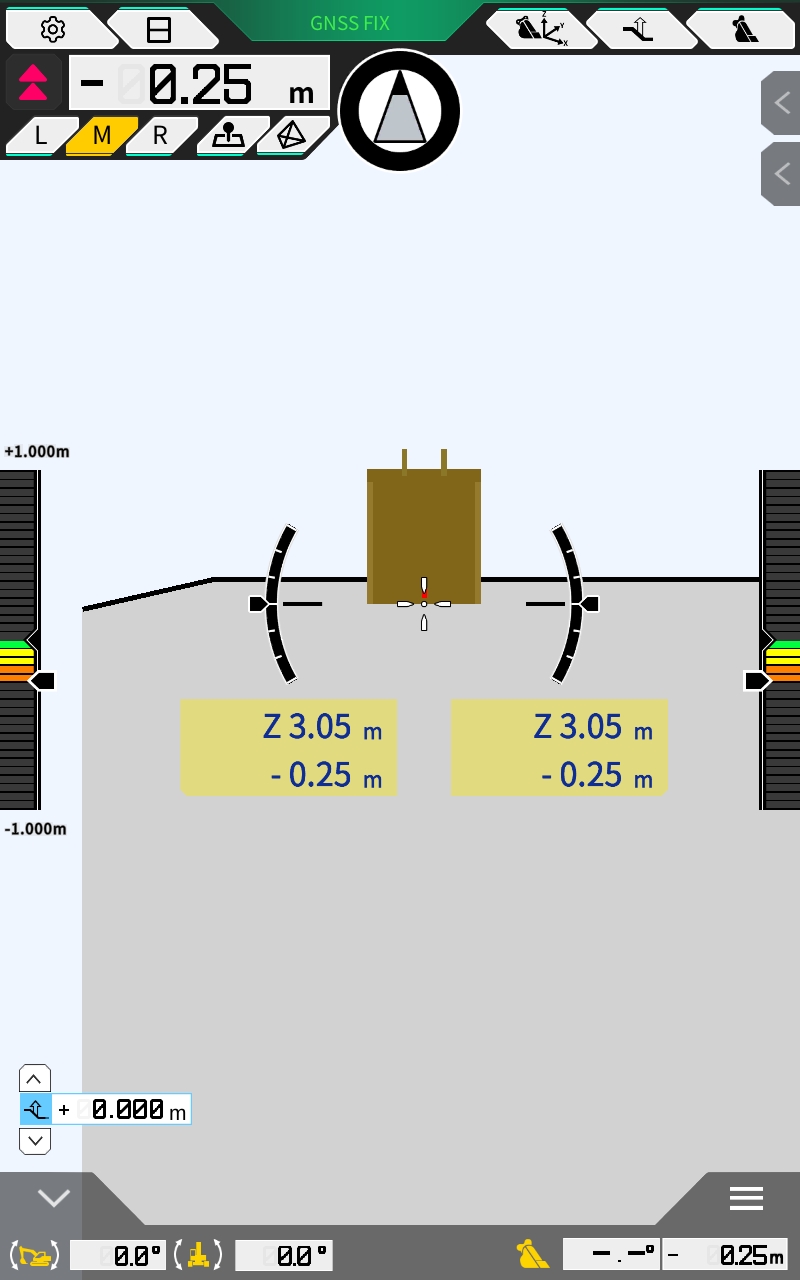

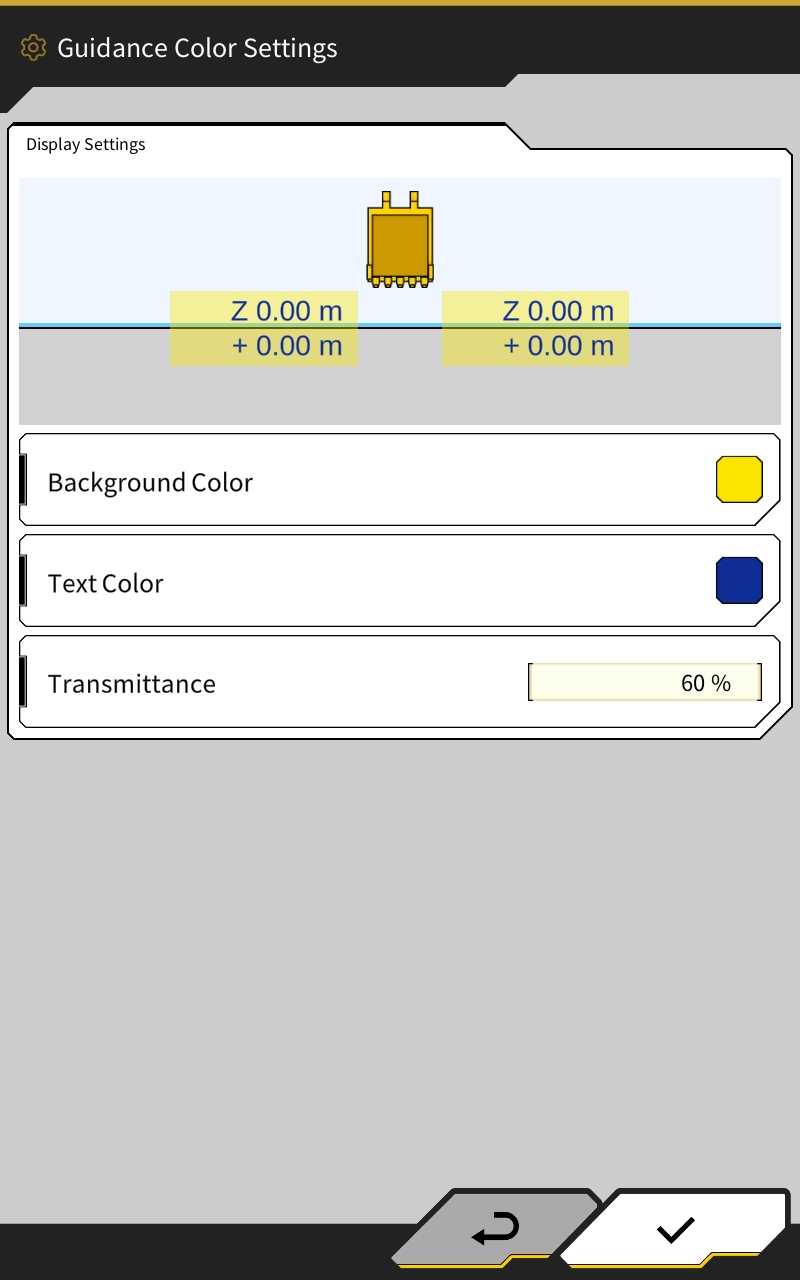

It is now possible to set the text color, background color, and transparency of the altitude box in the section view for seeing the design surface more easily.

		⇒

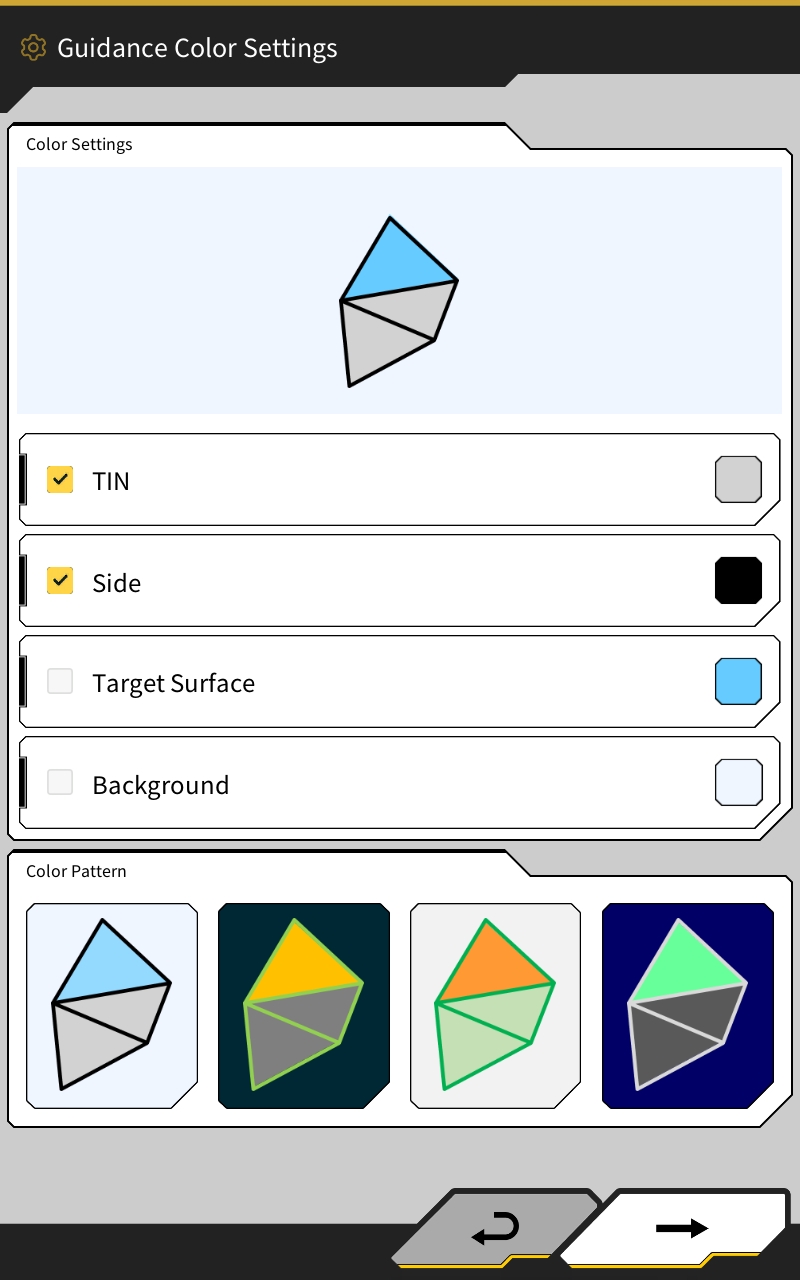

Section View	This settings can be accessed from: Manu>Guidance Settings>Guidance Color Settings

---

5. Other updates and fixes

• Added distance between antennas to Machine Calibration Info

• [Machine Guidance] Change the order of priority for displaying GNSS error messages

High ↑ ↓ Low	GNSS ERROR	⇒	GNSS ERROR
	GNSS FIX NOT VALID		GNSS FIX NOT VALID
	GNSS HEADING UNUSABLE		{0} AWAY FROM BASE STATION
	GNSS FLOAT		GNSS FLOAT
	{0} AWAY FROM BASE STATION		GNSS HEADING UNUSABLE

• [Machine Guidance] Changed the settings for Ntrip V1/V2 from Ntrip Settings in GNSS Settings to Network Settings in System Configuration

• [Machine Guidance] Changed of 3D model for swing boom model

• [Machine Guidance] Fixed an issue where design data was displayed even out of the design data range in Section View.

• [Machine Guidance] Fixed an issue where the operation indicator in Section View was not working when Target Surface Extension setting was OFF.

• [Payload] Changed the pass/fail judgment for unloaded calibration to the criteria for each machine class.

• [Geofence] Fixed an issue where the sound set in A/B of collision detection angle and body area would play at unexpected timing.
