Tablet App v1.0.12 will be released

On Wednesday, 1st October , 2025, Smart Construction Pilot (tablet app) v1.0.12 will be released via Google Play.

Smart Construction Pilot 1.0.12 Updates

1. Create a polyline from measured points

2. Heatmap colors reflecting the applied offset

3. Added "Min Dist" option to bucket position selection

4. Color settings for the machine and bucket

5. Displayed an indicator for boom raising speed

6. Other updates and fixes

---

1. Create a polyline from measured points

Polylines can now be created from points measured with the bucket edge or from entered coordinate values.
The created polylines can be used in functions such as creating a design surface from linework and in the steer indicator function.

You can access the creation screen in two ways:   Menu - Project File - (Project Edit) - (Create Polyline) Side Panel - (Create Polyline) Please refer to the manual for details on the creation method. Important Notes   Polylines created in the app can only be used on the tablet where they were created.

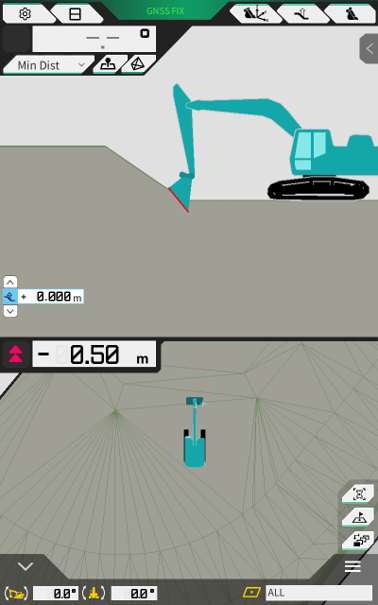

Create Polyline	Displaying created polylines on the guidance screen

---

2. Heatmap colors reflecting the applied offset

Heatmap colors now reflect differences considering design surface offsets.

Previously, even if the design surface was offset, the heatmap displayed differences from the pre-offset design surface. It has been improved to display differences from the post-offset design surface. When the design surface offset value is changed, the heatmap coloring switches to reflect the new offset.

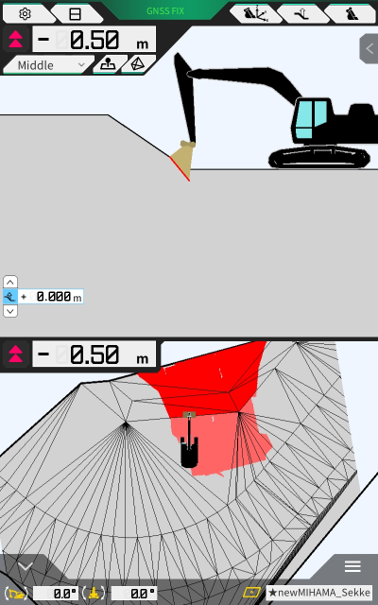

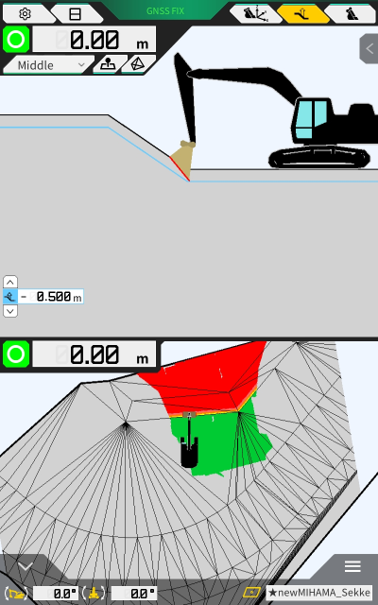

Without design surface offset   The colored area is all constructed at the same height	With design surface offset (-0.5m lower)   The heatmap coloring switches according to the offset height

---

3. Added "Min Dist" option to bucket position selection

A new setting (Min Dist) has been added to follow the bucket edge position with the minimum distance to the design surface.

When "Min Dist" is selected, the display always switches to the bucket position (Left, Middle, or Right) with the minimum distance to the design surface.

This can be switched in the machine guidance screen.

Important Notes


• Only the cross icon for the bucket position and the red line from the bucket to the design surface will switch and be displayed.

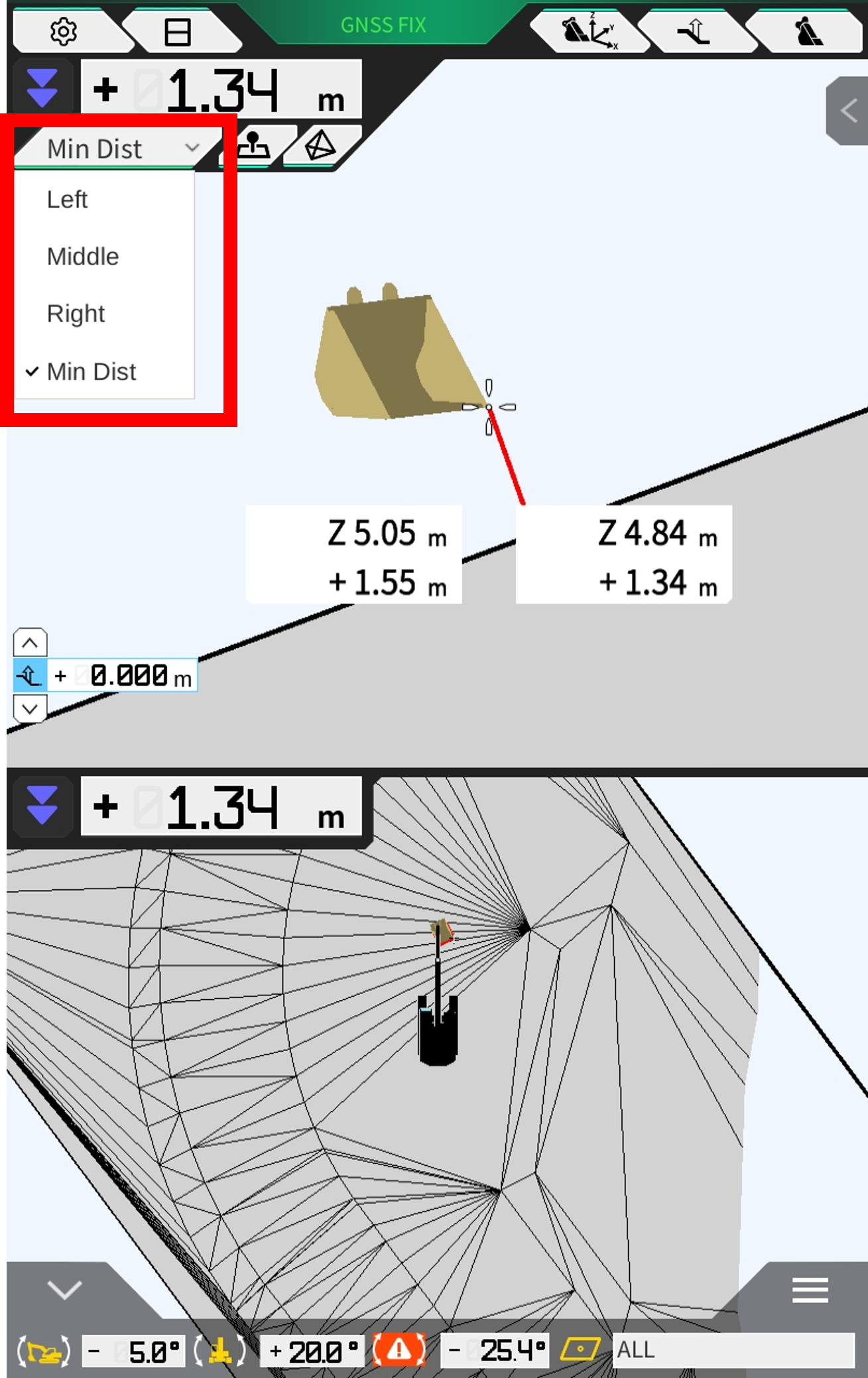

Selection of "Min Dist"



---

4. Color settings for the machine and bucket

Machine and bucket colors can now be changed.

You can change them from the following: Menu - Guidance Settings - Guidance Color Settings

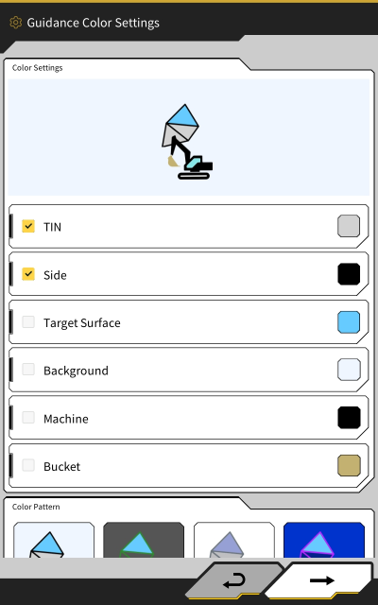

Guidance Color Settings	Example of changes

---

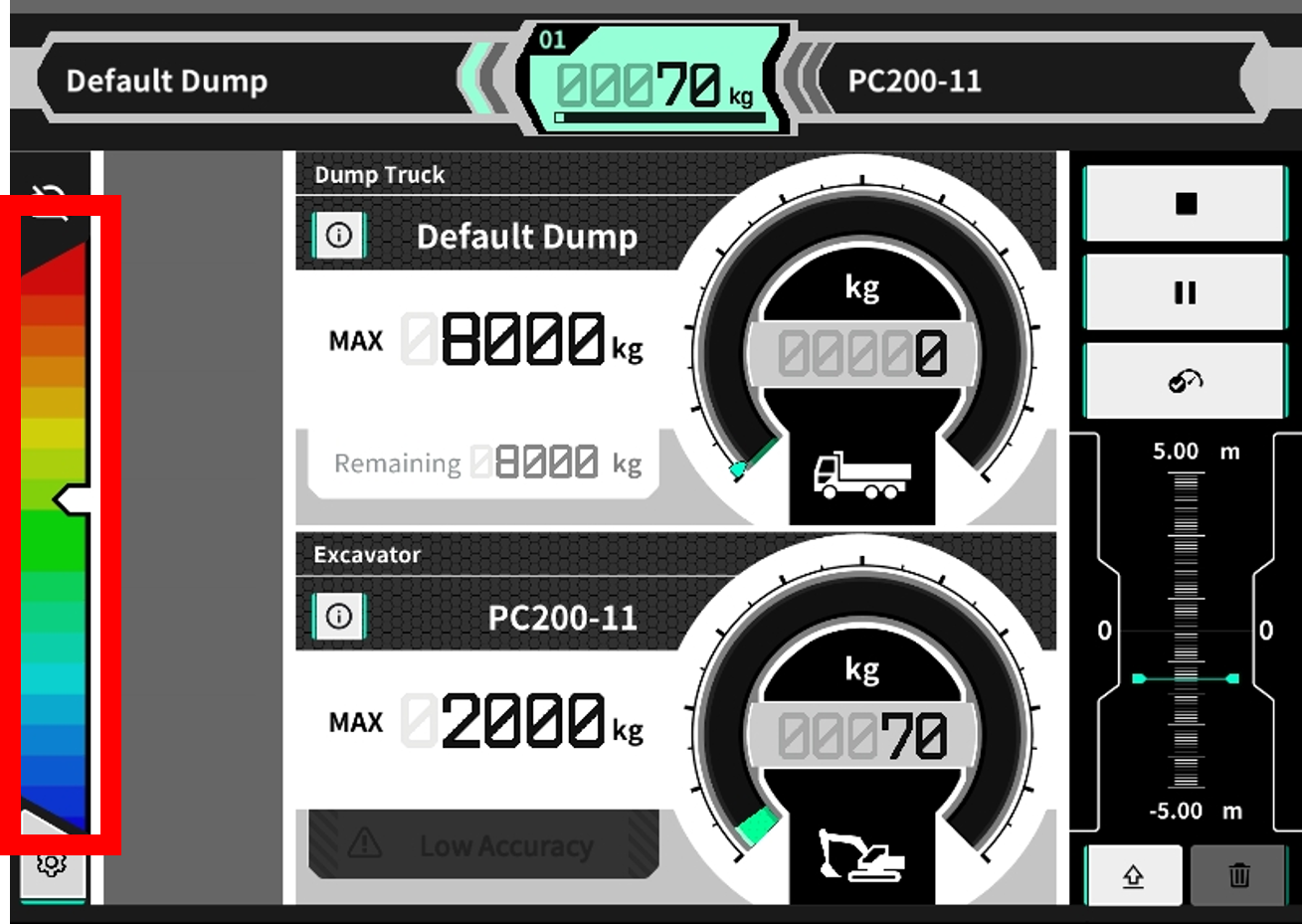

5. Displayed an indicator for boom raising speed

A speed indicator has been added as a guide for payload loading work (boom raising speed).

The boom raising speed during empty calibration is used as the baseline, and the difference is displayed during loading operation.
The center of the indicator shows the boom raising speed during empty calibration.
Please refer to the manual for details on settings.

Important Notes


• A baseline boom raising speed is required. If not set, the indicator icon will not be displayed, so please perform empty calibration.

---

6. Other updates and fixes

• [Machine Guidance] Improvements to Mountpoint Retrieval and Configuration Process
  • Addressed screen freeze issue during mountpoint retrieval
  • Improved scroll usability in the mountpoint list
• [Machine Guidance] Modified the topographic survey point saving screen to allow selection of the bucket edge position(L/M/R).
• [Payload Meter]Improved the payload calculation logic due to the tendency for accuracy to decrease when the arm is moved during loading
