3DMG Set Up Guide

Introduction

This article provides a detailed explanation on how to use 3DMG construction machine in a simplified manner, as well as some points to keep in mind.

Procedures and Explanation

1. Setup Guide (Construction Machine）

This guide explains how to set up the 3DMG application for use.

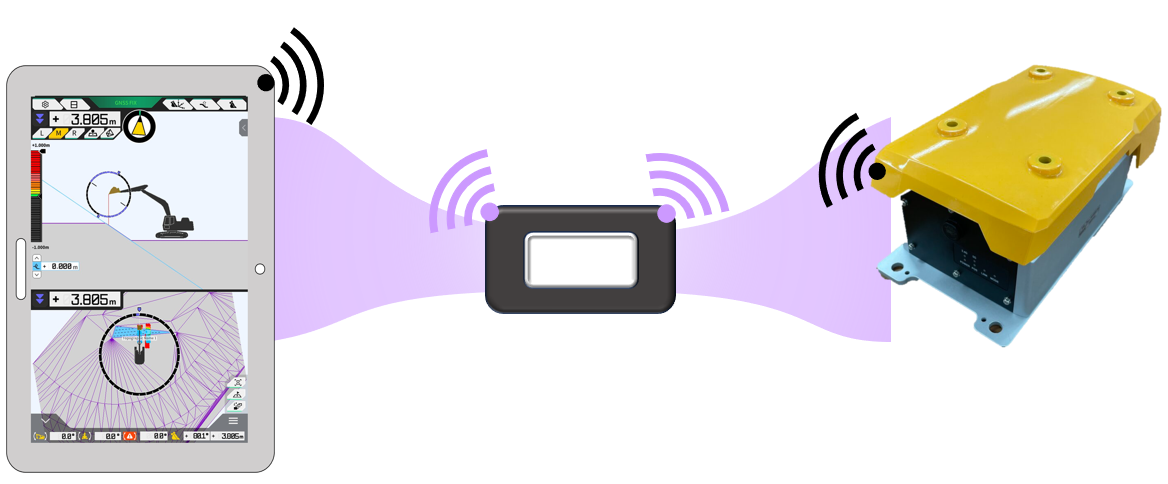

The application is operated by acquiring information output from the controller via a W-Fi router.

When the kit is purchased, the Wi-Fi router and controller are basically handled as a set.

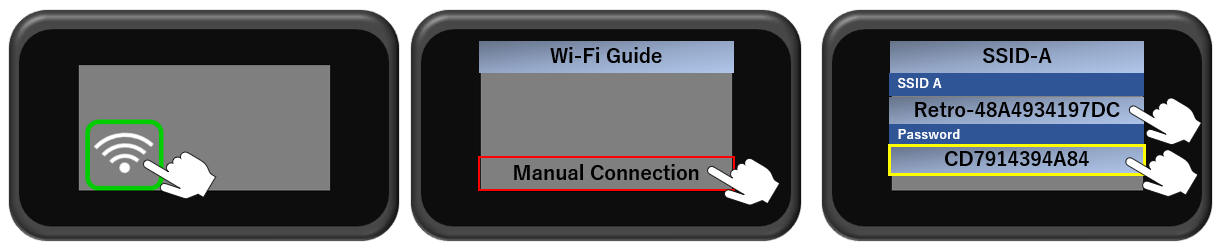

The tablet connects and communicates by selecting the SSID (serial number of the controller) in the Wi-Fi settings and entering the PASS set on the router.

When the following message appears on the tablet after starting the application

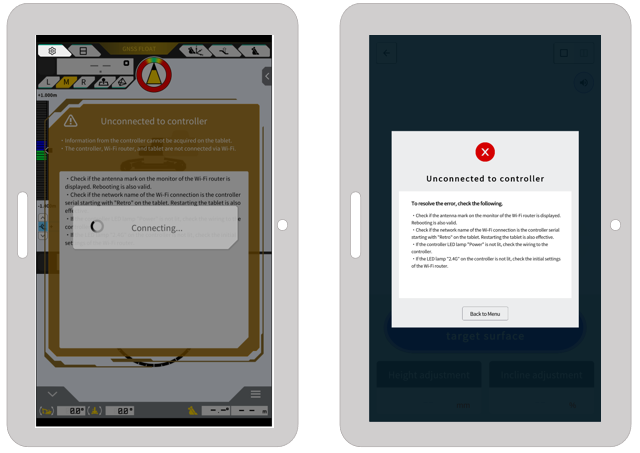

The controller information is not being transmitted, or the Wi-Fi router is not communicating.


1) After starting the controller, check that the lamp is lit.

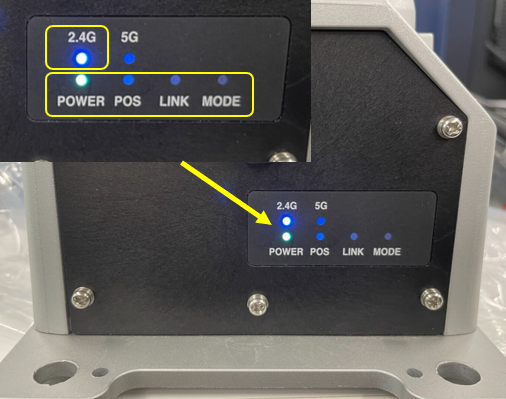

When you start the application outdoors, "2.4G", "POS", "LINK", "MODE" will be lit up.

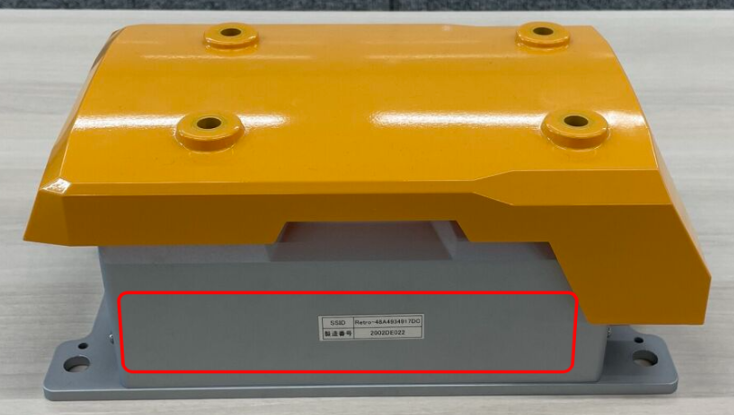

2) Confirm that the SSID displayed on the Wi-Fi router matches that of the controller serial and that the password is set with the router.
*The password to be set on the router is the number entered from the serial number in reverse.
("Retro-" is not included)

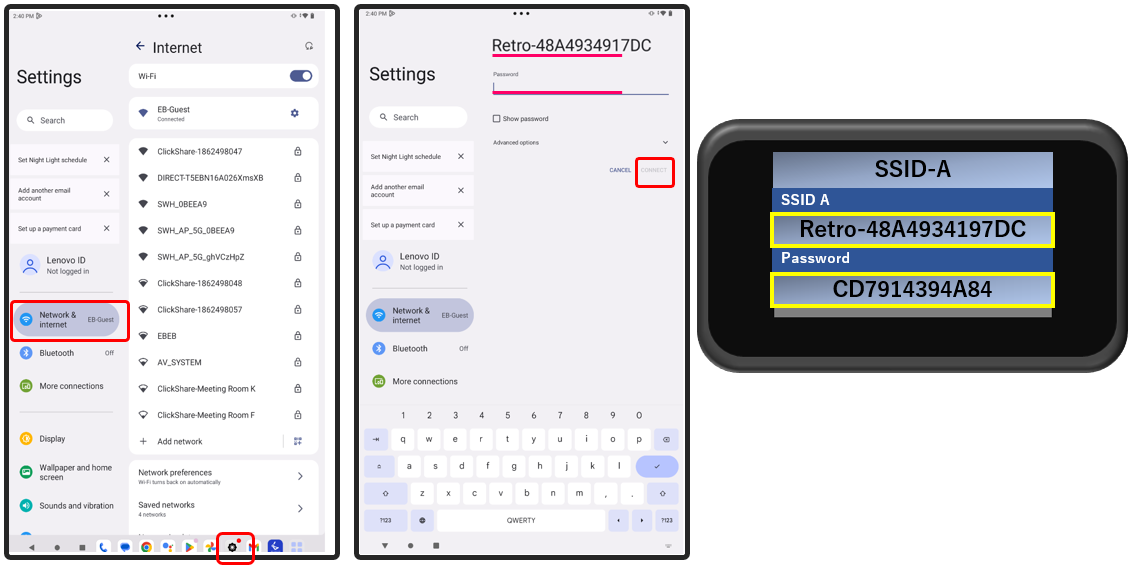

3) Start the tablet, go to Wi-Fi settings from the gear icon, search for the SSID of the router, and enter the password.


2. Setup Guide (Start Web Management)

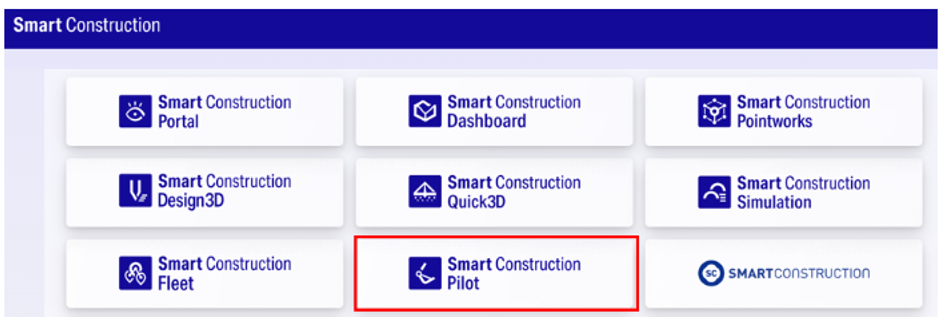

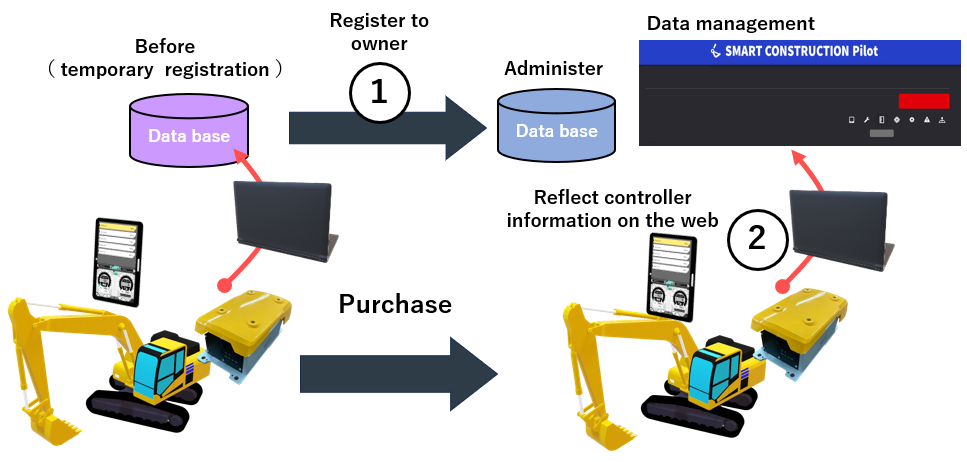

1. After receiving the product from the distributor, the administrator logs into the Customer Portal, starts Smart Construction Pilot from the app list, and confirms that the controller information (construction machine) is reflected in his/her company.

Calibration information, bucket information, etc. of the machine are stored in the web application.

Reflection of calibration information

1. Start the engine, Wi-Fi, tablet, and Pilot apps and follow the steps below to reflect the calibration information.

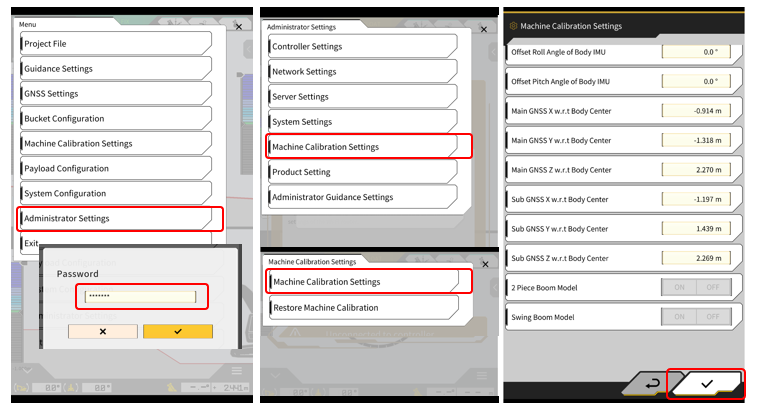

1) Touch the menu, select "Administrator Settings" and enter the password (ll?2017), then select "Machine Calibration Settings".

*The "l" in the password is a lower-case letter "L".

2) Open the "Machine Calibration Settings" and tap the check mark.

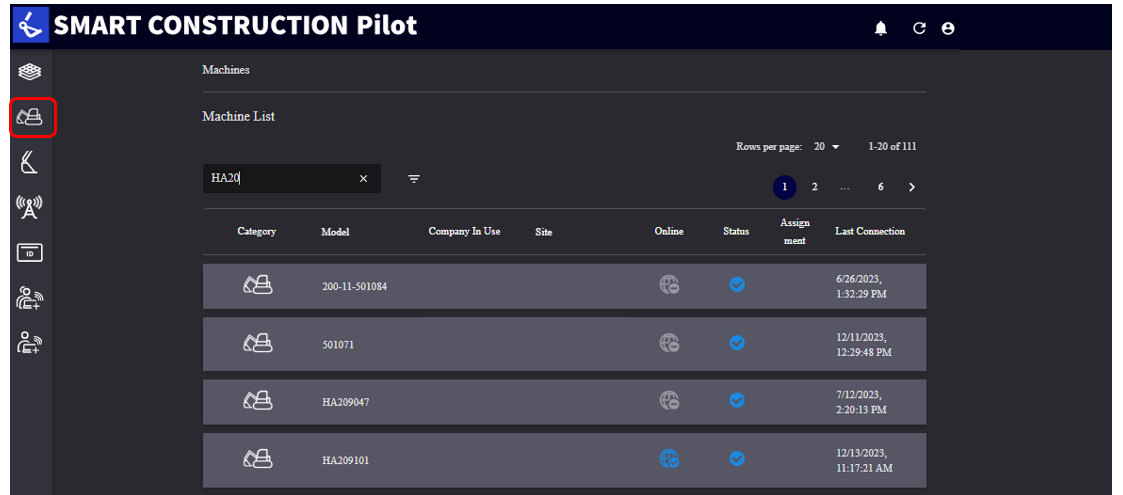

3）Confirm that the machine information is reflected on the web side.

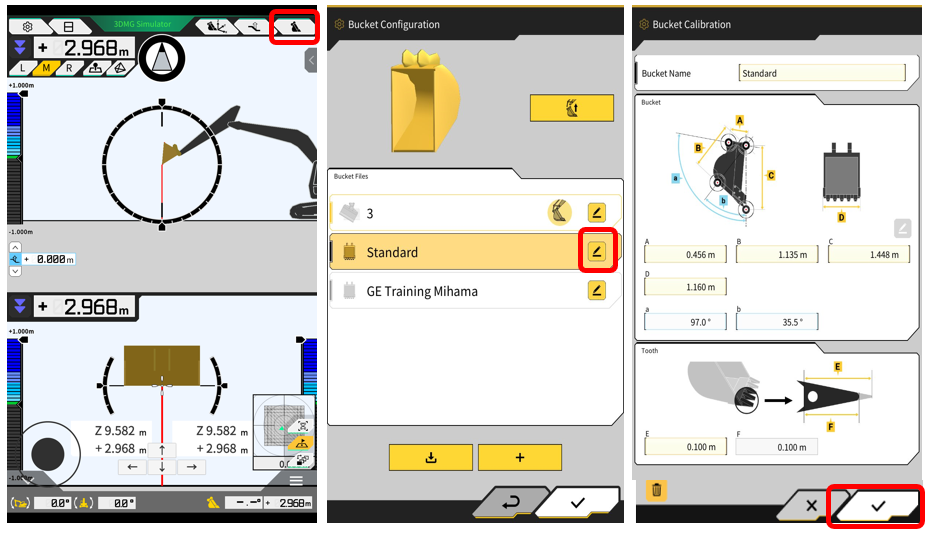

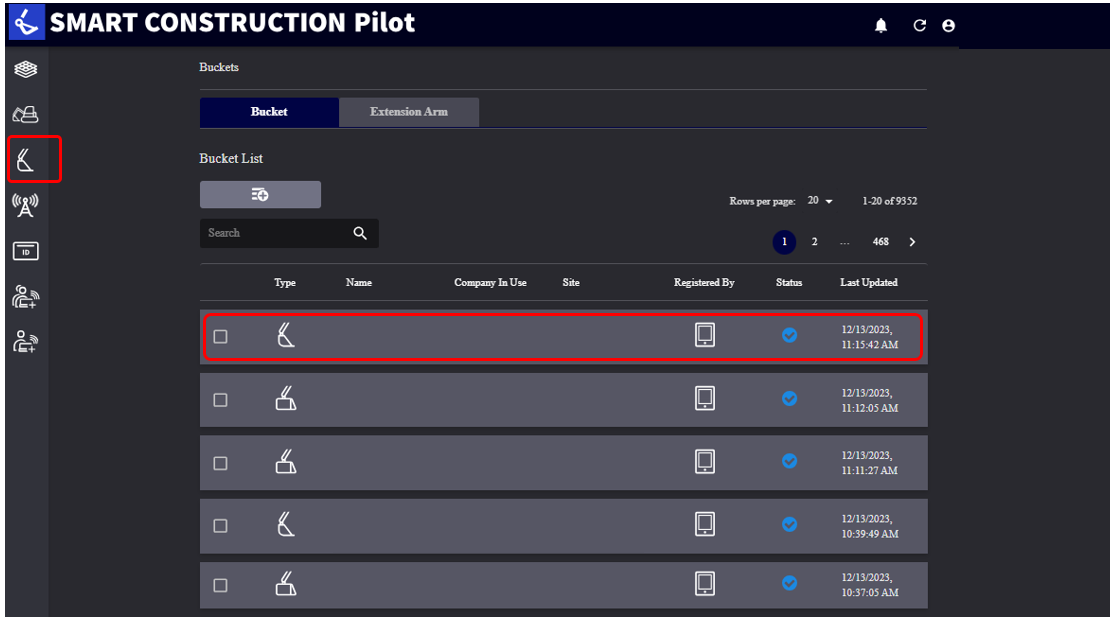

4) Open the bucket settings menu by tapping bucket icon, touch the edit mark for the bucket in use (lit yellow), and tap the check mark.

5)Confirm that the bucket information is reflected on the web side.

Supplementation

Apart from the Pilot application in the tablet, the software in the controller is also being updated sequentially.

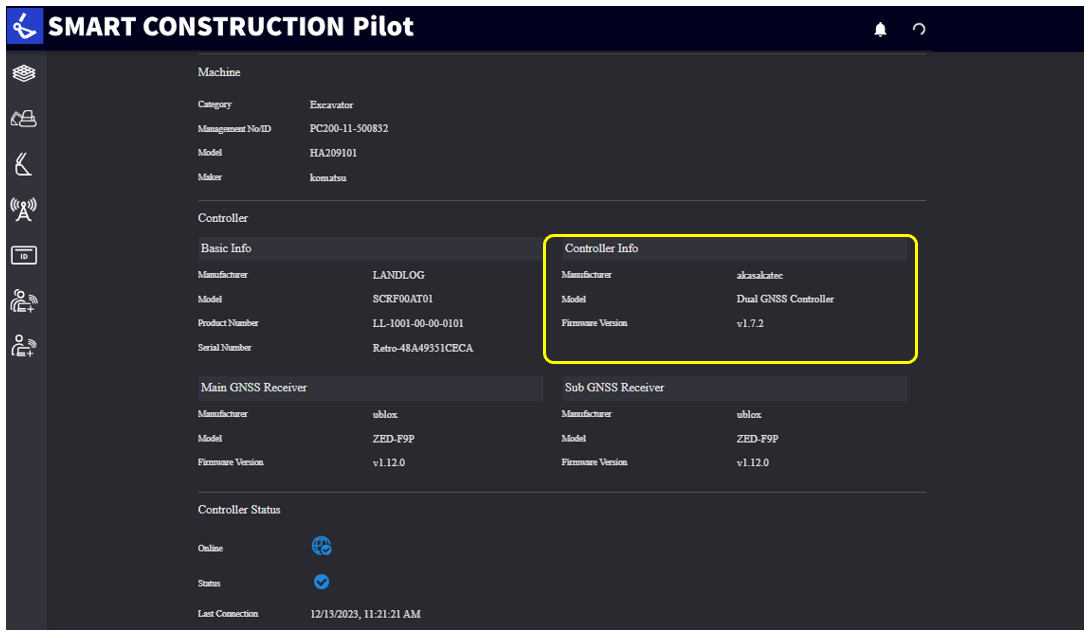

If the version of the software is old, there may be cases where it cannot be used, so please check the version on the web app and update the software.
Click here for update information.

Help function
You can access an action guide by set up the home screen in Google chrome.
Please refer to following procedure.

• Find our company of EARTHBRAIN and navigate on the support site page.
  *Approximately 0.5GB of communication is consumed for 500 accesses.
