On Wednesday, February 25, 2026, Smart Construction Pilot (tablet app) v1.0.13 will be released via Google Play.

Smart Construction Pilot 1.0.13 Updates

1. Design Surface Switching on the Machine Guidance Screen

2. Added TCP as a communication method for GNSS correction data

3. Bucket Width Lines Remain Parallel When the Bucket Is Tilted

4. Machine Size Adjustment Feature

5. Satel Radio Configuration

6. Other updates and fixes

---

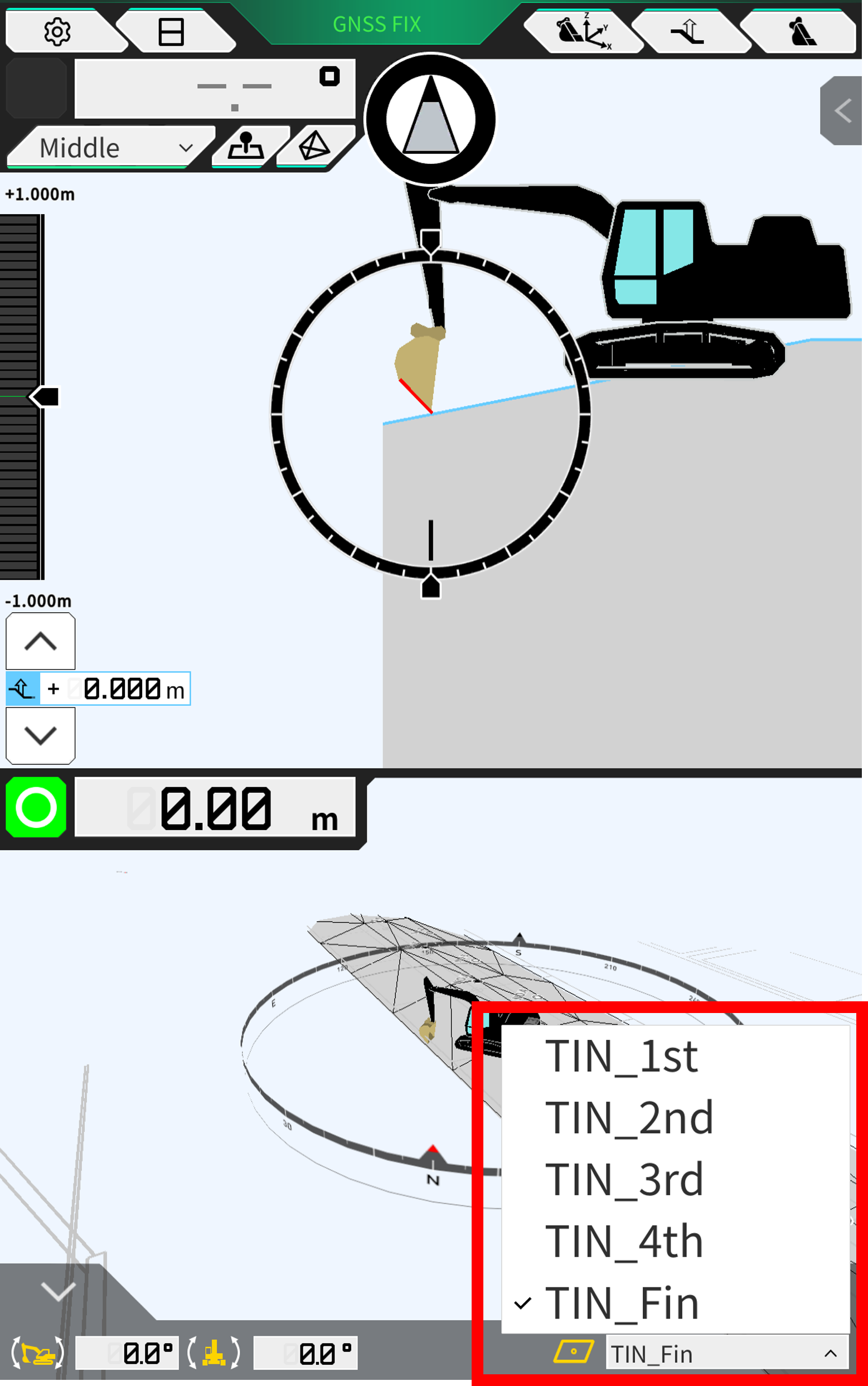

1. Design Surface Switching on the Machine Guidance Screen

You can now easily switch design surfaces directly from the Machine Guidance screen.

Select a design surface from the list of design surfaces registered in the current project.


To change the design surface, use the design surface display in the footer of the Guidance screen.
　Important Notes　
Press and hold to display the list of available design surfaces.


---

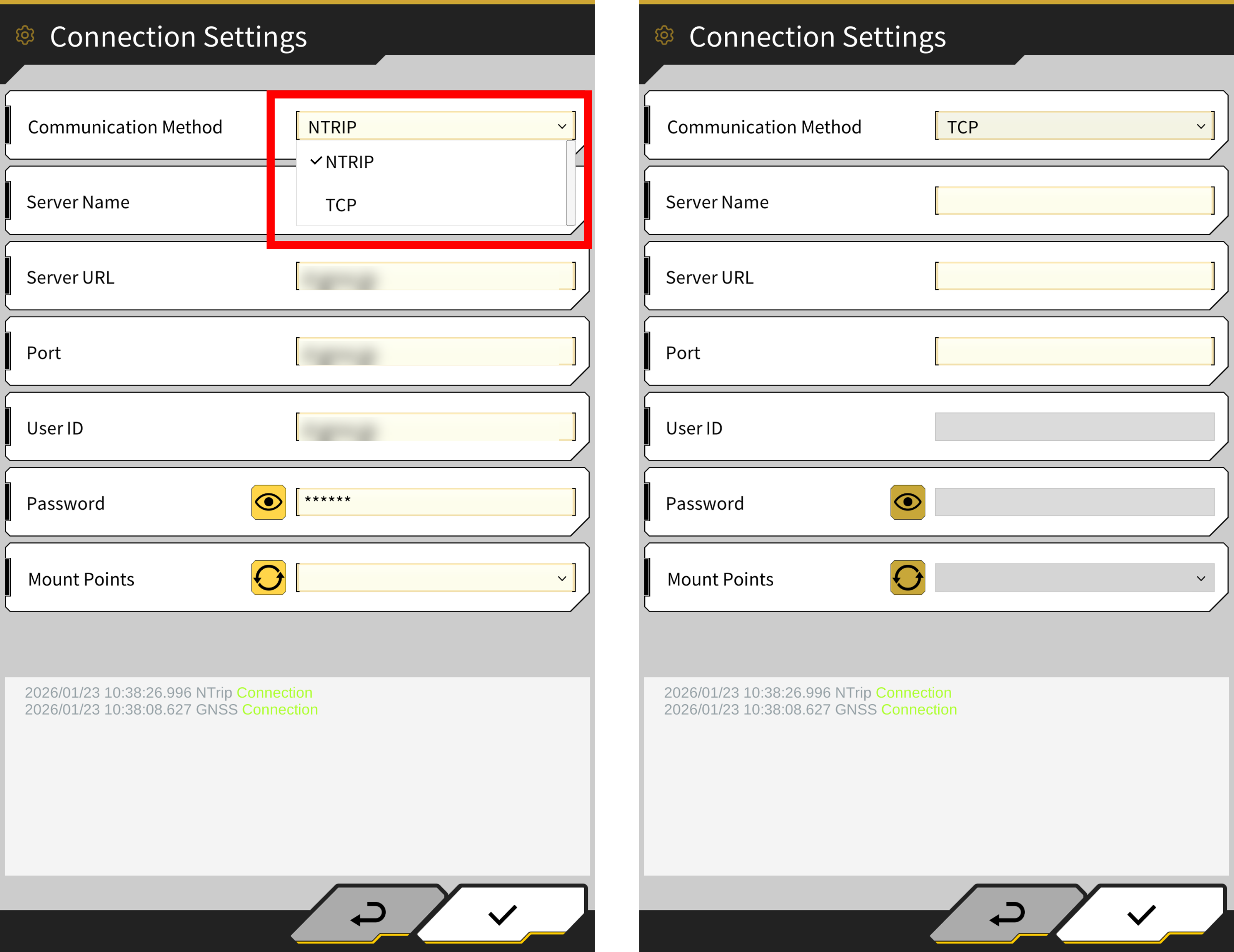

2. Added TCP as a communication method for GNSS correction data

Support for TCP communication has been added to the GNSS correction data transmission methods, in addition to the existing NTRIP method.

You can change this setting via:
Menu - GNSS Settings - Connection Settings


When using a TCP connection, set the Communication Method to “TCP.”



---

3. Bucket Width Lines Remain Parallel When the Bucket Is Tilted

Even when the bucket is tilted, the bucket width lines are now displayed parallel to the bucket.

When the bucket width line direction is set to “Rotation” the bucket width lines will remain parallel to the bucket even during bucket tilt.

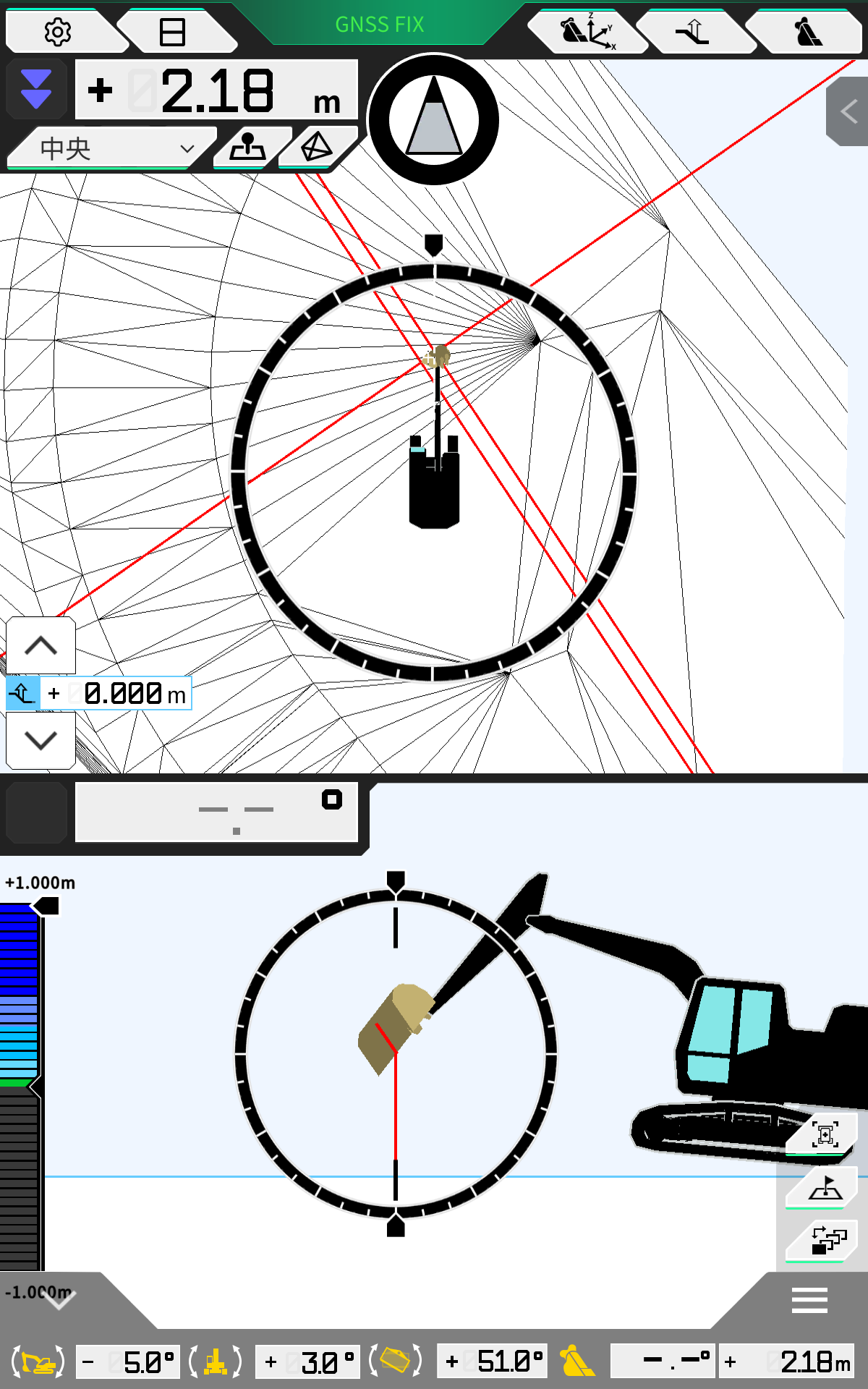

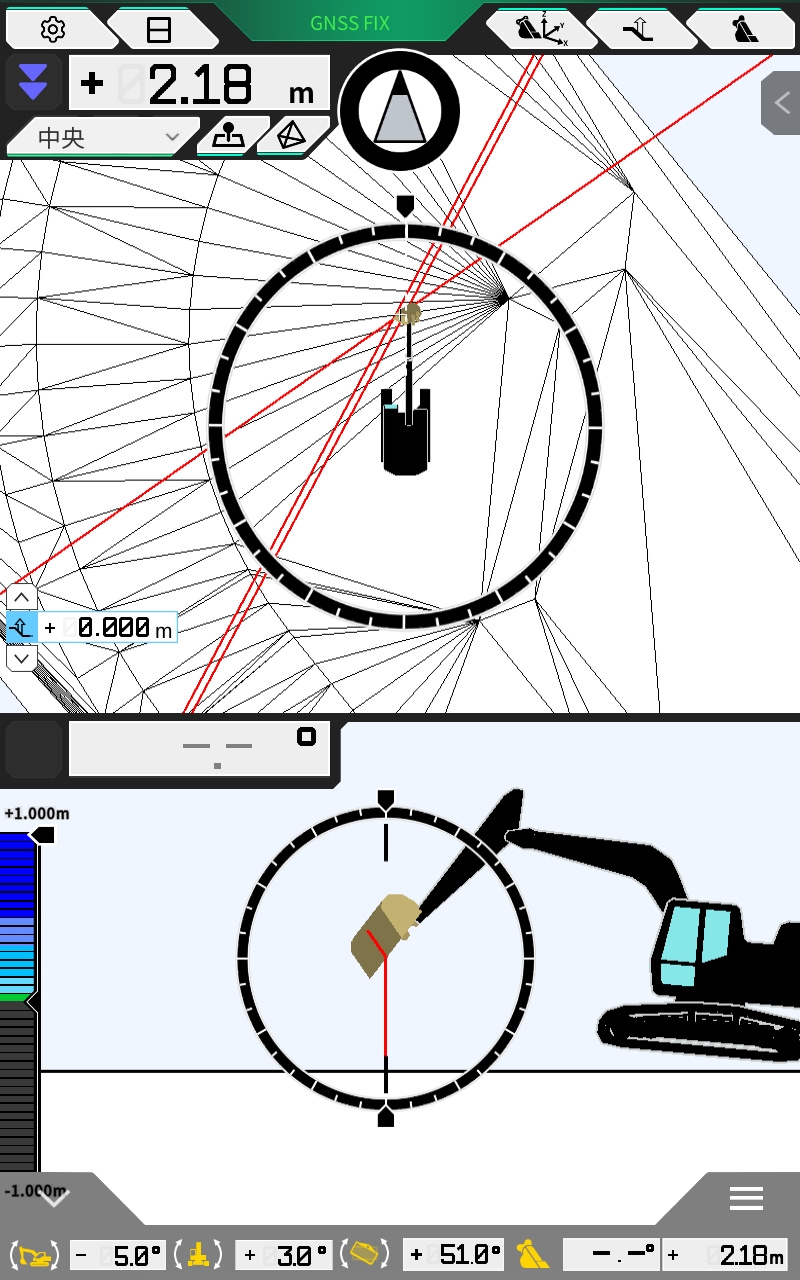

Before When the bucket bottom became nearly vertical, the width lines were not displayed in parallel.	After The width lines are displayed parallel to the bucket.

---

4.Machine Size Adjustment Feature

The machine image displayed on the Machine Guidance is now automatically adjusted based on calibration results, including both the working equipment and crawler size.

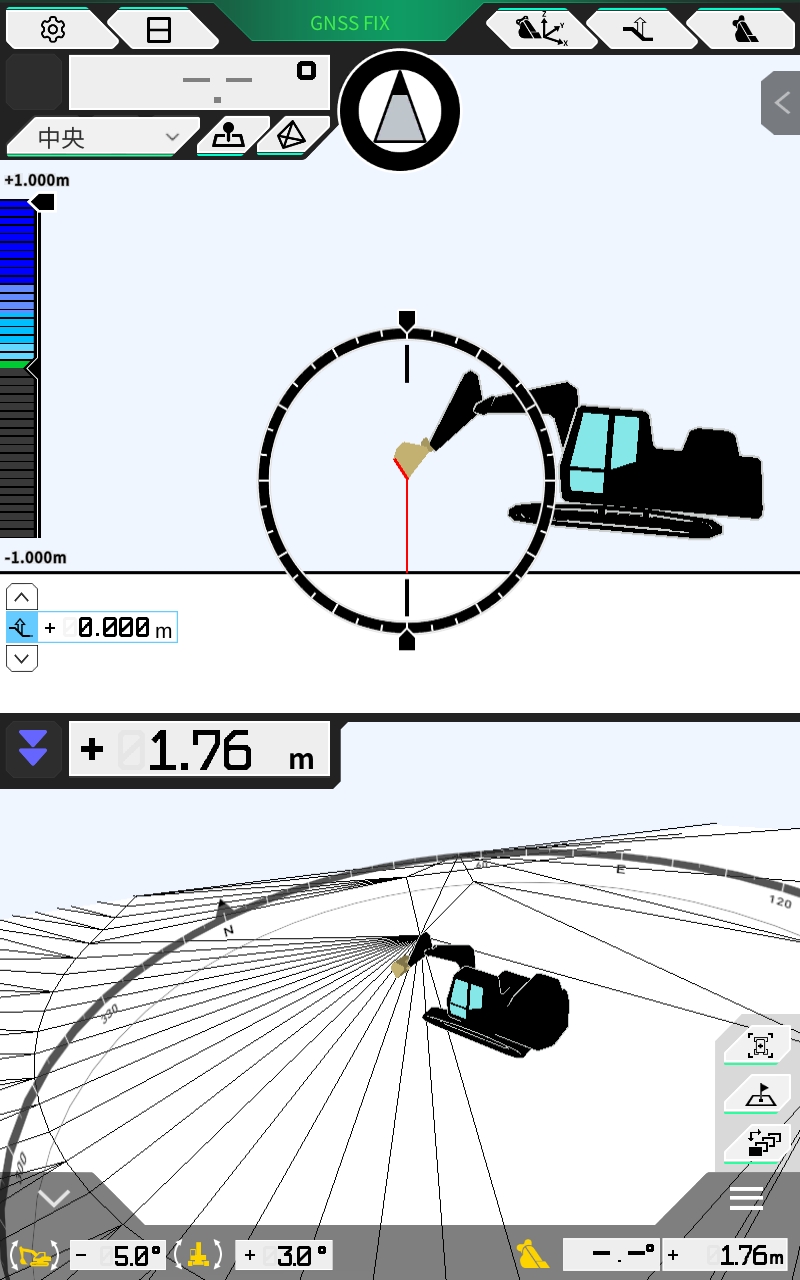

Before Only the crawler size changed.

After The size of the working equipment is automatically adjusted according to the crawler size.

---

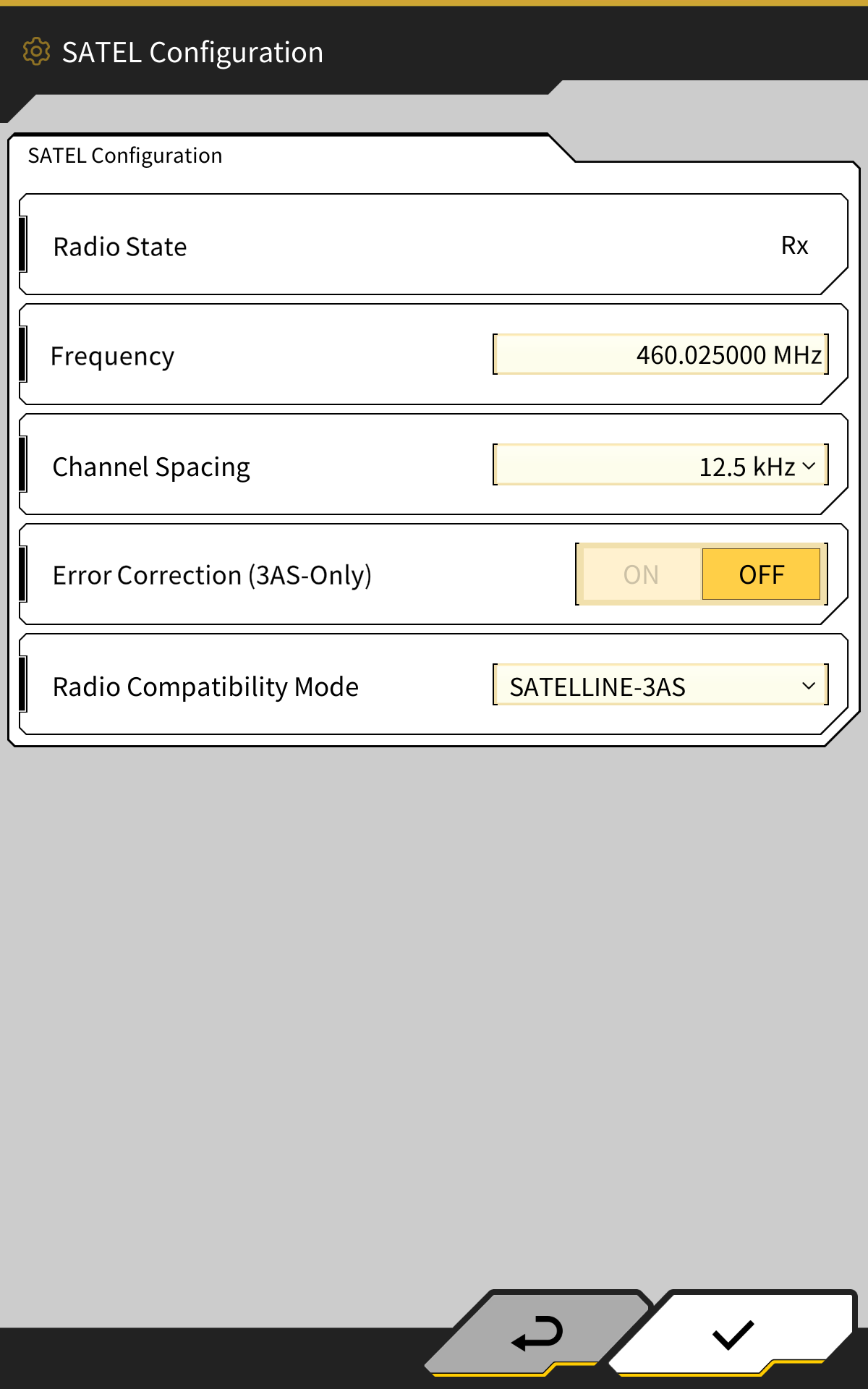

5. Satel Radio Configuration

This function allows you to change the settings of the SATEL radio modem via the Pilot app.

　Important Notes　


• This function is available in tablet app version 1.0.13 or later, and the controller FW 2.7.3 or later. If you are using an older version, please update.
• If one of the countries listed below is set on the tablet, the menu is displayed in the Machine Guidance menu.

Countries: AT, AU, BE, BG, CA, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HR, HU, IE, IS, IL, IN, IT, KZ, LT, LU, LV, MX, MT, NL, NO, OM, PL, PT, RU, RO, SE, SG, SI, SK, TR, UA, US, VN and ZA

• For details on radio settings, refer to the SATEL User Guide.

Menu - GNSS Settings - SATEL Configuration
Please refer to the manual for details.



---

6. Other updates and fixes

• [Machine Guidance] Improved GNSS information display to support the new controller:
  • For the new controller, the horizontal/vertical RMS items for the sub-antenna are hidden, as the system uses a single receiver.
• [Machine Guidance] Improved the size of the Quick Offset button on the Guidance screen for easier tapping.
• [Machine Guidance] Fixed an issue where the linework on the Plan-View screen appeared to change when the machine was moving or when the viewpoint was changed.
• [Machine Guidance] Fixed an issue where the Operation Indicator was not displayed in the Plan-View screen.
• [Machine Guidance] For MachineGuidance/MachineGuidance2D licenses, the bucket weight setting in bucket calibration can now be skipped.
• [Payload Meter] Improved load calibration so that Correction Value B is adjusted together with the existing Correction Value A.
