How to offset the design surface.

Introduction

This article provides a detailed explanation on how to offset (change the height of data) the design surface during construction in the Guidance screen.

Procedures and Explanation

Vertical

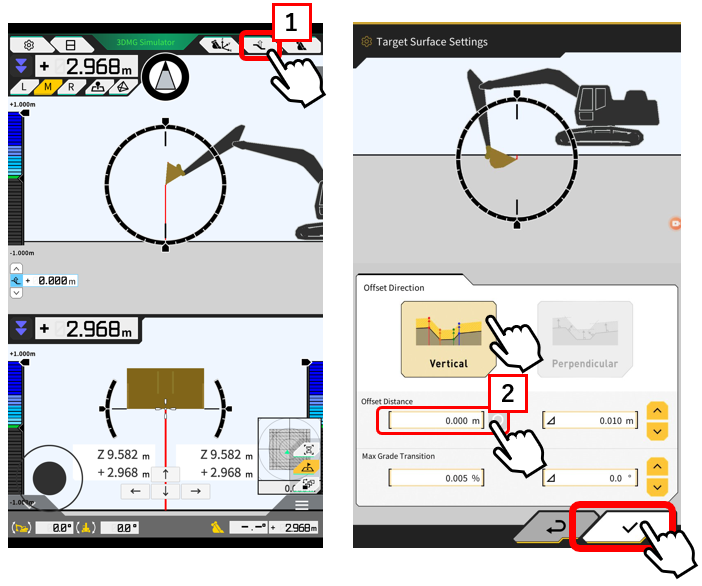

１．Tap 【"1"Target Surface Settings"】 icon on the guidance screen, enter 【”2"the offset distance】 manually, and touch the check button.


Perpendicular

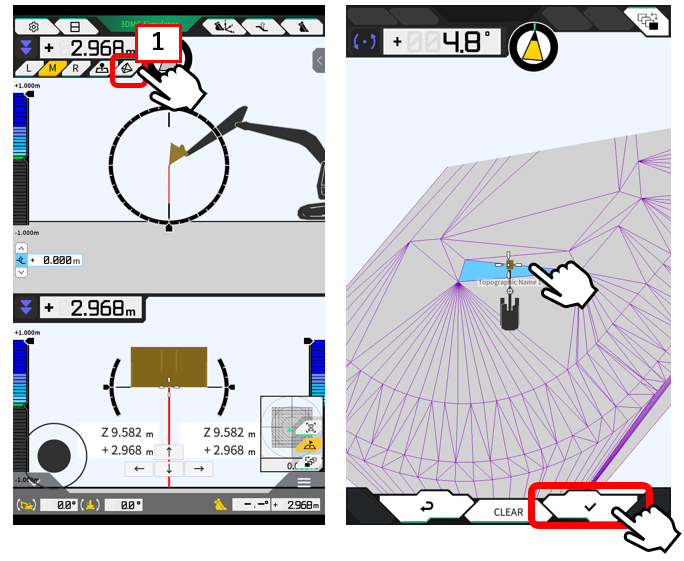

２．Tap 【"1"the TIN data】 icon, select the data range to be extended, and touch the check button.

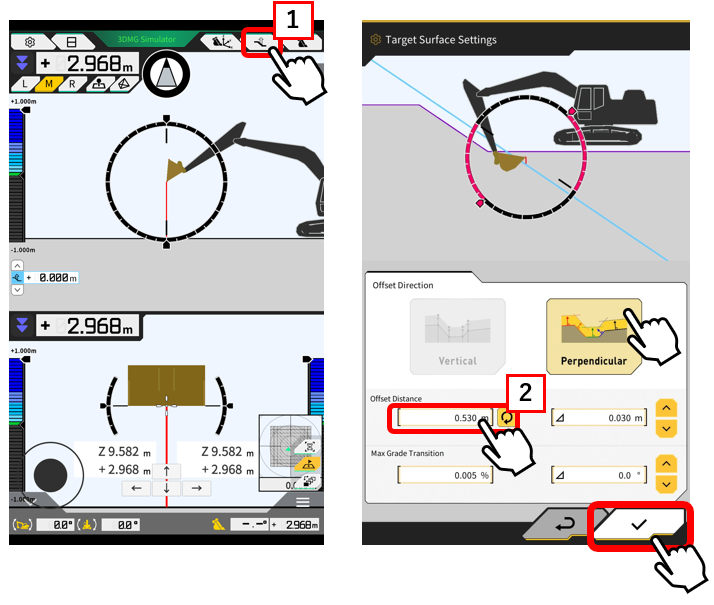

１)Tap 【"1"Target Surface Settings"】 on the guidance screen, enter 【"2"the offset distance】 manually, and touch the check button.

Supplementation

The icon turns yellow when the offset is in use.

Adjustment of Offset Amount
The value entered in the target surface settings is reflected in 【"1"the offset amount】 in the guidance screen.
Example: If 0.010m is entered in the settings, tapping △ will set the offset to 0.510m in the image below.
