How to use projection for construction

Introduction

This article provides a detailed explanation on how to convert the location information acquired by 3DMG construction machine into coordinates (world geodetic system) for construction.
By using projection, construction can be performed immediately without the need for localization.

Procedures and Explanation

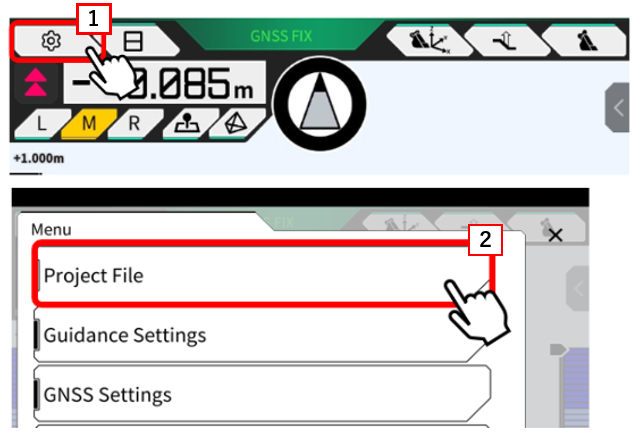

1. Select 【"1"the gear mark】 and choose 【”２” Project File】.

In case of creating a new project

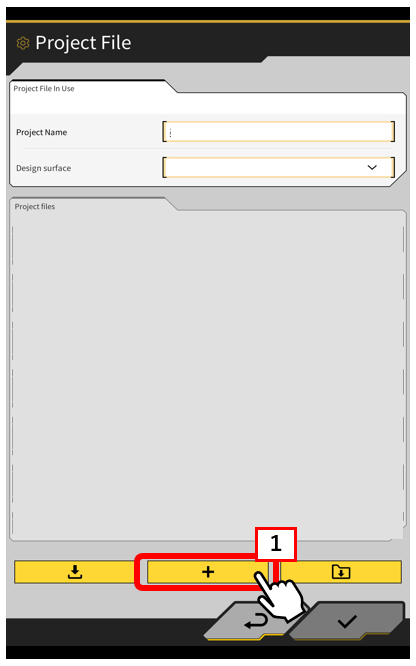

２．Tap 【"1"the "+" button】 to start a new project setting.

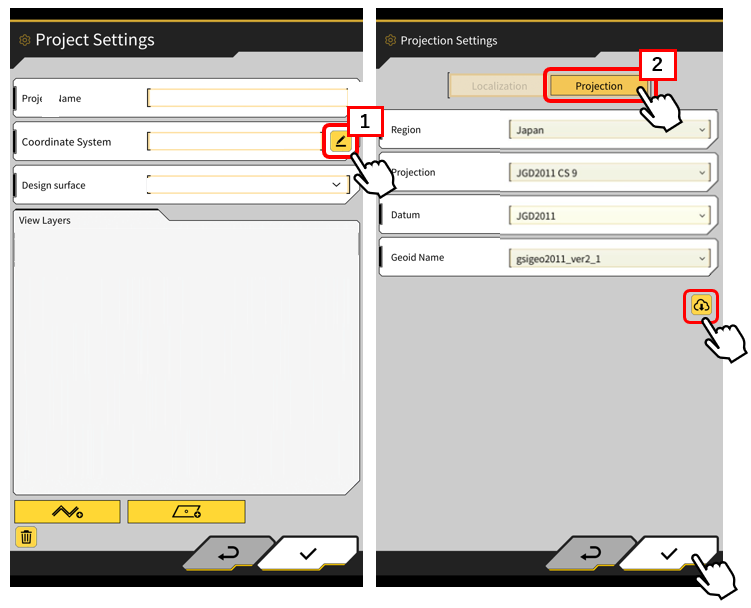

Since the coordinate system is not selected, tap 【"1"the pencil icon】 to set 【"2" Projection】.
１） Set the region, projection , datum, and geoid name, and touch the check to update the projection information to the latest.

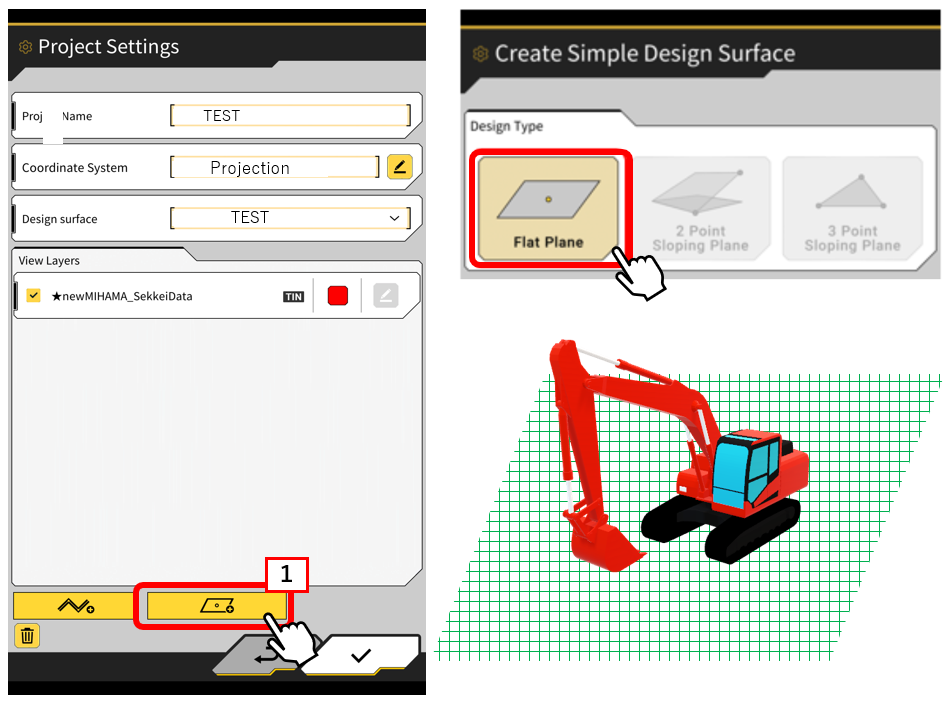

２）Once the settings are complete, the construction machine can measure its own position and cutting edge coordinates based on satellite information, so construction data can be downloaded, 【”1"simplified data】 can be created, and construction can be performed immediately.

In case of switching within the downloaded project

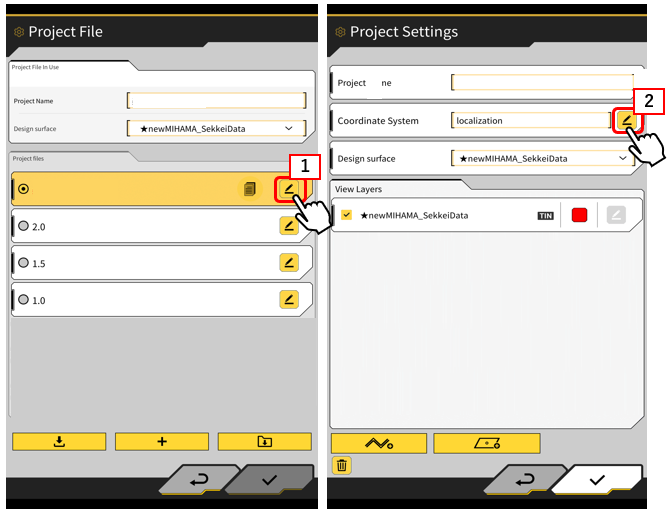

３．Tap 【"１”the pencil button】 of the currently selected project, and then tap 【"2"the pencil button】 of the coordinate system.

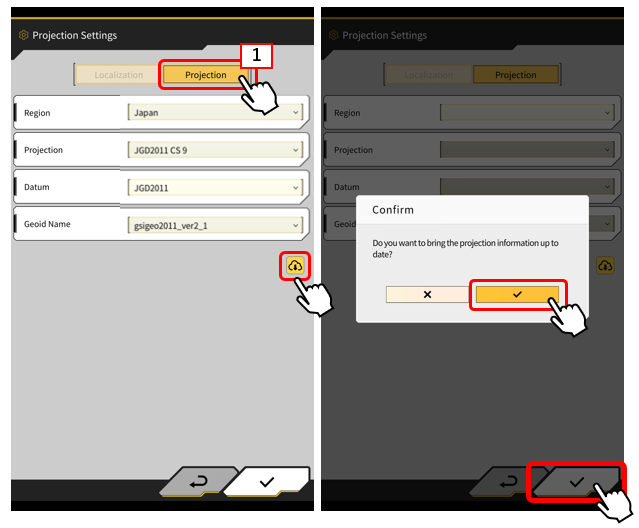

１）Select 【"1"Projection】, then select region, projection , datum, and geoid name, and update the projection information.
