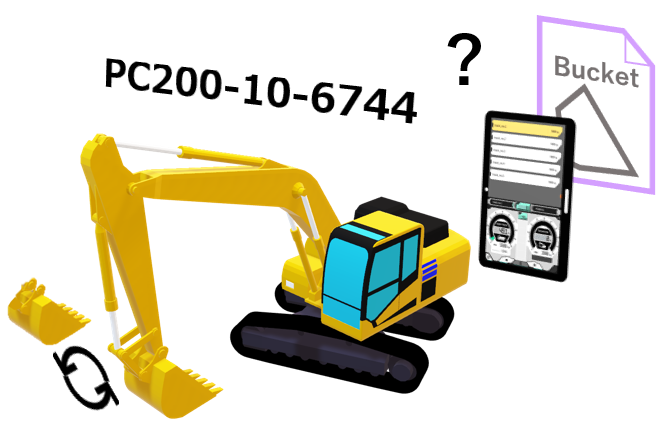

How to set up a bucket exchange when the machine is using a payload option.

Issue

How to set up a bucket exchange when the machine is using a payload option.

Answer

Enter the bucket weight in the payload machine settings screen of the Smart Construction Pilot.

Explanation/How to deal

1)

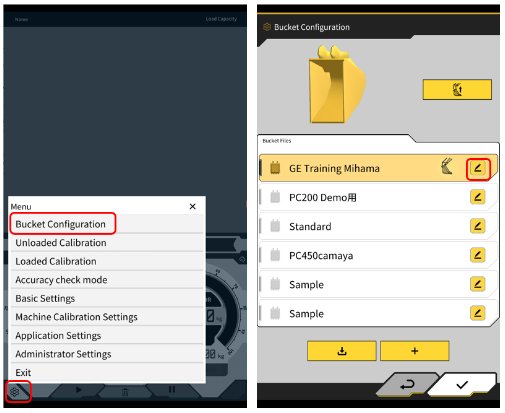

• Open the Smart Construction Pilot app and open the Payload.
• Click the gear icon of menu and select the Bucket Configuration.
• Click the edit icon for the bucket you want to change.

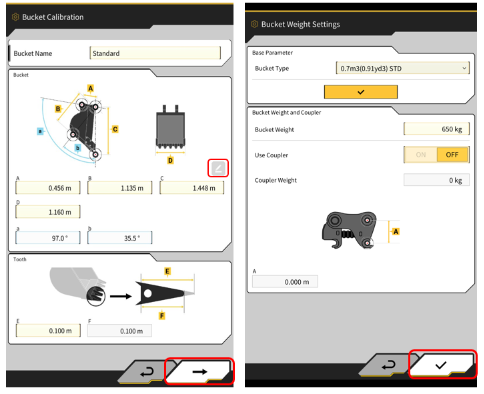

• Click the edit icon on the Bucket Calibration.
• After the edit icon is grayed out, press the arrow mark at the bottom right
• Select "Bucket Type" and press the "check" symbol below the bucket type on the Bucket Weight Settings.
• If it is not in the category, enter the bucket weight yourself.



2)

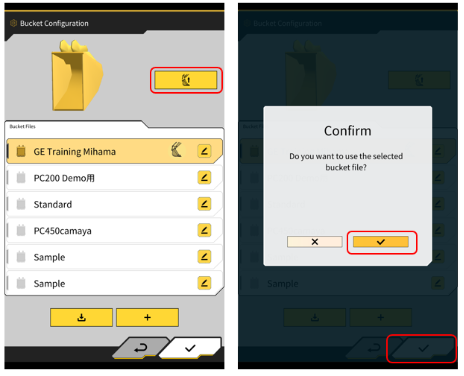

• Finally, select a bucket in the configuration screen and click on the "bucket set" icon.
  Confirm and check the box to complete the exchange.
