Error message "Unable to calculate bucket angle" appears.

Issue

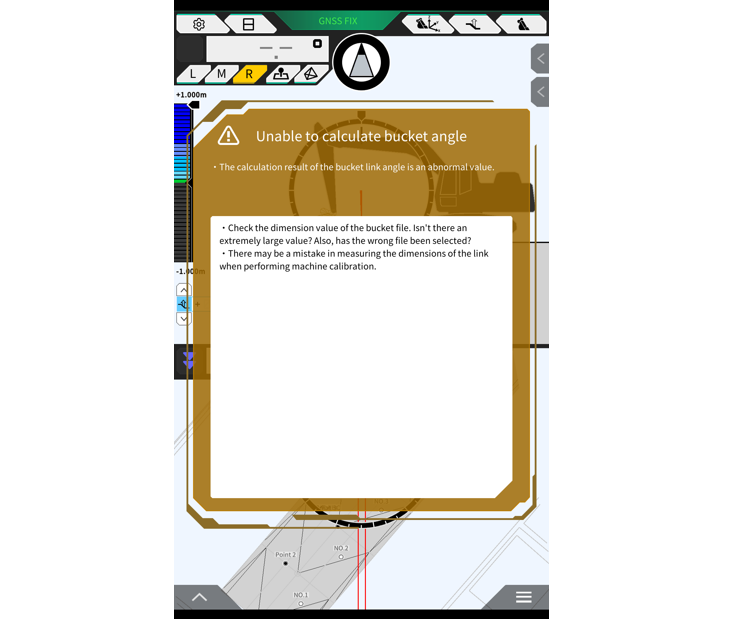

Smart Construction 3D Machine Guidance "Unable to calculate bucket angle" error appears on the tablet app.

Cause

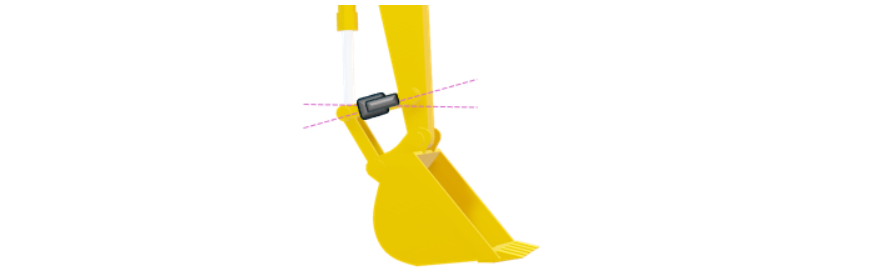

The calculation result of the bucket link angle is an abnormal value.

How to deal

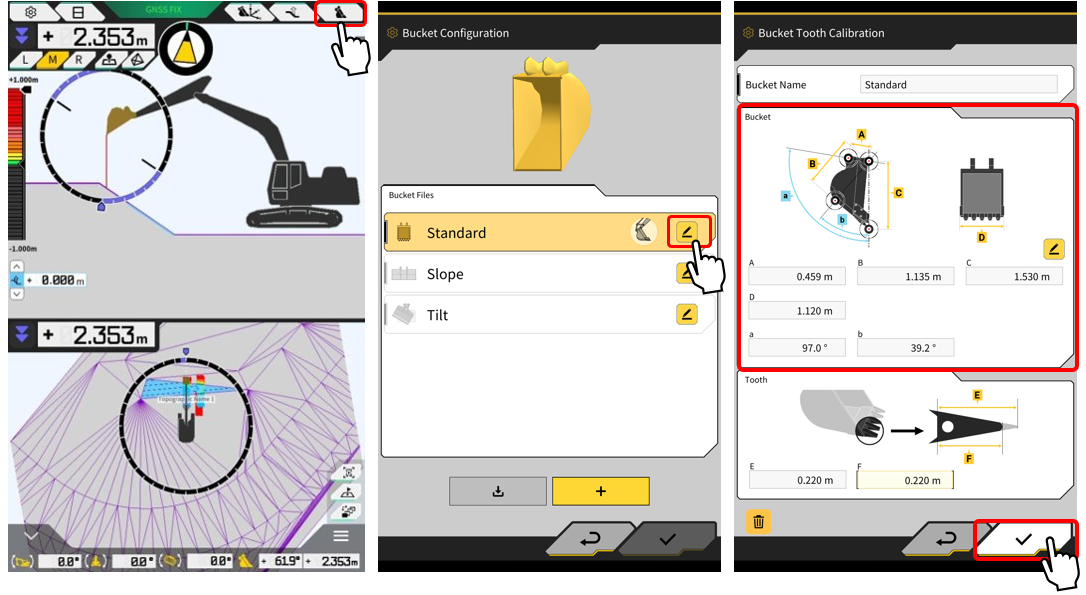

• Check the dimension value of the bucket file. Isn't there an extremely large value? Also, has the wrong file been selected?

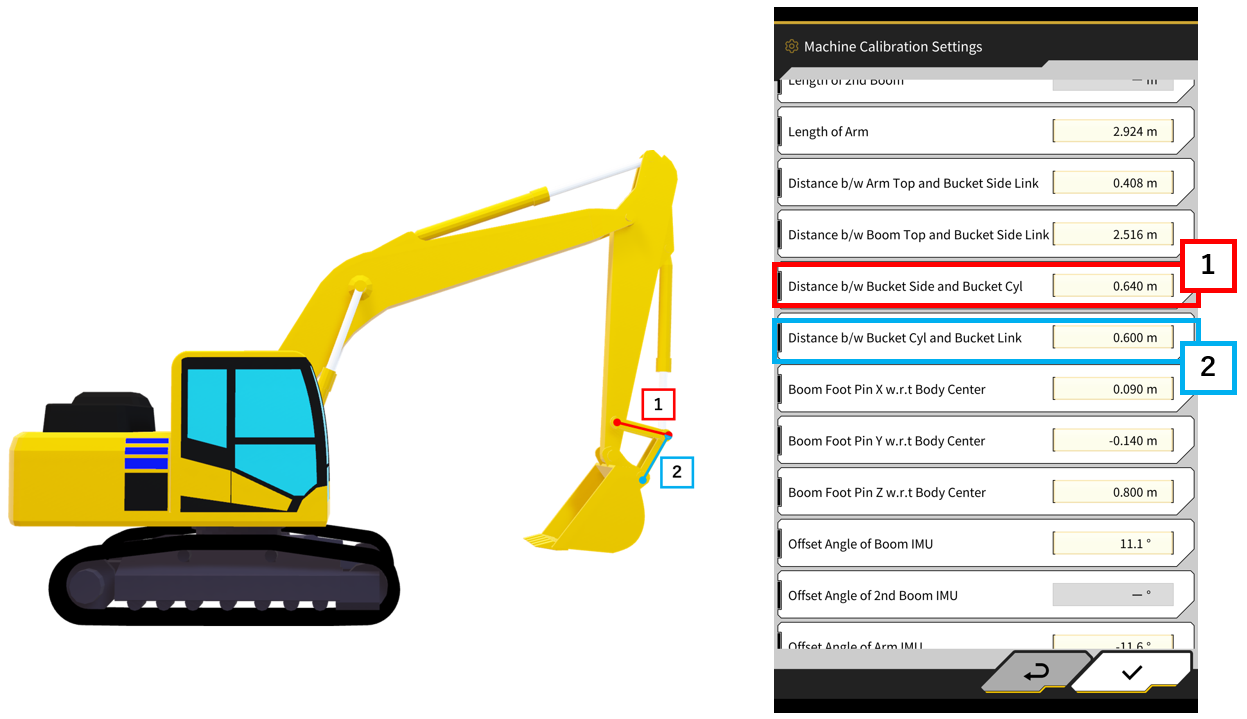

• There may be a mistake in measuring the dimensions of the link when performing machine calibration.

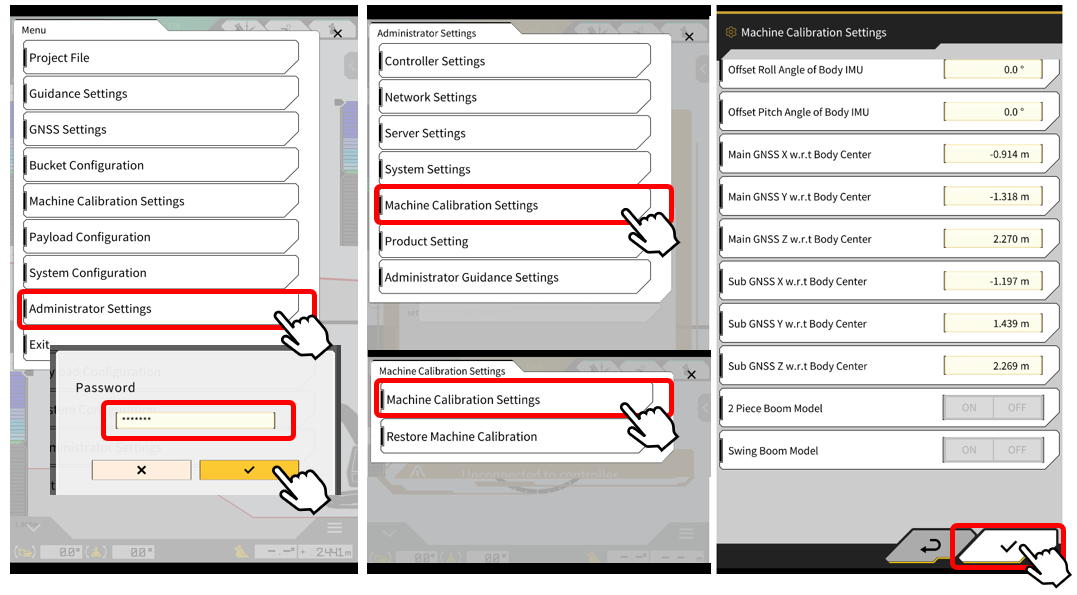

• Select "Administrator Settings" from the menu and enter the password.
• Select "Machine Calibration Settings" from the Administration menu and tap "Machine Calibration Settings".
• Scroll through the calibration results to change the values and check for updates.

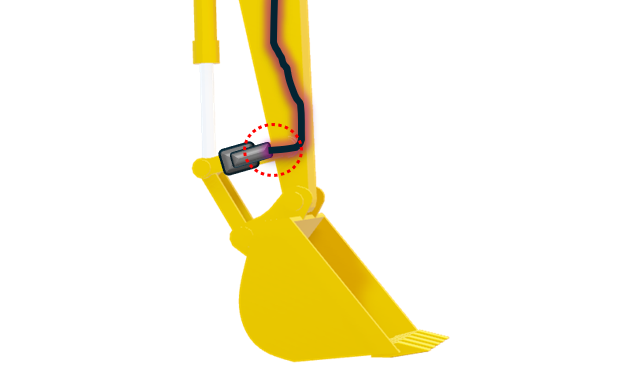

• Please unplug the connector connected to the IMU center of the bucket and check if it is plugged in correctly. If the error persists or occurs frequently, the sensor may need to be replaced.
