Using Starlink with 3DMG

Keep your 3DMG machines connected anywhere with Starlink Mini. This quick guide shows how a simple cab mounted setup and roaming subscription provide reliable internet access, even in remote job sites.

 Procedure

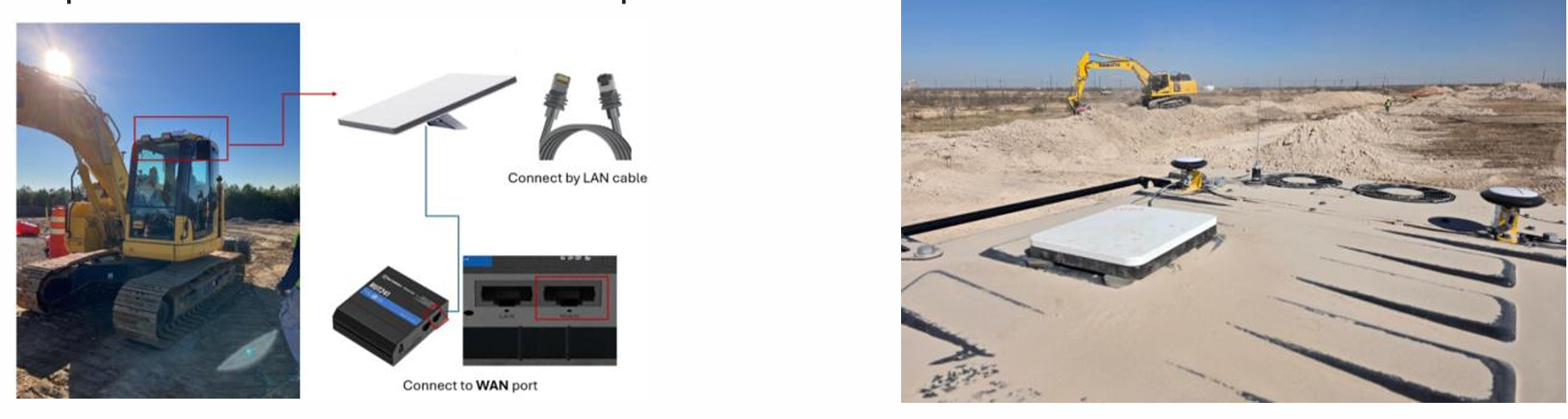

1. Connect the STARLINK Mini Ethernet port to the modem’s WAN port using a LAN cable. We recommend using the dedicated STARLINK Ethernet cable to ensure proper water and dust protection.

2. Follow the same SSID and IP configuration from RUT241 or other Wi-Fi modems. Wi-Fi SSID = GNSS controller SN for example : Retro-xxxxxxx IP = 192.168.128.1 APN = set to Auto.

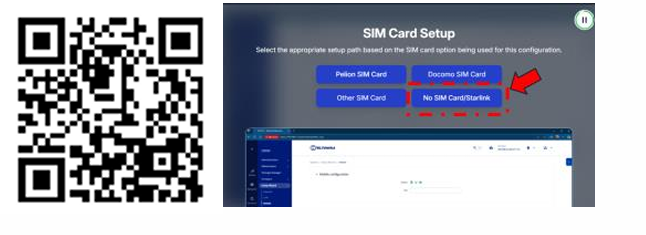

Clink HERE or scan QR for guide Modem configuration..

3. Recommendation to purchase STARLINK mini kit, magnetic mount, protection case accessories and power cable and mount it on top Cab.

Using Starlink with 3DMG

Recommended websites to purchase STARLINK and its accessories

We recommend the items listed in the table below for purchase from the indicated websites. Prices are subject to change based on the suppliers’ current pricing. The listed accessories and websites are provided for reference purposes only; equivalent items may also be purchased from other vendors such as Best Buy, Amazon, or local retailers.

Description	Price (Approximate)	Link
Starlink Mini Kit	$229.00	Starlink
Starlink Ethernet Cable	$25.99	Amazon
Starlink 50GB Roaming Plan	$50.00 per month	Starlink
Mini Mount case	$79.99 veritasvans	Veritasvans
Magnet	$29.99	Veritasvans
Power cable Car Adapter 10FT	$29.99	Veritasvans

Support and Resources

For additional questions, please either contact a local Technology Solution Expert (TSE) or Smart Construction Support through one of the following contacts:

• Call: [phone]
• Text: [phone]
• Email: [e-mail]
