How to change the length of the worn out tooth.

Introduction

This article provides a detailed explanation on how to change the tooth length on the data in the guidance screen when the bucket tooth in use are worn.
By adjusting the tooth length, you can use the guidance for checking the correct cutting edge accuracy and construction.

Procedures and Explanation

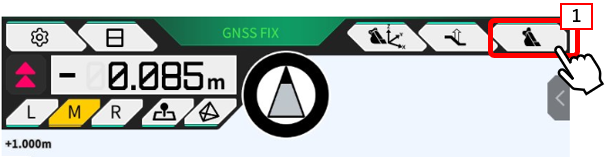

1. Tap 【"1"the bucket】 icon on the guidance screen to select the bucket currently in use.

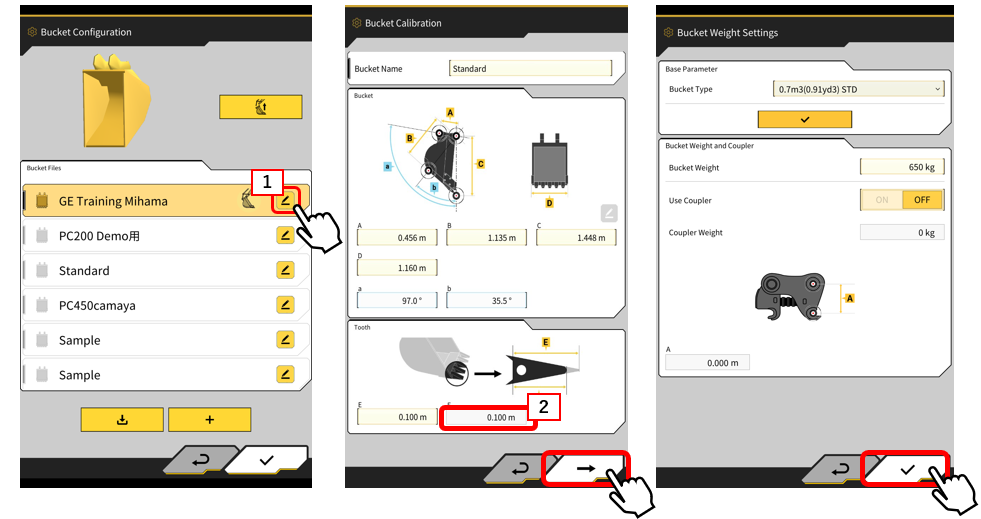

2. Tap 【"1"the pencil】 icon of the selected bucket to check the bucket calibration details.

3. "Tooth" is displayed on the calibration.
The left side is the length of the tooth at the time of calibration and 【"2"the right side】 is the length of the tooth in use.

4. After setting, check the cutting edge accuracy and confirm that there is no problem with it.

Supplementation

If the tooth length to be replaced is longer than the tooth in use
If you want to change to a longer tooth than the one used when the bucket file was created, you need to create the bucket file again instead of changing the tooth length.
