Introduction
This article provides a detailed explanation on how to create a project for 3DMG construction machine.

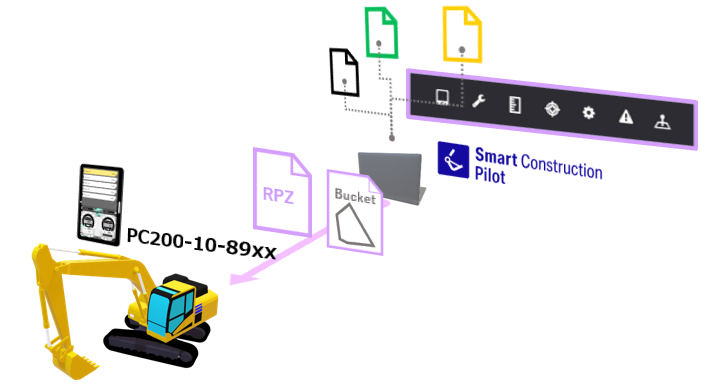

By linking the 3DMG machine and bucket files that you own to the created project, you can perform data transfer and other operations.
Procedures and Explanation

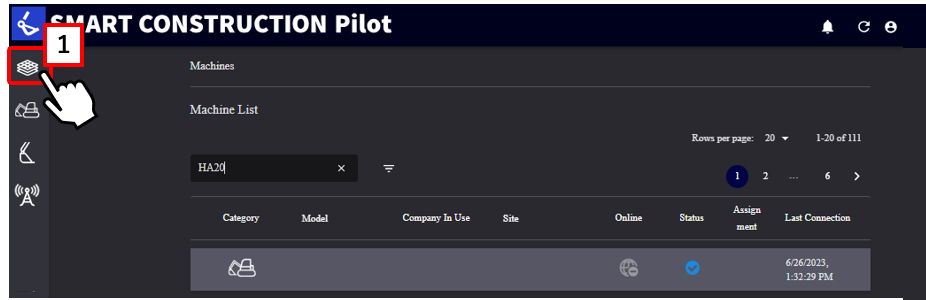

1. After starting PilotWEB, click on 【"1"the jobsite】 icon in the menu on the left and check the list of sites.
Projects in the list were created within your company or to which you have been invited by other companies.

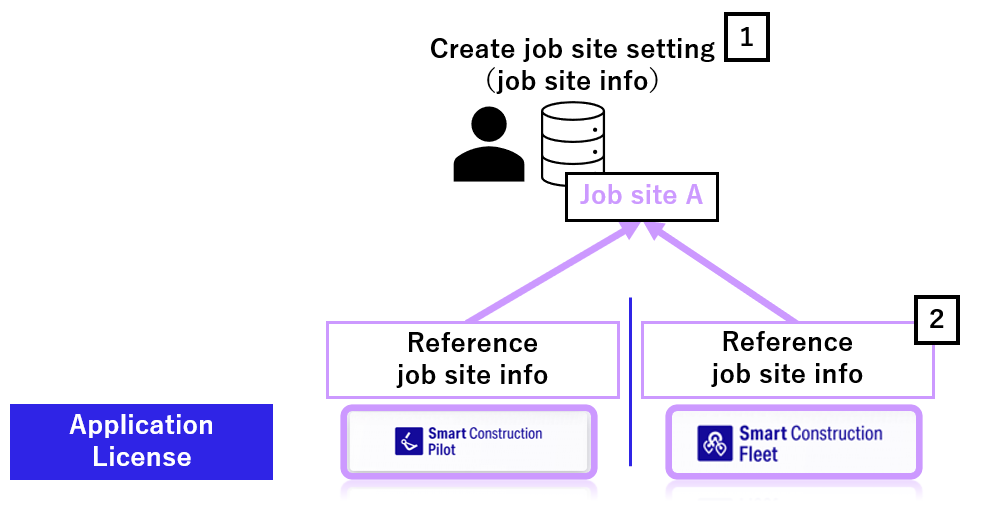

【”2"Each purchased application】 is connected to a 【”1"single site information】 created.
When linking to a solution (Smart Construction Fleet, Smart Construction Dashboard, etc.), the job site information must be the same as that of the linked application.
When creating a new project

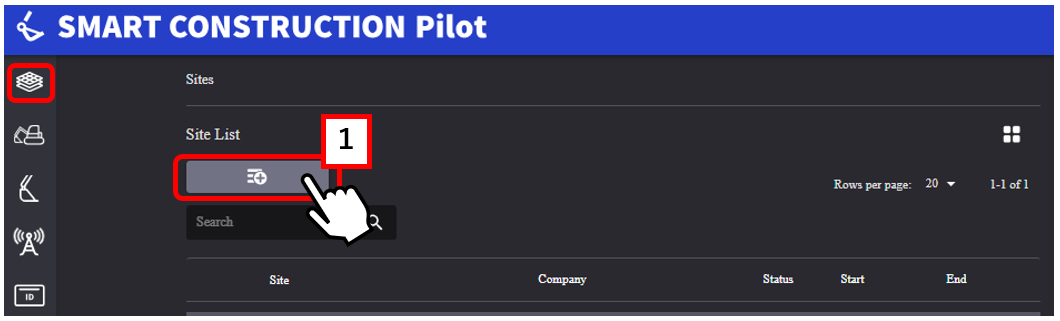

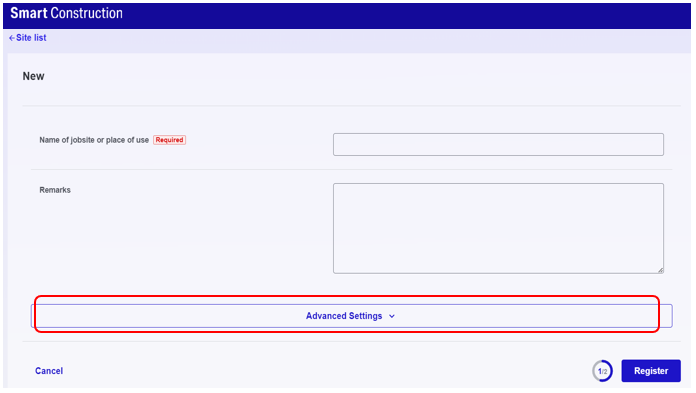

1′ Create a job site (site information) by entering the required information from 【”1"the plus】 button.

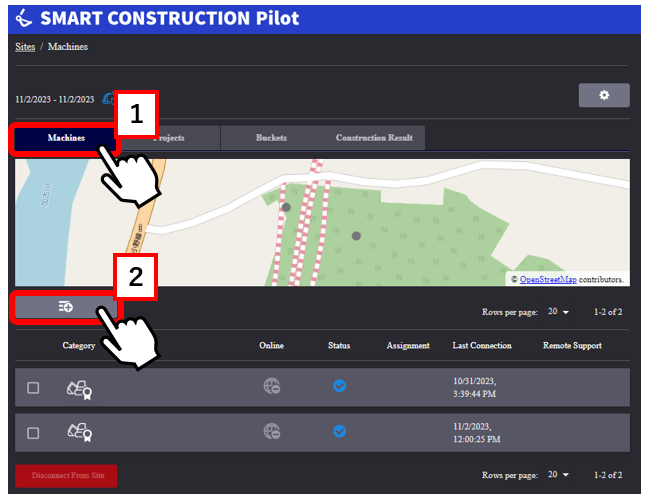

2. After creating a project or selecting a target project, select 【"1"the machine】 tab and link 【"2"your 3DMG machine】.

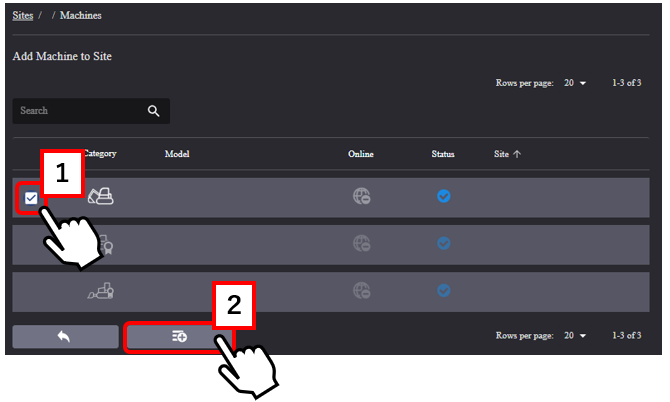

Check 【”1”the checkboxes】 for 【"2"the construction machine】 you want to link.
3. Once the machines are linked, you can transfer data from the Pilot WEB application.
