Introduction

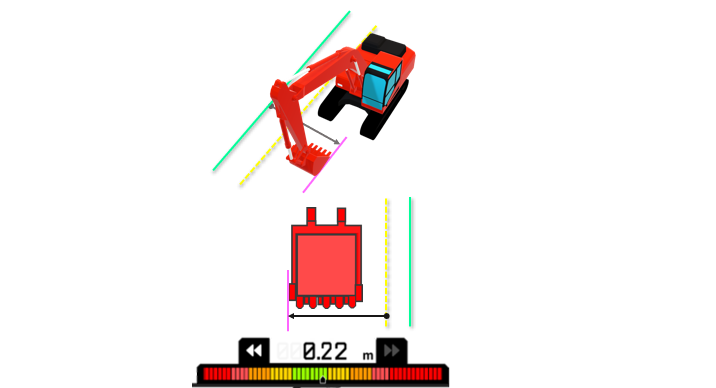

This article provides a detailed explanation on how to display and construct a caution and horizontal distance based on the lines in the top view used by the 3DMG construction equipment.
By excavating using the lines in the selected top view in the tablet application, the operator can proceed with construction based on the lines himself.
*Depth settings must be adjusted separately.
Procedures and Explanation

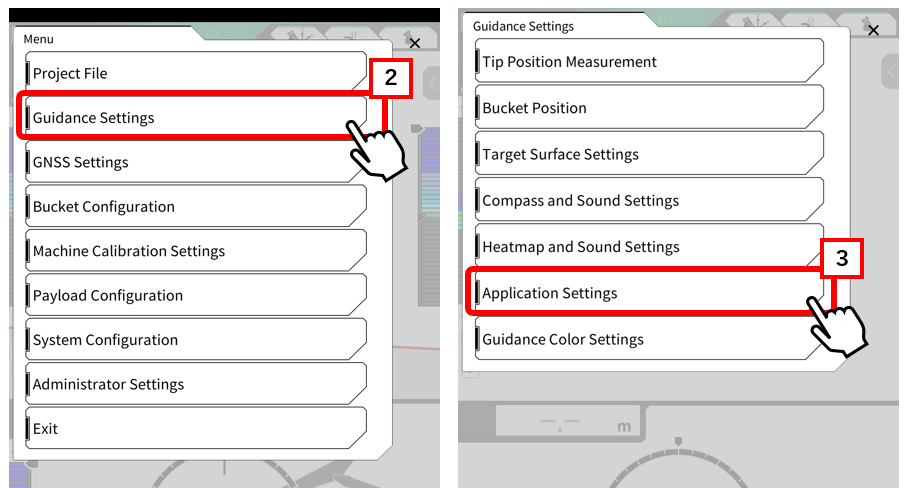

1.Select 【"1" gear mark】 and choose 【"2" Guidance Settings】 and tap 【"3"Application Settings】

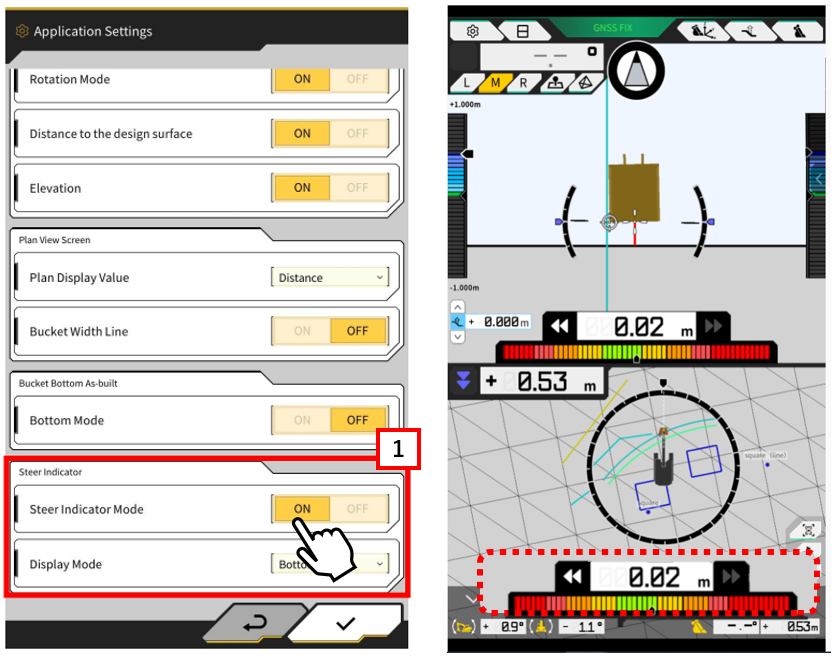

2. Turn ON 【"1" Steer Indicator Mode】 in the application settings and select the display mode.
Display mode: In the case of 2-screen layout, you can select the indicator display position from the top or bottom.
3. Tap 【 "1" side menu】, select the top view layer in the project file, and select the cutting edge position to be used for guidance from L, M, and R.
4. Tap the Line Selection button, and select and check the 【"2" line】from the layer to be used for guidance.
In the polyline selection screen, tap the zoom slider and the crossbar to move to the line to be used.
*If necessary, create an offset line (e.g., yellow) by entering the amount of offset from the selected top view line (e.g., green).
Supplementation
・Steer Indicator Sound Settings

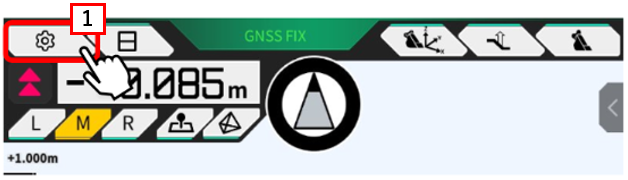

1. Tap the gear mark, select "Guidance Settings", and then touch "Steer Indicator and Sound Settings".
*Please turn on the steer indicator mode in the application settings beforehand.
1) 【"1" Selected line and offset line】is highlighted in the color you set.
2)【"2" Range and Sound Volume】 changes the indicator range, color, and the sound when the cutting edge used for guidance encroaches into the set range.

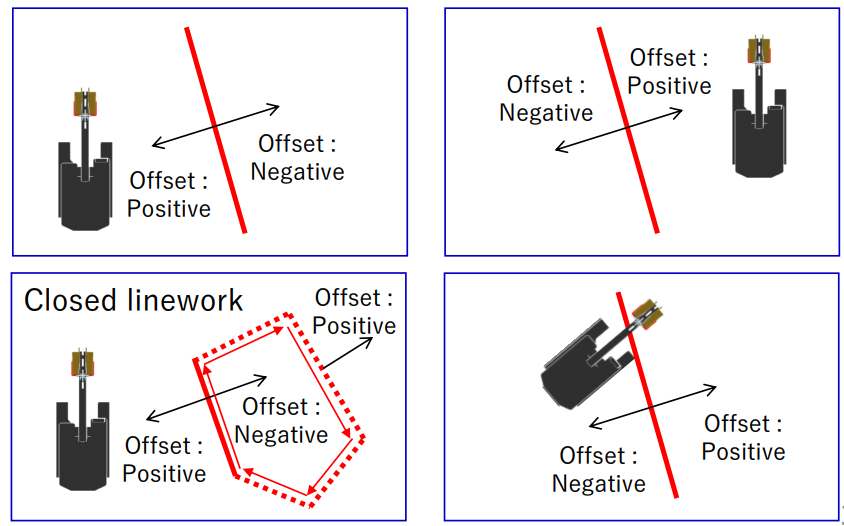

・Pattern of offset amount
Varies depending on the self-position of the line/construction equipment selected.
