How to customize the data display on the guidance screen.

Introduction

This article provides a detailed explanation on how to customize the data display on the guidance screen.
The operator can arbitrarily change the display format to whatever he/she wishes to use during construction.

Procedures and Explanation

1. Customize the display color

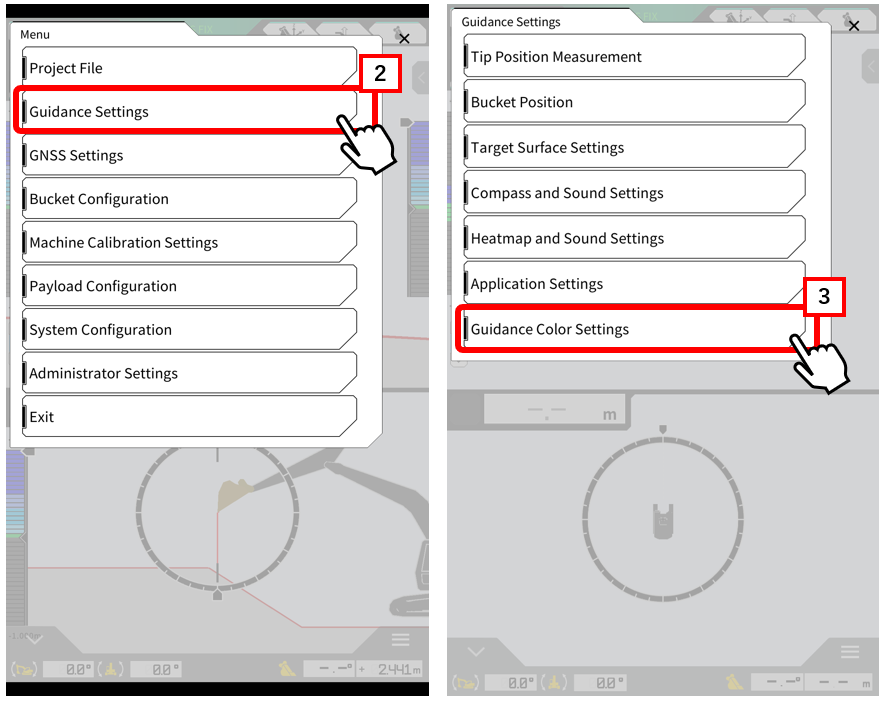

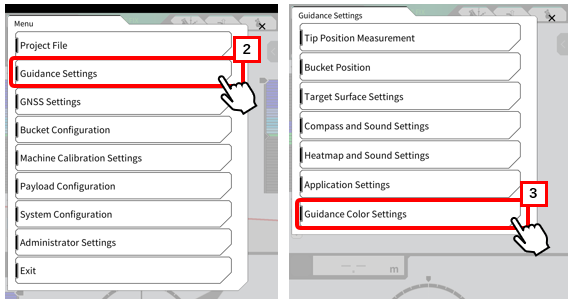

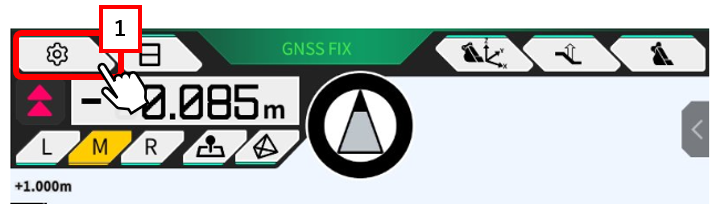

1) Select 【"1"the gear mark】and Choose "【"2"Guidance Settings】, and tap 【"3"Guidance Color Settings】.

) Change the color displayed on the guidance as desired.

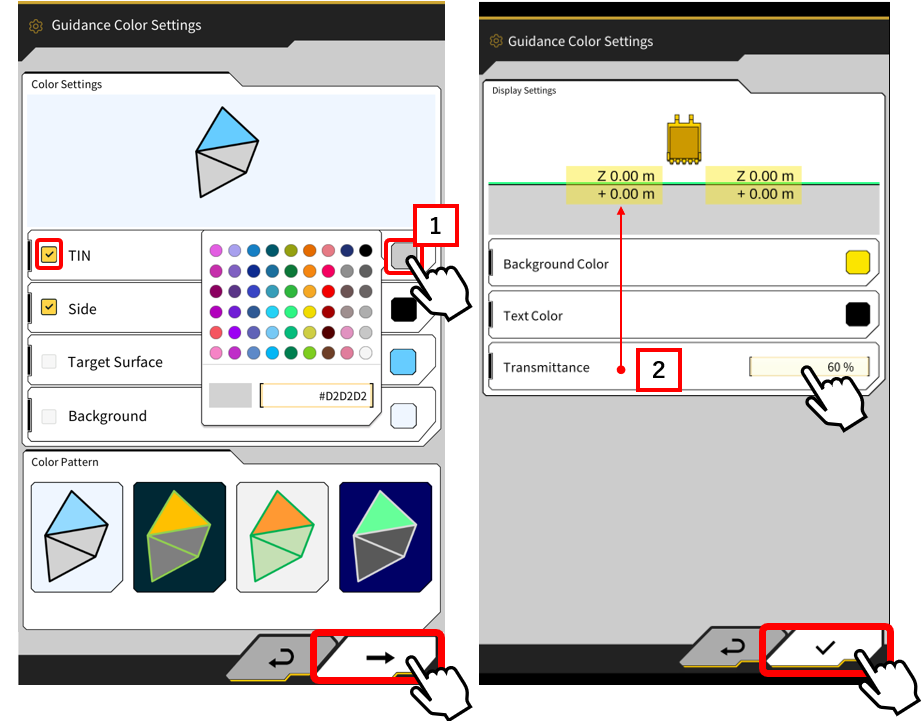

Tap 【”1"the square】 icon in Color Settings to customize the color display.
Tap 【”2" Transmittance 】 to adjust to the background.

2. Customize the Focus Point
1) Select 【"1"the gear mark】and Choose【"2"Guidance Settings】, and tap 【"3"Application Settings】.



2）Select the cutting edge or body center arbitrarily in 【”1"Focus Point】 and touch the check mark.

3. Customize the bucket display
1) Select "the gear mark" and choose "Guidance Settings", and tap "Application Settings."

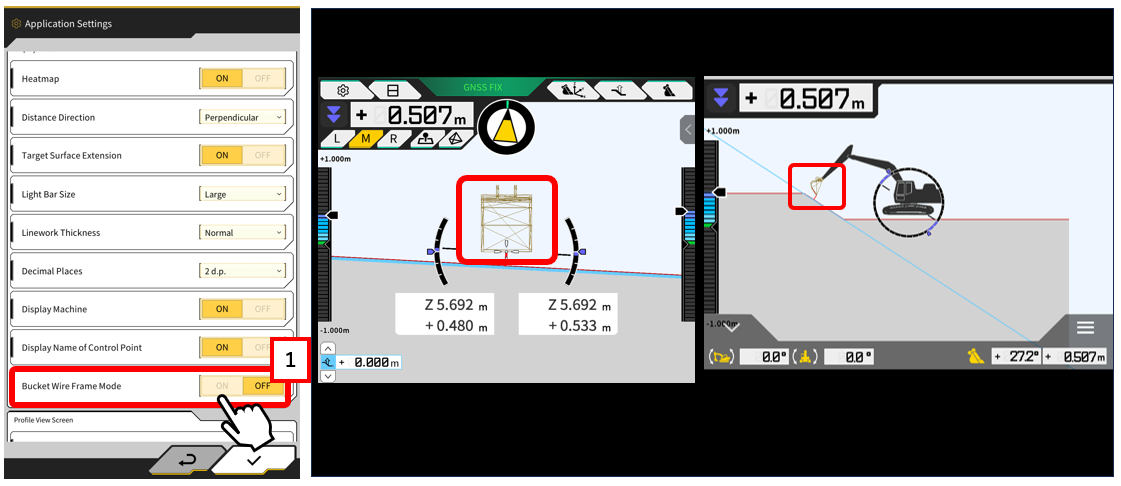

2) You can choose the display as wireframe or illustration by ON/OFF in 【"1"Bucket Wire Frame Mode】.


4. Customize display values and distance display

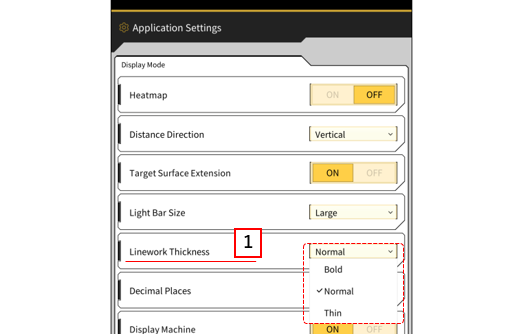

1) Open the menu, select "Guidance Settings", and tap "Application Settings."

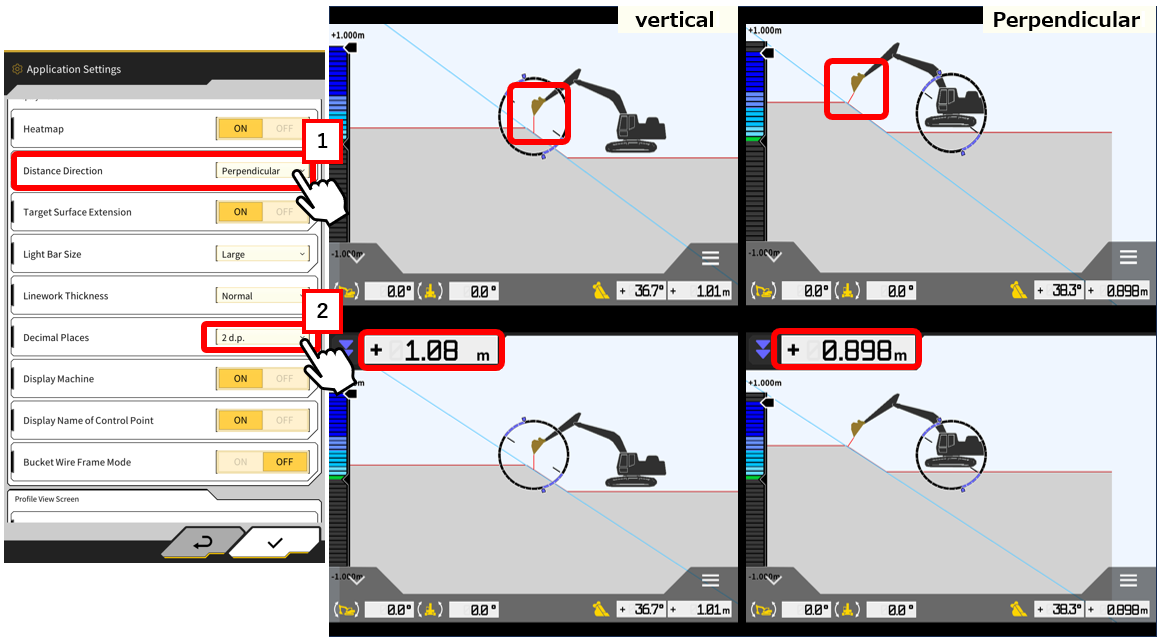

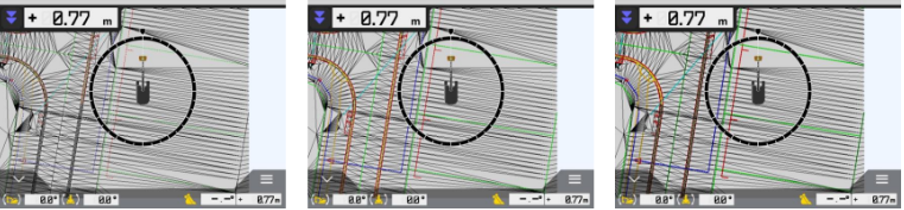

2) Tap the 【"1"Distance Direction】, and select "Vertical" or "Perpendicular".
*Vertical distance is only available when the target surface is selected

3) Touch the 【"2"Decimal Places】, select 2 d.p or 3 d.p, and touch the check mark.

Supplementation

Rotation Mode for profile and section view

・The drawing in the screen can be fixed or rotated according to the tilt of the car body.

Profile display rotation mode
1) Open menu, select "Guidance Settings" and tap "Application Settings".

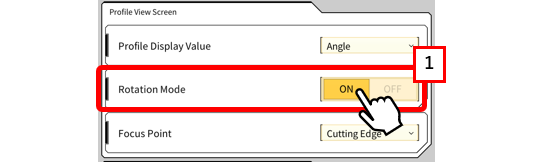

2) Select 【"1"Rotation Mode】 ON of "Profile View Screen" and touch the check mark.

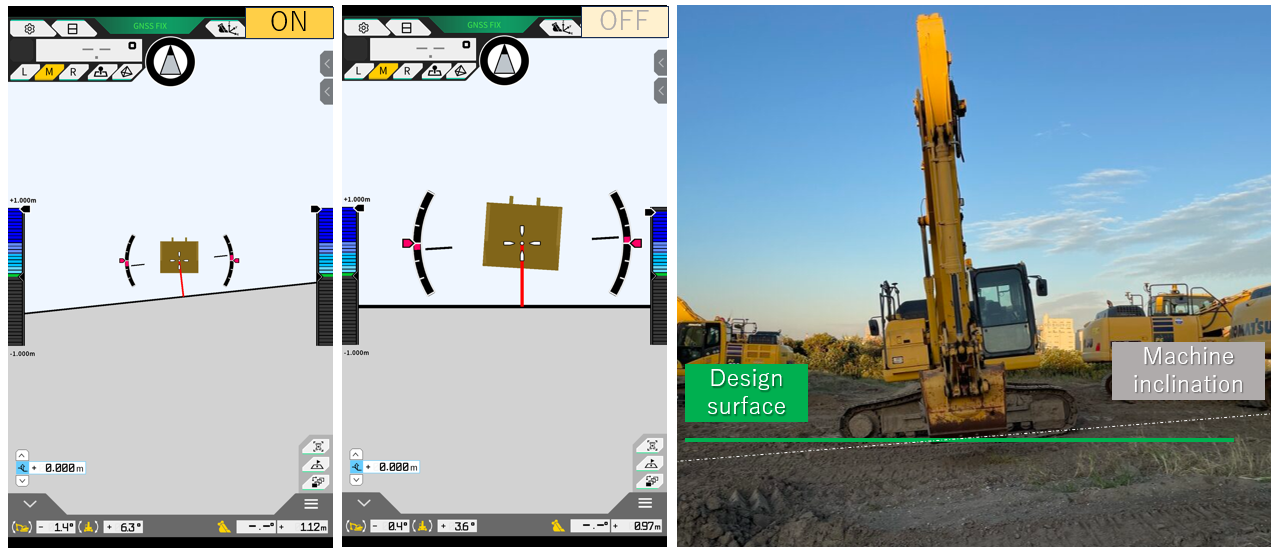

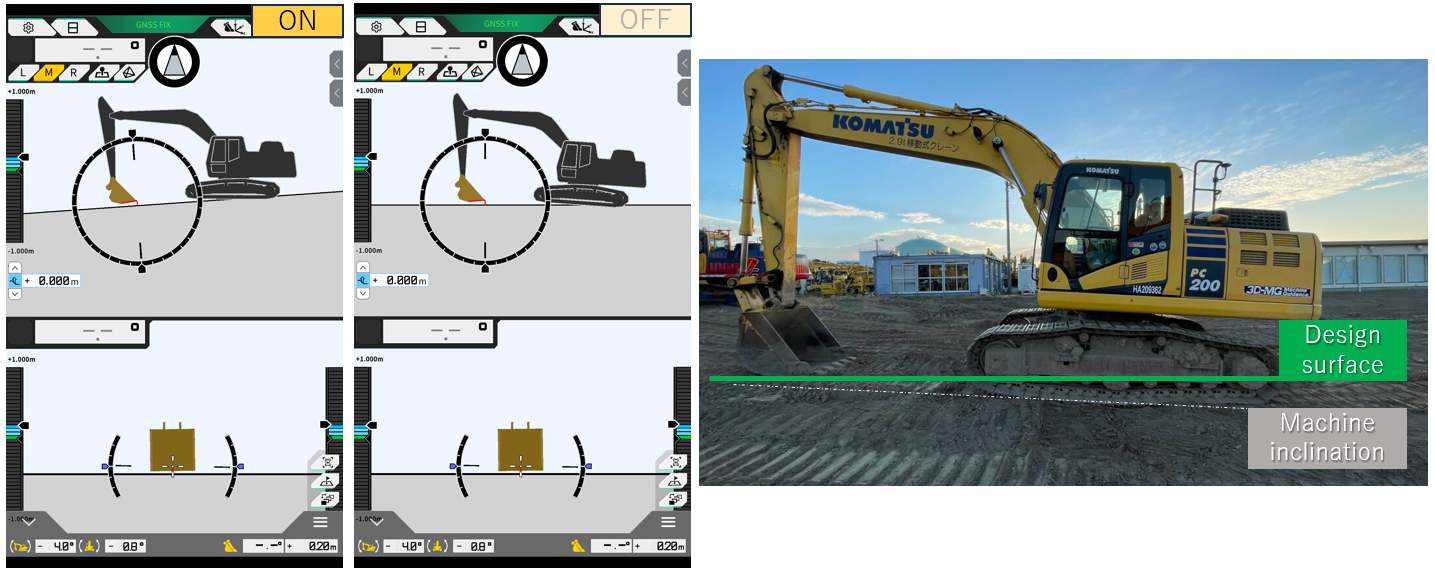

ON: The drawing of the machine is fixed, and only the design data is rotated according to the posture of the construction machine.
OFF: The drawing of design data becomes fixed, and the drawing of the construction machine is displayed according to the actual posture of the machine.

Section Rotation Mode
1) Open menu, select "Guidance Settings" and tap "Application Settings".

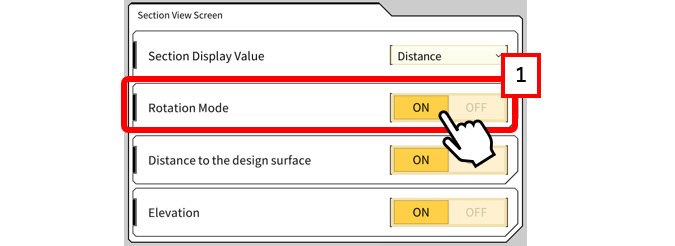

2) Select 【"1Rotation Mode】 ON or OFF of "Section View Screen" and touch the check mark.
ON: The bucket is fixed and only the design data rotates according to the posture of the construction machine.
OFF: The design data is fixed and the bucket is displayed according to the actual posture of the machine.

Tilt Bucket Function
・Additional layout screens are available only when using the tilt bucket.

1) Open menu, select "Guidance Settings" and tap "Application Settings".

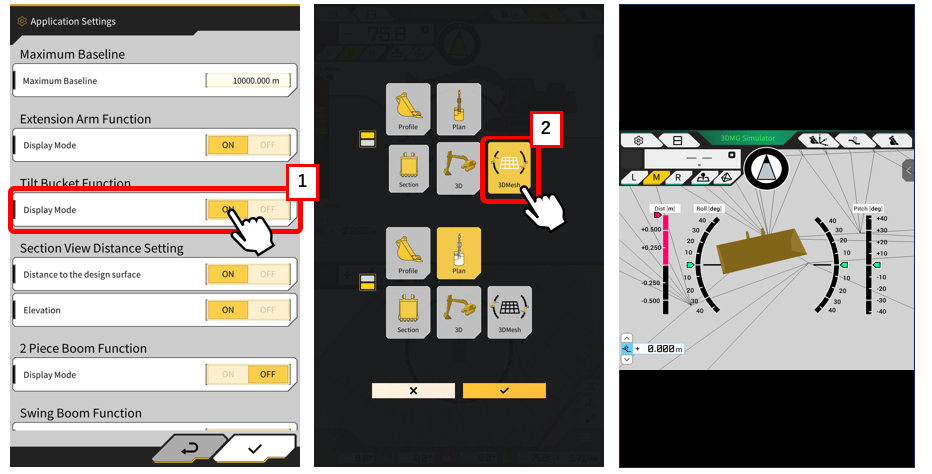

2) After turning ON of 【"1"Tilt Bucket Function】, go to the guidance screen's layout menu and select 【"2"3DMesh】.
