How to check relation information of 3DMG on the web site

Introduction

This article provides a detailed explanation on how to properly manage and check the related data of your 3DMG construction equipment on the web.
You can manage the status of construction equipment, use data in case of trouble, and output and use valid data from the Web.

Procedures and Explanation

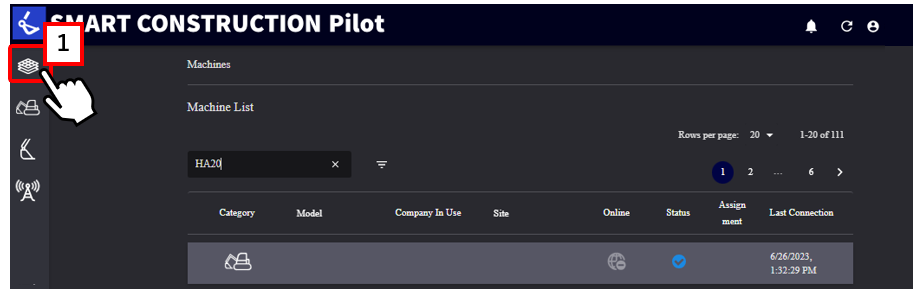

1. Open Smart Construction Pilot Web and click 【”1"the machine】 icon

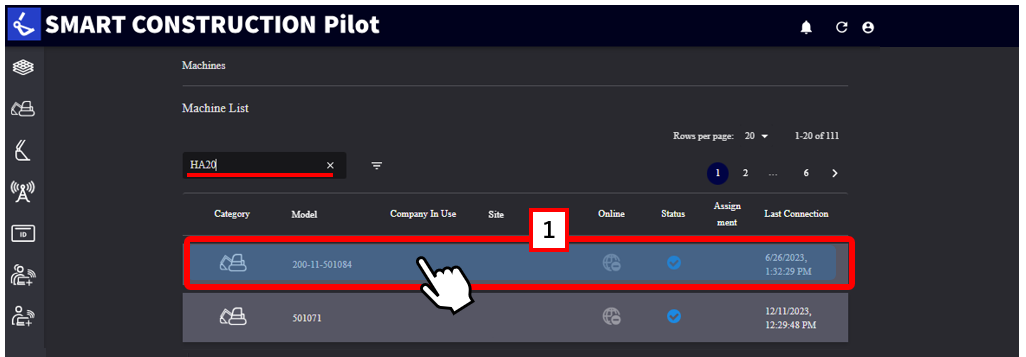

2. Search by serial number of the machine or controller for which you want to check the setting information, and click 【"1"the construction machine】 that hits the search.

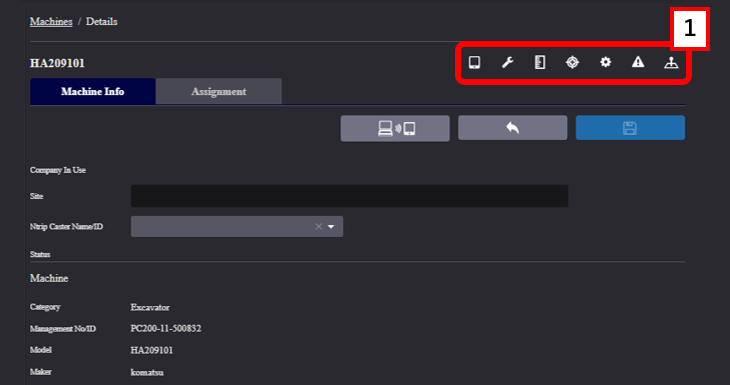

3. Click each icon to output related data as needed.

What is 【"1"related data】?

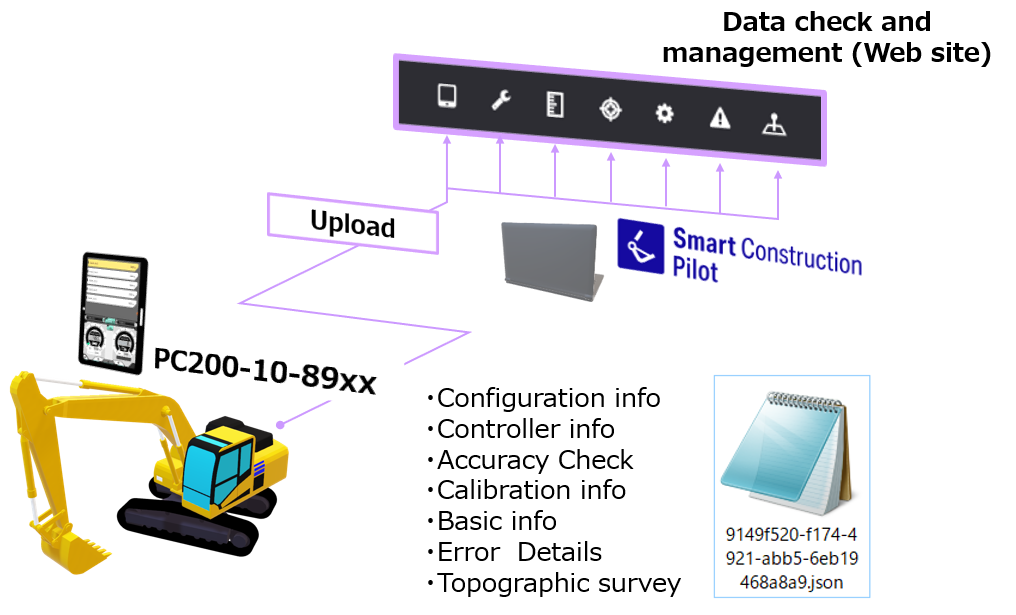

Configuration info, Controller info, Accuracy Check, Calibration info
Basic info, Error info, and Topography survey are included.

Supplementation

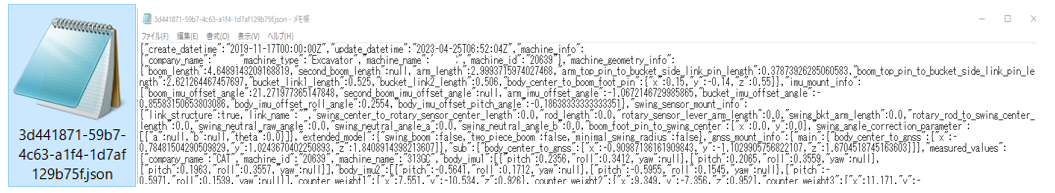

The downloaded data contains the configuration information that has been stored in the tablet application and can be checked by opening it in "Memo" or other applications.

Stored information
Update date/time (UTC)	Name of bucket file	Name of project file	Name of design plane
Offset type (Perpendicular or Vertical)	Offset value	Matching value	X=E Y=N Z=Z
Correction information type	GNSS Type	Satellite mask angle
Server Name	Server Name URL	Port No.
User ID	Mount point	Wireless communication speed
Tablet model name	OS version	Application version

The setting information in the controller is stored, and it can be checked by opening it with "Memo" etc. when downloading.

Stored information
Creation date/time (UTC)	Update date/time (UTC)	Controller information
Controller information Manufacturer and model	Controller information Firmware version	GNSS receiver Main/Sub Each model/version
Each IMU sensor Manufacturer/model/ version

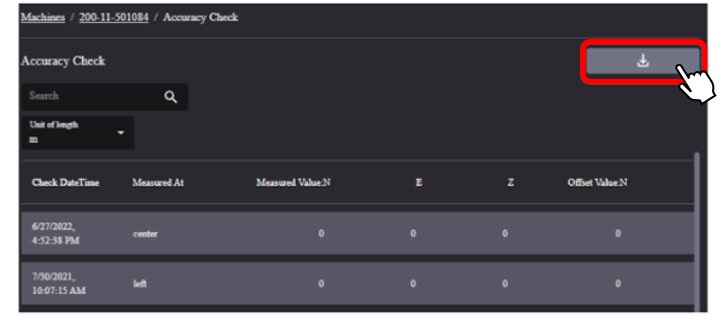

You can download the results of the cutting edge confirmation on the machine guidance.

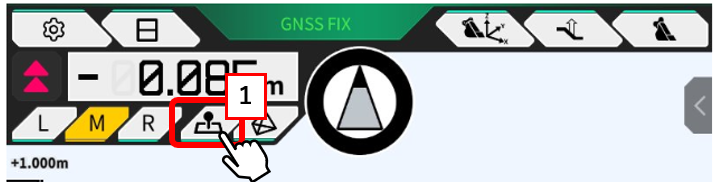

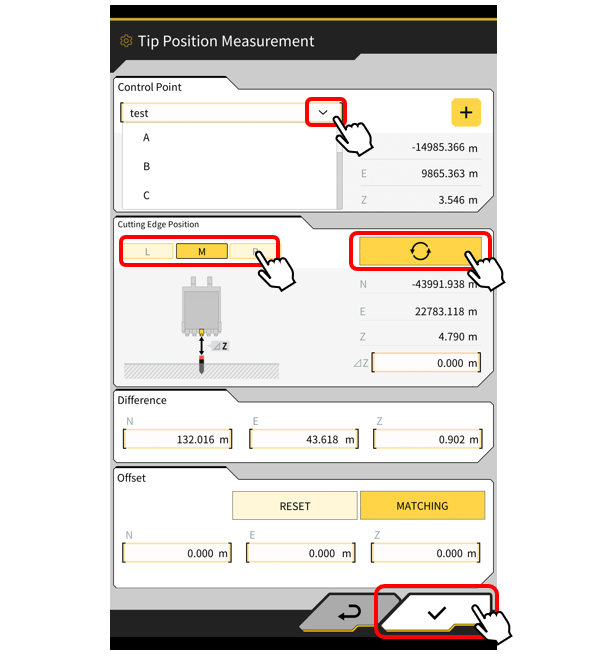

1) Tap the icon below to measure 【"1"the cutting edge position】.

2) The results can be 【"1"downloaded】 in CSV format on the web.

The calibrated data will be stored.
When replacing the controller, the data from that time can be used for restoration, etc.



Contains information set in the controller

Information on error signals from connected sensors/harness cables and connection errors in GNSS or with the controller are stored.

You can download the results of measuring the terrain with the cutting edge on the machine guidance.

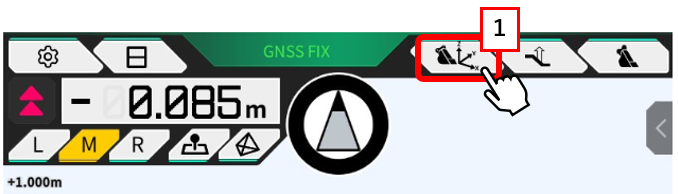

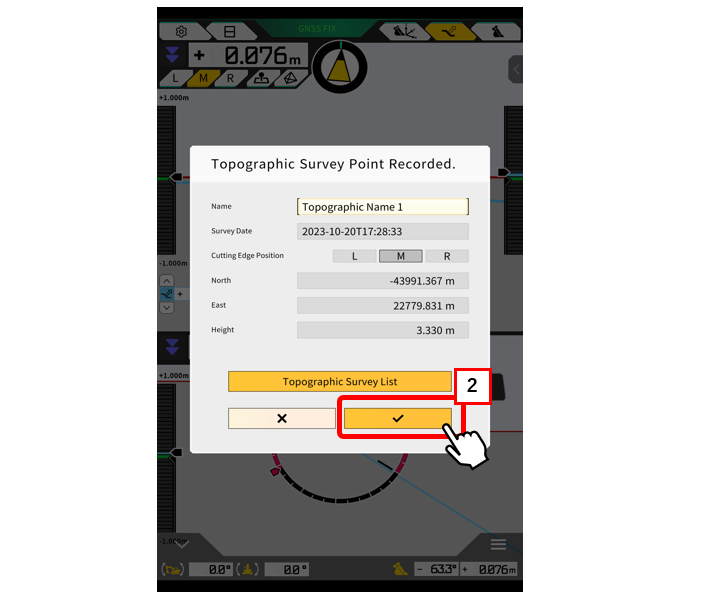

1) Tap the 【"1"icon】 below to measure 【"2"the terrain at the cutting edge】.

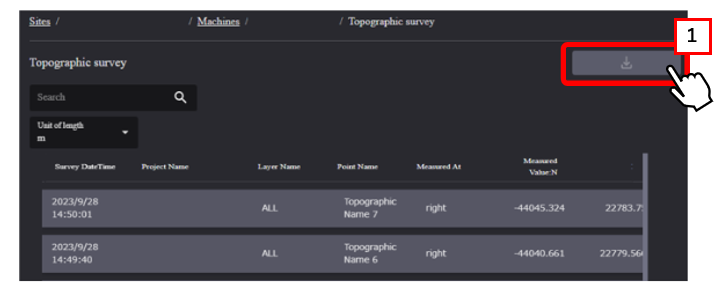

2) The results can be 【”1"downloaded】 in CSV format on the web.

Supplementation

How related data is stored

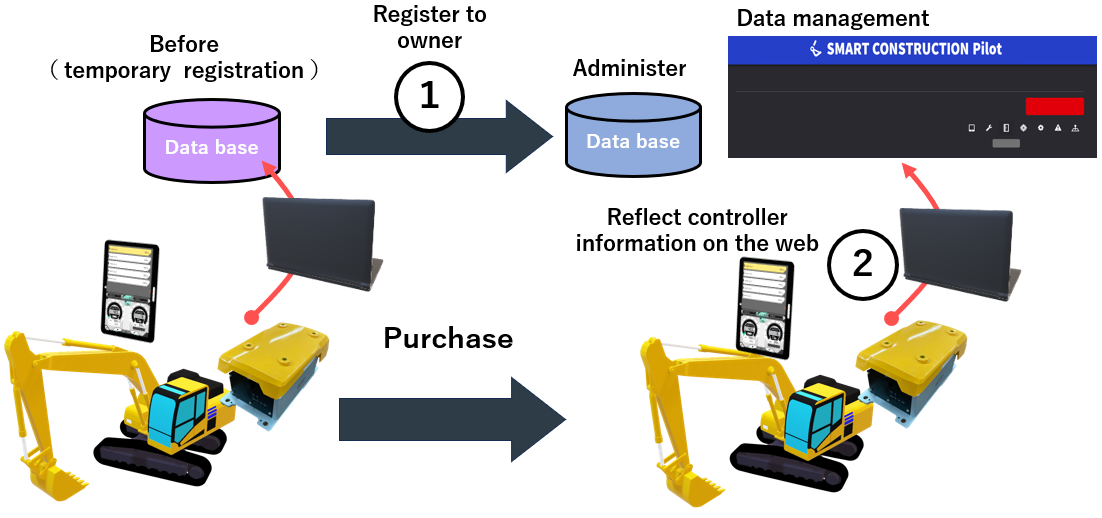

After receiving the product set from the distributor, the administrator logs into the Customer Portal, starts Smart Construction Pilot from the application list, and confirms that the controller information (construction machine) is reflected in his/her company.
