Issue
How to retrieve and view the body calibration file from the server.
Answer/Cause
1) Where the body calibration file stored and how to download it.
2) How to view the body calibration file
Explanation/How to deal
1)Please follow the procedure below (see attached image)
- Open the web version of Smart Construction Pilot and open the detail screen of the machine for which you want to obtain a backup.

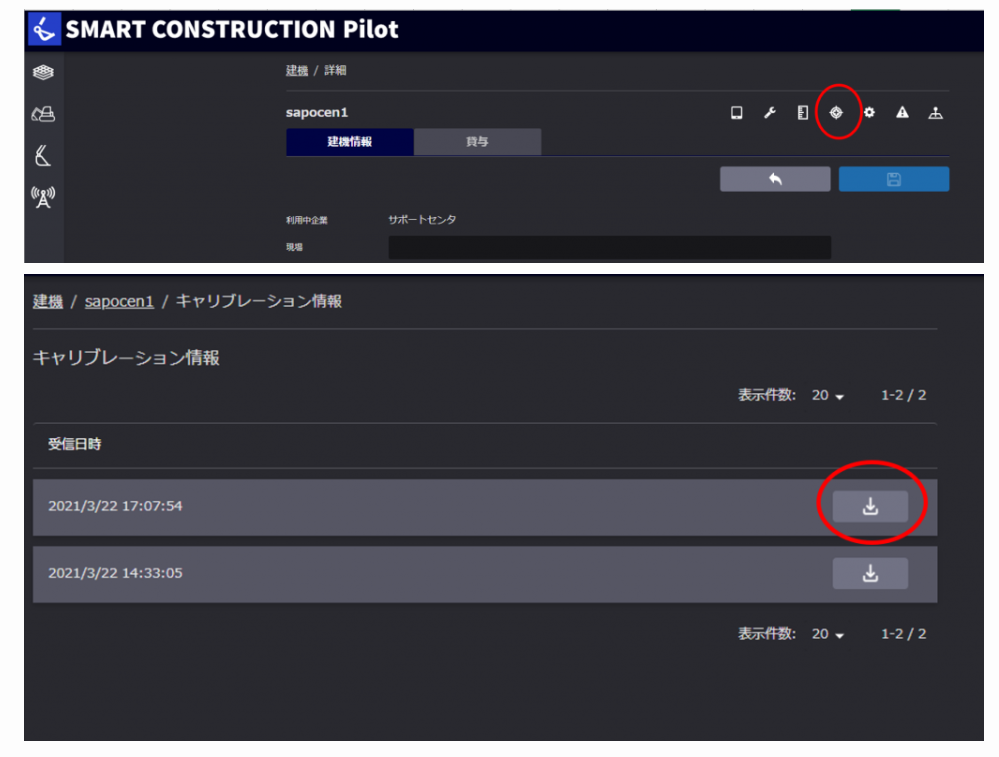

- Click the icon circled in red in the two images below to download the file with the most recent date and time.
- If a ".json" format file is downloaded, it is a success.
2)
- The ".json" file can be viewed and edited with a text editor.
- When you open the file, it looks like a list of alphanumeric characters, but the area between "machine_info" and "measured_values" is the important part for performing the cutting edge calculation.

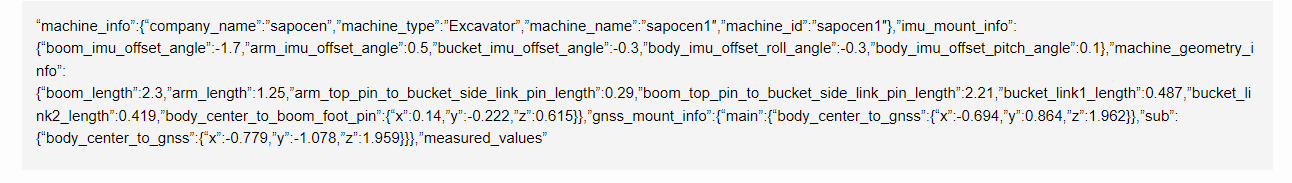

- An example is pasted below.
