The machine display doesn't match the actual machine movement

Issue

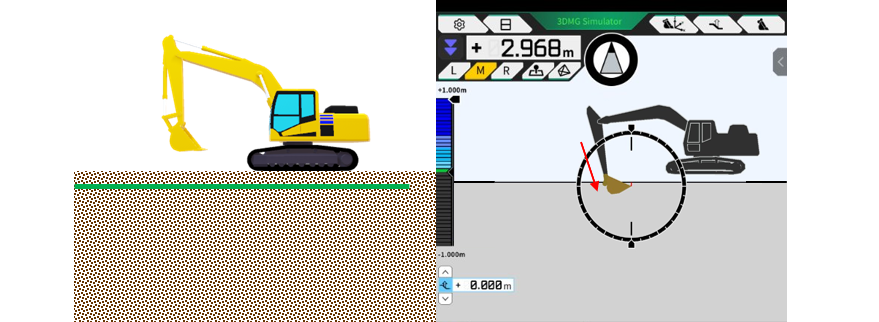

Construction equipment moves slowly on the screen, even though the actual machine is stationary.

Answer / Cause

The signal from the IMU sensor may not be stable because initialization has not been completed correctly.

Explanation / How to deal

If the location is unstable or the engine vibrates heavily, find a place where the machine is stable and restart the engine by following the steps below.

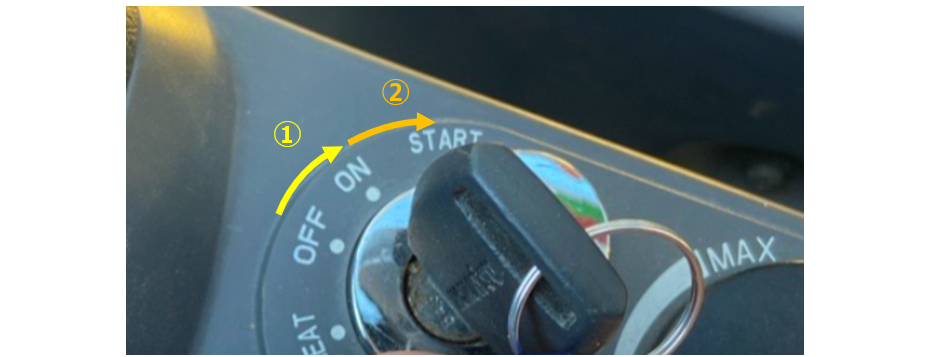

1.➀Wait 5 seconds with the accessory ON.

Hold stationary for 5 seconds in this stale to complete initialization successfully.

2.  After 5 seconds of standing still, turn the key deeper➁ and start the engine.

If the issue repeats even after the above measures are taken, or if it occurs under the construction, it is necessary to confirm that the sensor and connector are properly matched and replace the sensor to check if the problem eliminate or not.
