How to display the bucket angle to the design surface

Introduction

This article provides a detailed explanation on how to display the bucket angle relative to the target surface on the guidance screen.
By displaying the bucket angle, you can check the angle to the design surface while constructing.

Procedures and Explanation

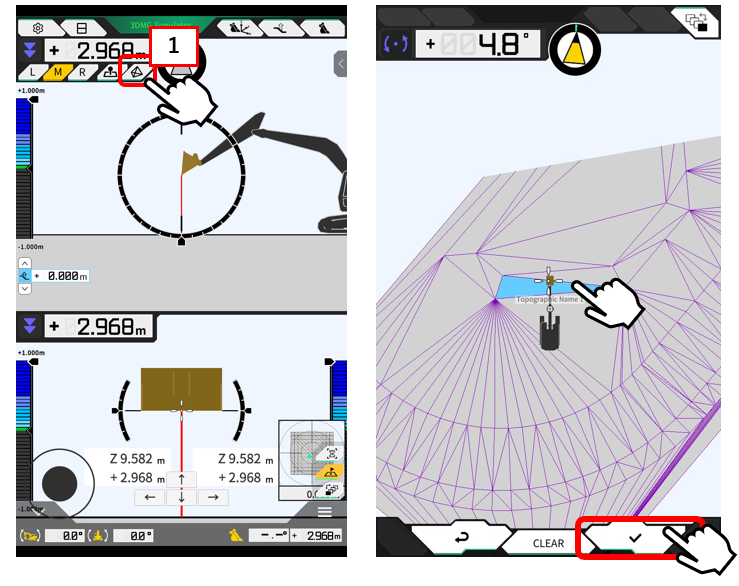

1. Tap 【"1"the TIN view】 icon, and select the TIN data range for which the angle is to be displayed then touch the check mark.

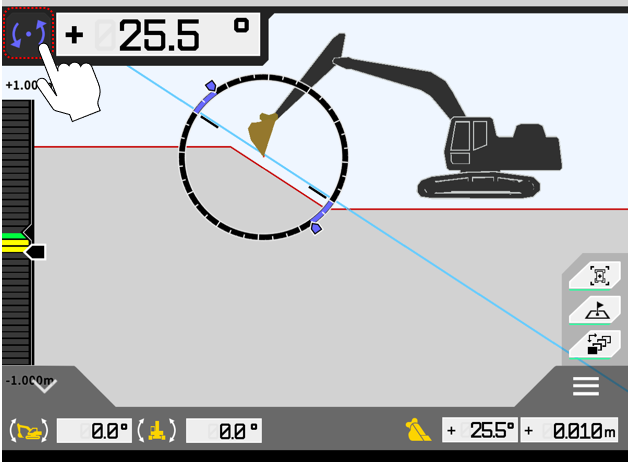

2. Tap the red frame to display the bucket angle to the target surface (distance display → angle display).

Supplementation

The bucket angle is displayed only when the target surface is selected.

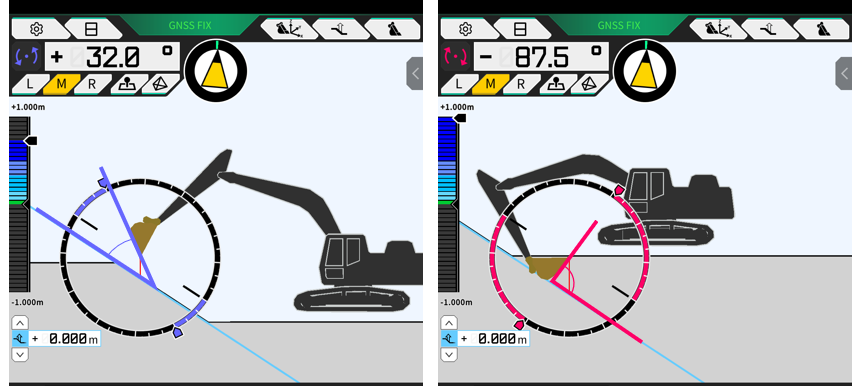

Refer to the following image for the bucket angle display

Blue line：43.1° to the target surface

Red line：-93.9° to the target surface
