Introduction
This article provides a detailed explanation on how to change the bucket file on the guidance screen when the bucket in use is changed.
By unifying the bucket and bucket file used, it is possible to check the correct cutting edge accuracy and use guidance during construction.
Procedures and Explanation

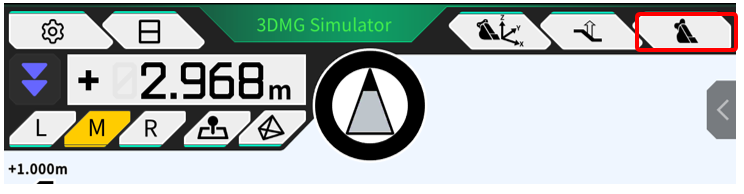

1.Tap 【”1"the bucket】 icon on the guidance screen to check the bucket file currently in use.

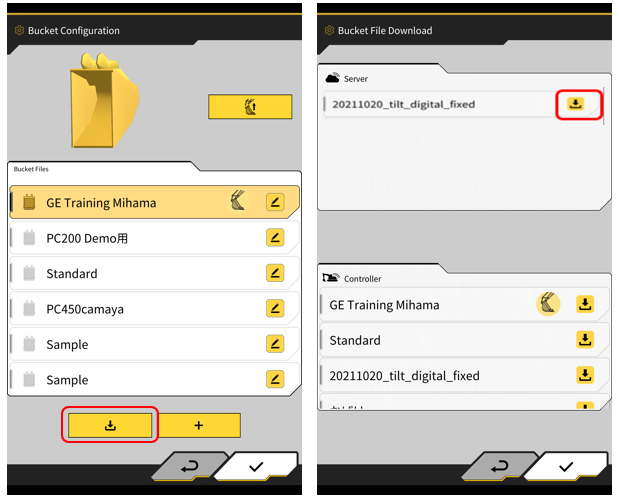

2.The bucket file currently in use is in yellow.
When the new bucket file data is transferred, it will be displayed in the 【"1"Server】, so 【”2"download】 it and check it to store it in the bucket files list.

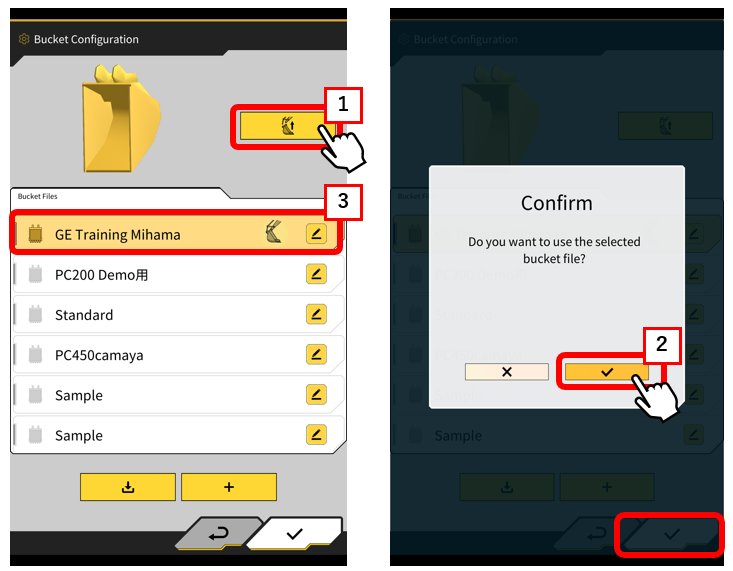

3.Select the bucket file to be exchanged from the bucket files list, click 【"1"the exchange icon】, tap 【”2"the check button】 in confirmation.
Touch the check button again when the selected 【"3"bucket is highlighted in yellow】.
Supplementation
Data Management of Bucket Files
It is necessary to devise a management name so that the data matches the bucket in use.
(e.g., Assign a number to the bucket and use that number for the data name etc.)

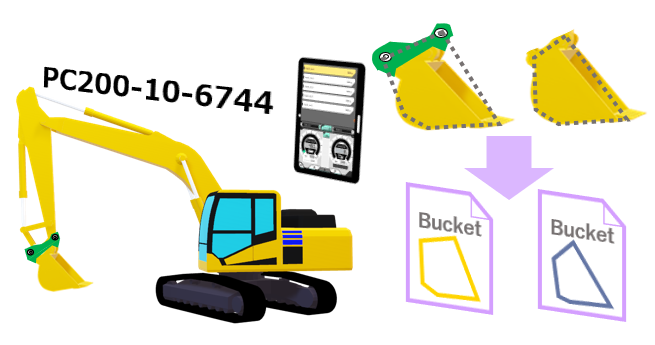

Calibration the bucket
The measurement points for file creation differ depending on whether there is a quick coupler or not.
It is recommended that files be created and managed in two separate patterns.

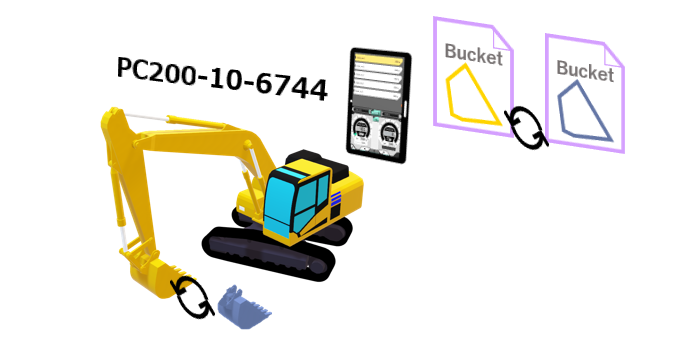

Exchange the bucket
If the bucket on the actual device is replaced, the bucket file need replaced in the tablet as well.
