Introduction
This article provides a detailed explanation on more about smarter ways to construct foundations.
The operator consults a plan view on the 3DMG monitor to confirm the digging line and area.
When the cutting edge reaches the surface to work, the operator is notified by sound guidance, the operator to work the initiative.
This reduces the amount of time and manpower required for auxiliary work, allowing fewer worker to do the work.
The more digging areas and complex in site the more effective the operator can be.
1 point
We recommend that the digging depth for each point be added in advance to the foundation drawings.
Procedures and Explanation
Let's introduce localization and get to the point of adjusting the two-point scale in the job site.
1. Convert the localization file and the scaled foundation work via the pilot web.
We recommend that the plan you use includes surrounding somthing buildings and roads to prevent the misstake about the direction and area.
fundaiton data【DXF Cad data】

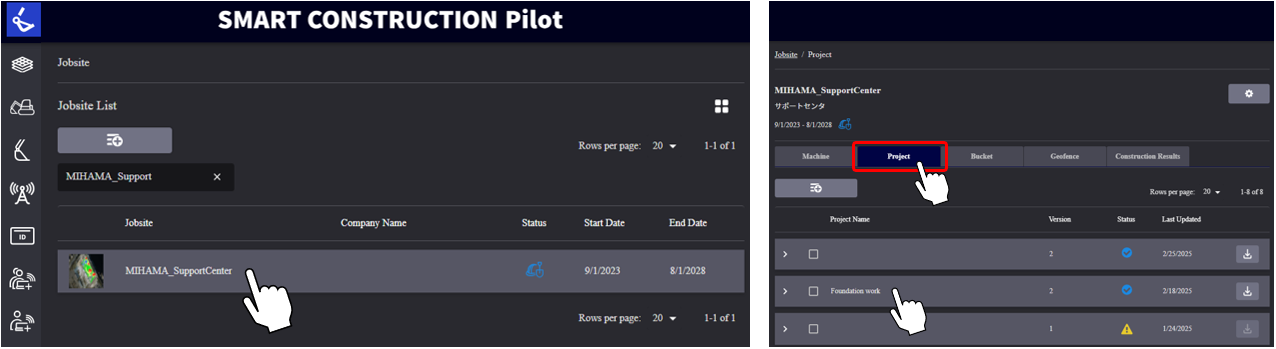

1)click the Smart construction Pilot.
2)click to Project file you created.

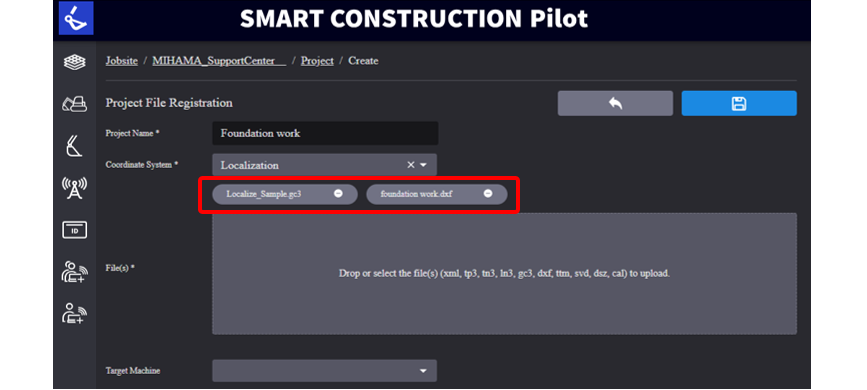

3)import the localize file【gc3 or cal】 and Foundation plane file【DXF file】on the Pilot WEB
２.you create the benchmark from the floor line after checking palne data correctly imported.
Set up a benchmark from floor line and place the cutting edge of the bucket on that benchmark.
This is to convert the benchmark height to satellite derived elevation (xxxx ft).
Example: FL-2inch = ??? ft (At this moment, nobody knows the elevation value. )

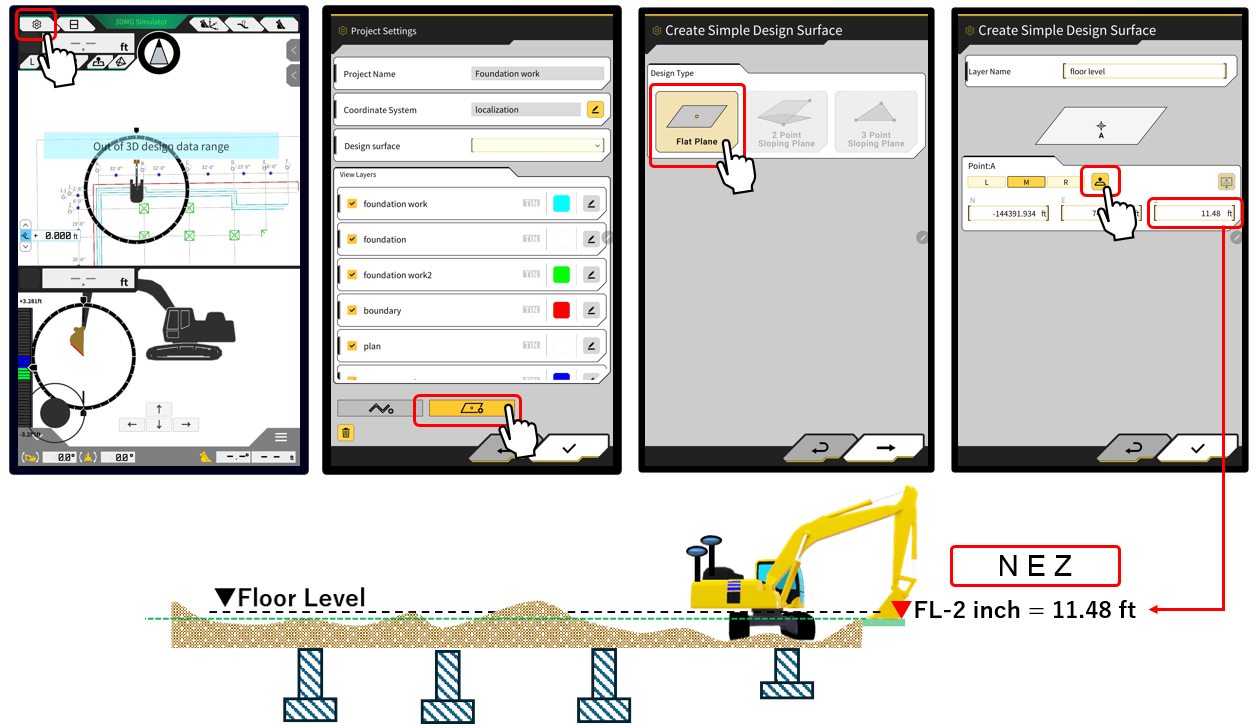

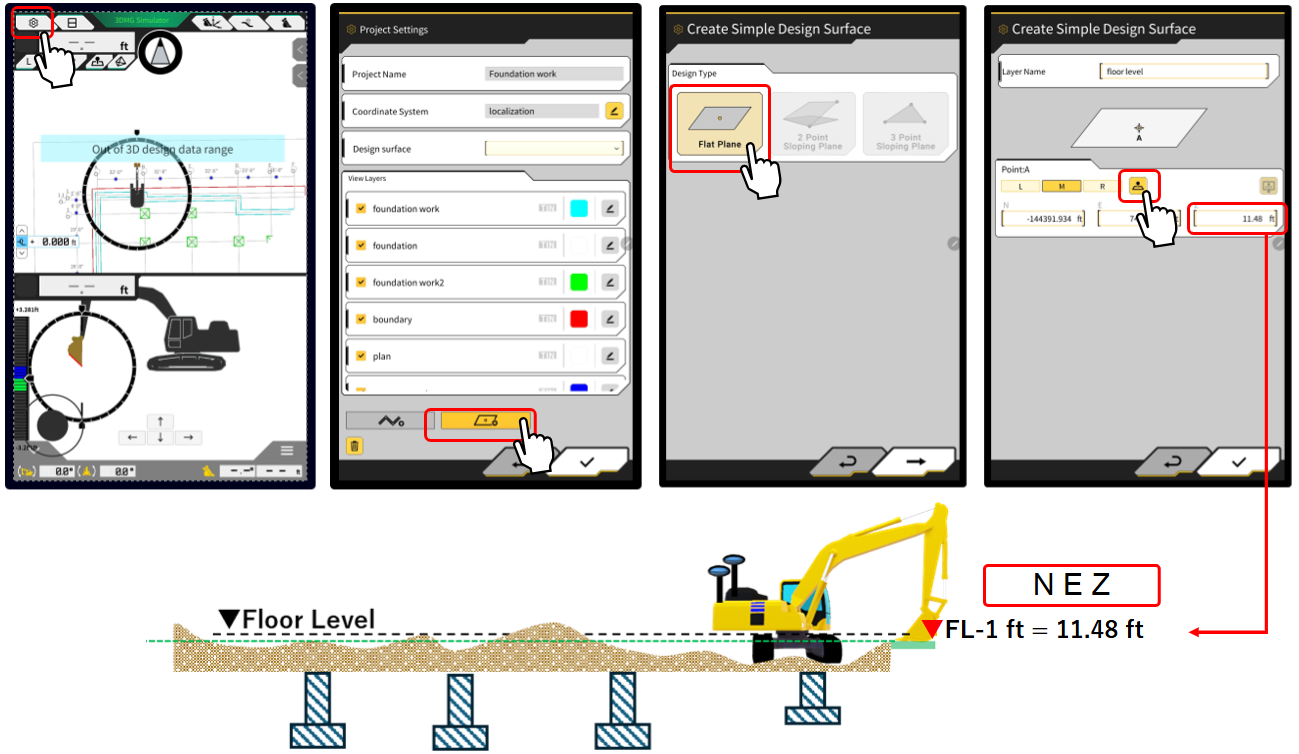

Set the bucket blade and measure FL -2inch = 11.48ft
Floor line is 11.64 Ft

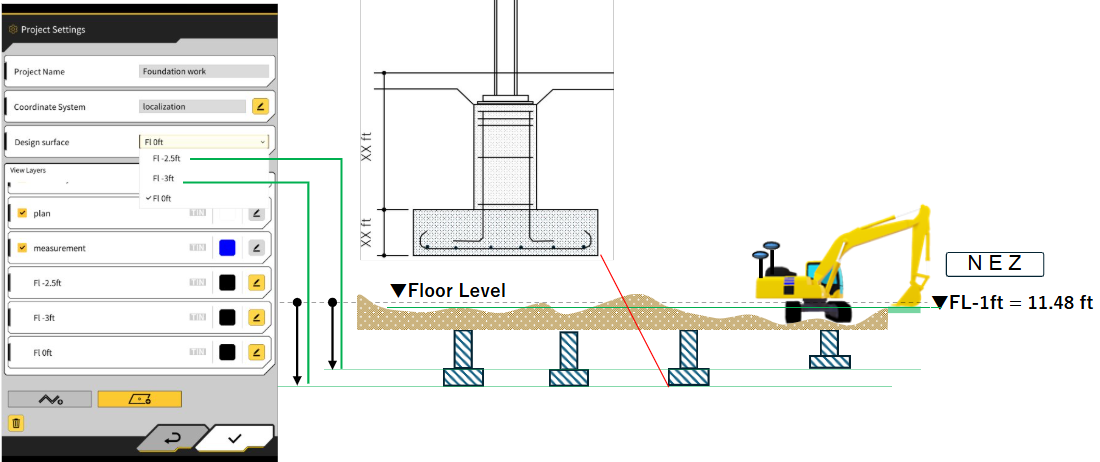

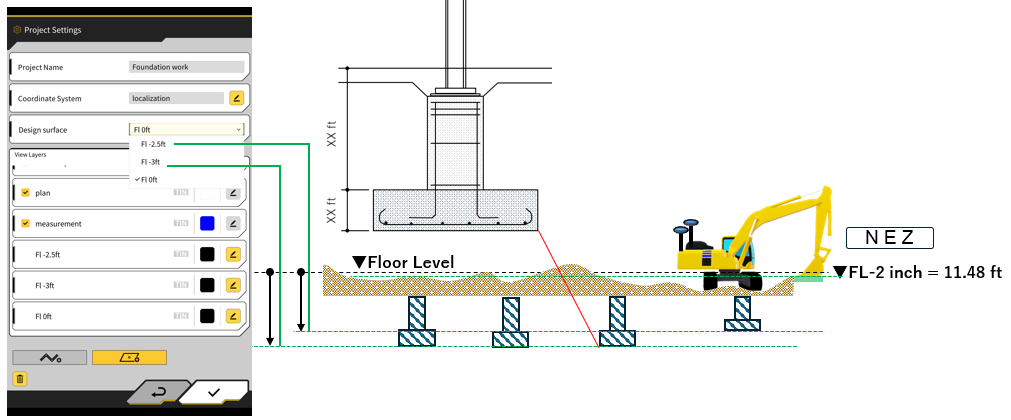

Check the digging depth (reference: depth from the floor line) from the cross section and use the Flat plane function to create the design data.

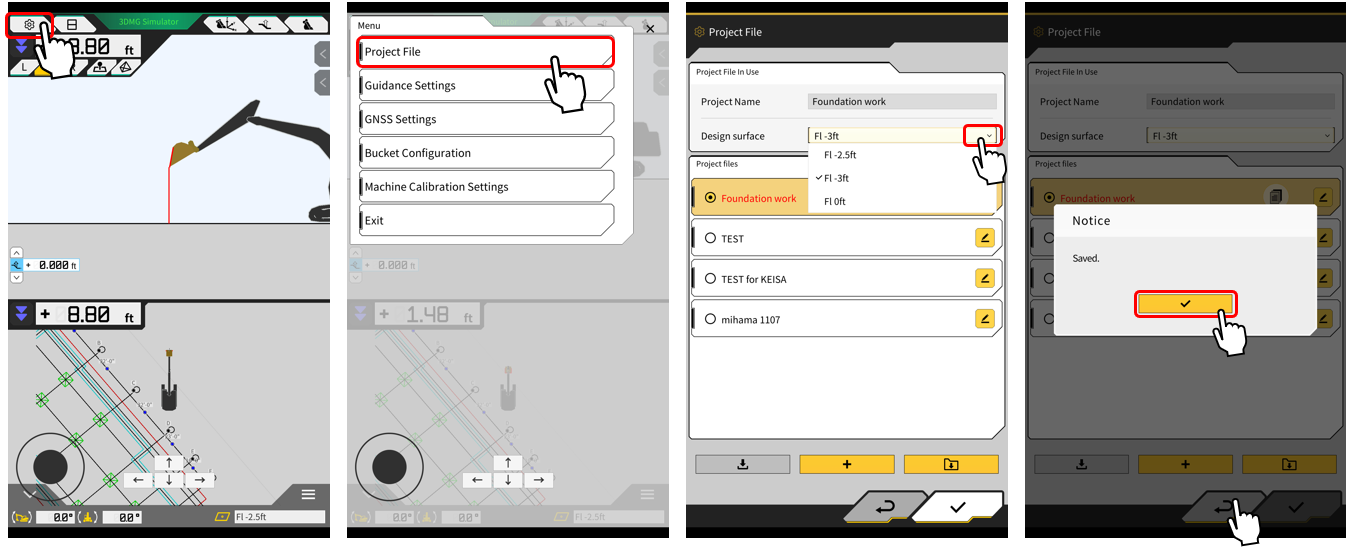

３.you create data for each Digging line.

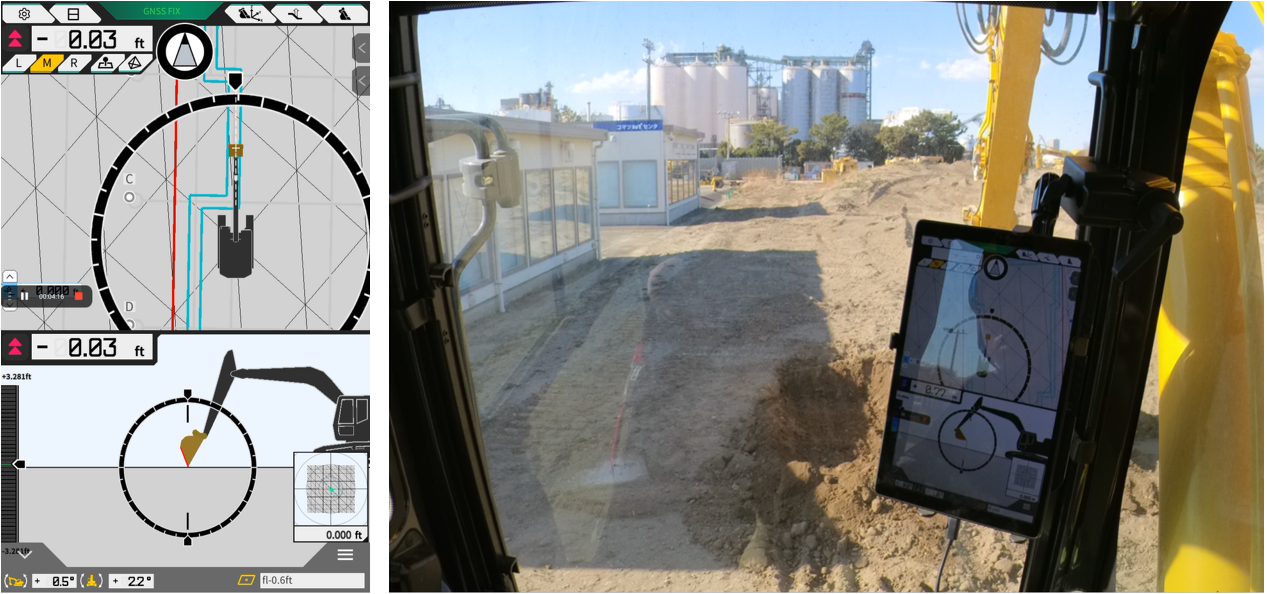

４.The operator can check the digging position by referring to the plan view displayed on the tablet and confirm the digging level by switching data layers.
Tablet screen allowing work no marking on job site.
