How to get and save the coordinate values of the cutting edge

Introduction

This article provides a detailed explanation on how to acquire and save coordinates from 3DMG construction machine cutting edge location information.
By acquiring and saving the coordinates of the cutting edge, you can perform simple observations and share the site status with the manager.

Procedures and Explanation

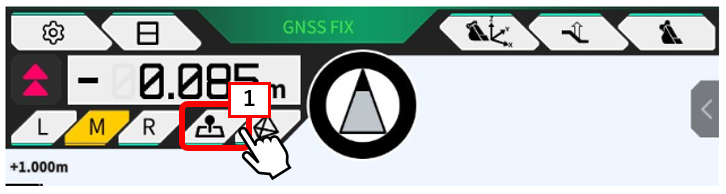

1. Select the measurement location (L, M, R) on the guidance screen and tap the 【"1"pin"】 icon.
*Place the bucket on the spot you want to measure beforehand.

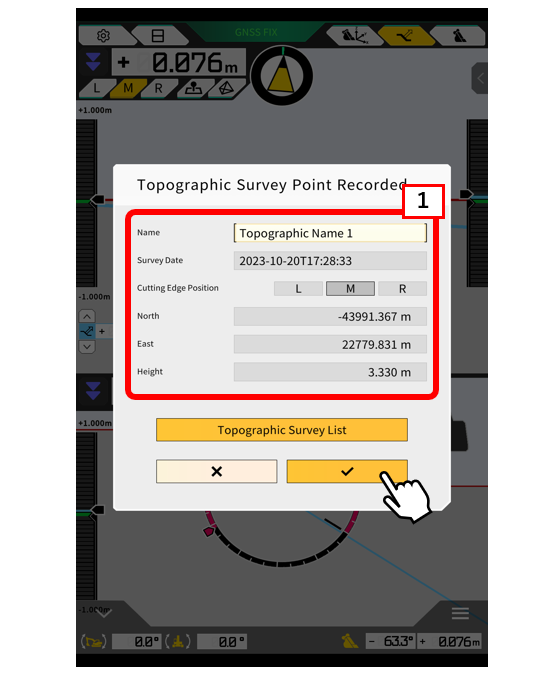

2. 【"1"The history of points and positions (L, M, R) 】acquired at the cutting edge will be displayed at the same time as the tap.

3. Tap the check mark after confirming the acquired data.

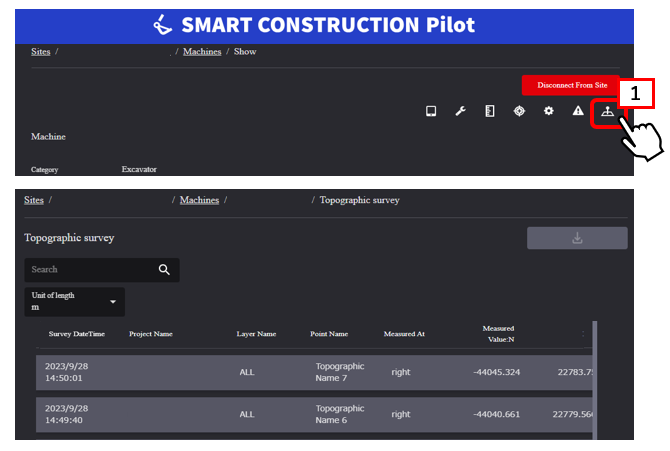

【"1"The points】 are saved not only in the tablet but also in the Pilot WEB management application.

Supplementation

How to check the acquired points (in the tablet)

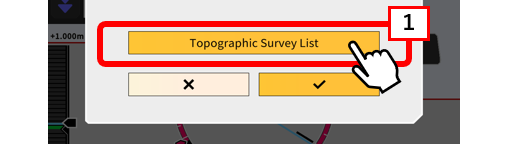

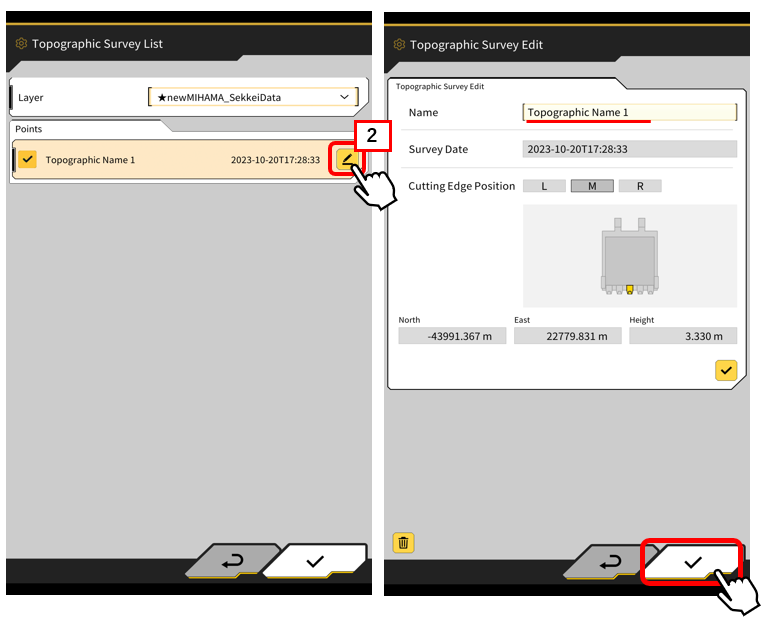

・Tap on 【"1"Topographic Survey List】 to display the acquired points, and then tap on 【"2"the pencil】 icon to change the name.
