How to set up the project data for work

Introduction

This article provides a detailed explanation on how to set up design data into a 3DMG construction machine.
You can download and import data created by the manager or utilize data created in a simplified manner.

Procedures and Explanation

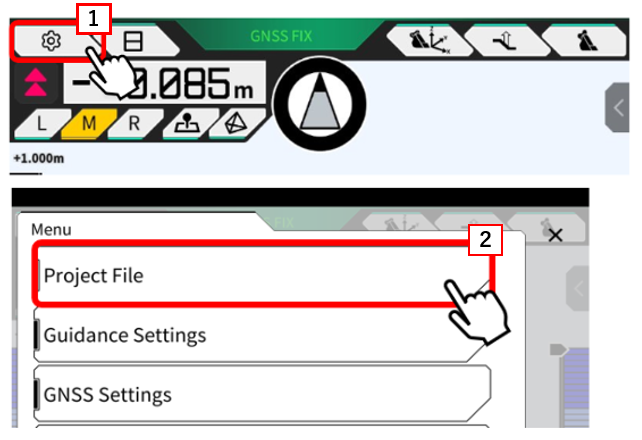

1. Select 【"1"the gear mark】 and choose 【"2" Project file】.



2. Download the transferred file

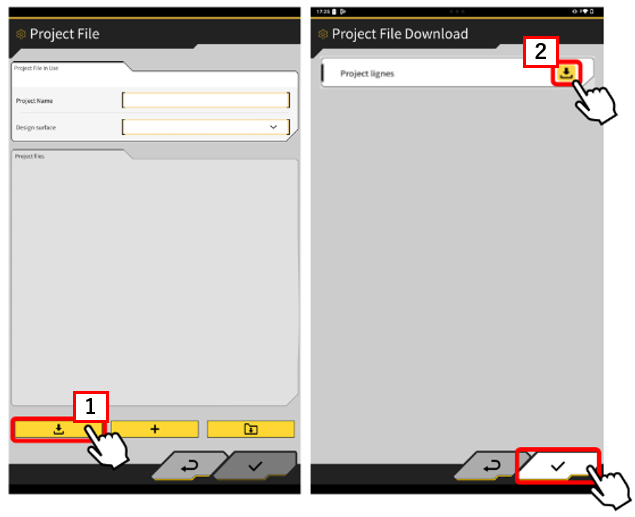

Tap 【"1"the Download button】 and 【"2"download】 the transferred design data from the management application (Pilot WEB).
*Internet connection is required for downloading.

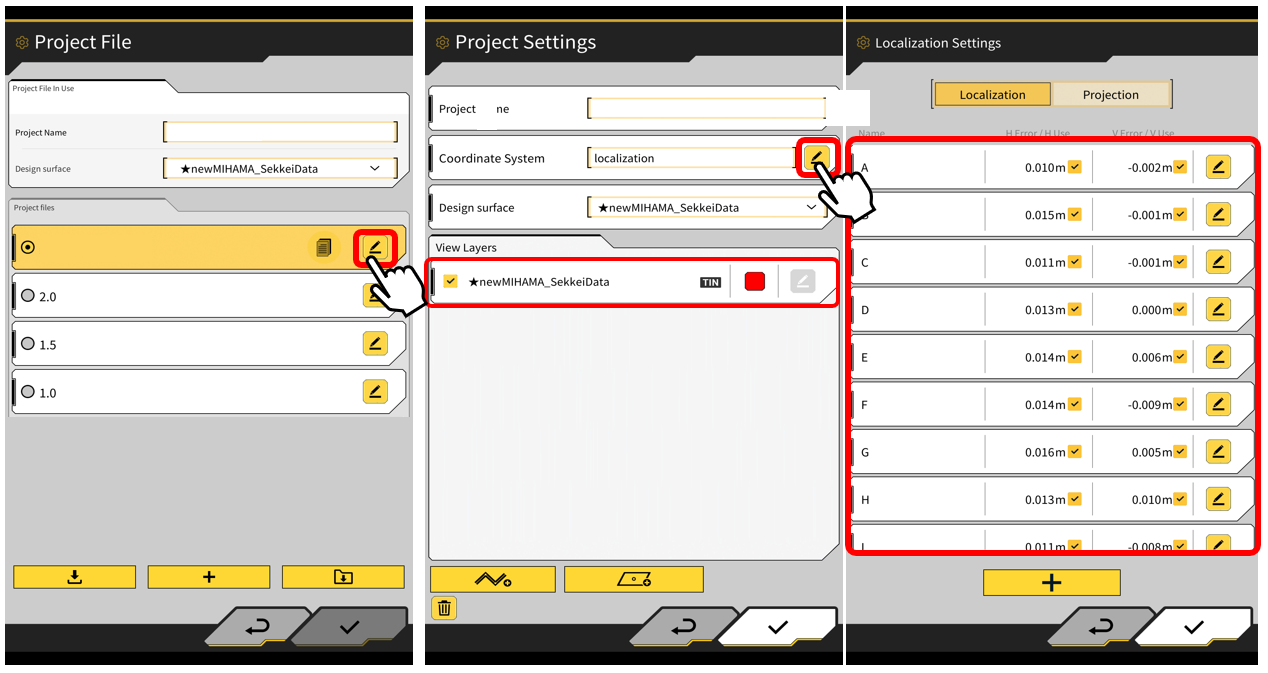

3. After setting, check the data and confirm whether localization is configured before use.

Supplementation

Change data layer

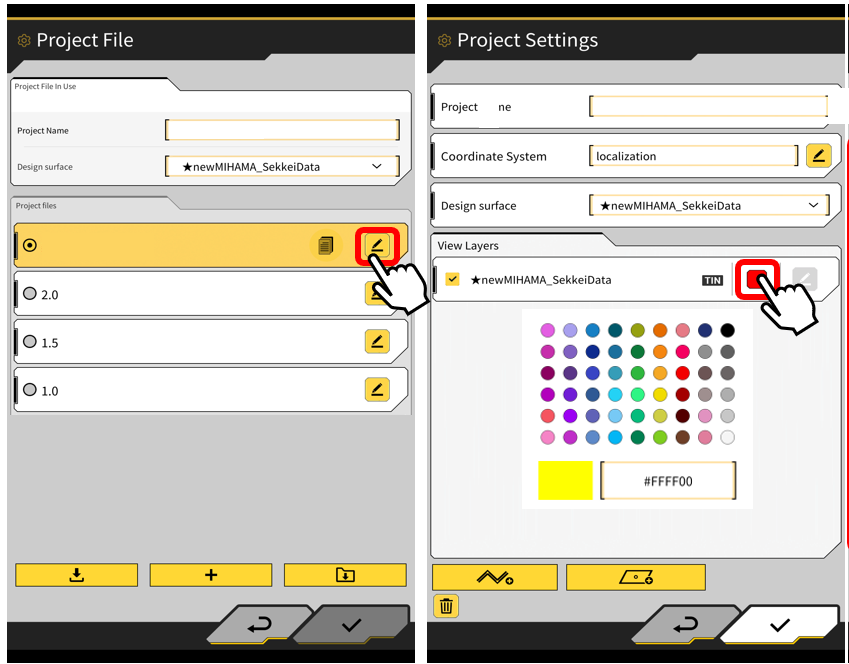

The color of the imported data layer can be changed by editing (TIN/Line).



Show/Hide TIN data and linework

Show/Hide settings can also be set for each layer.

1). Tap the Edit button of the currently selected project file.
2.) Place a check mark on the layers you wish to show, and remove the check mark on the layers you wish to hide.

3.)Finally, press the check button in the lower right corner to save the file.

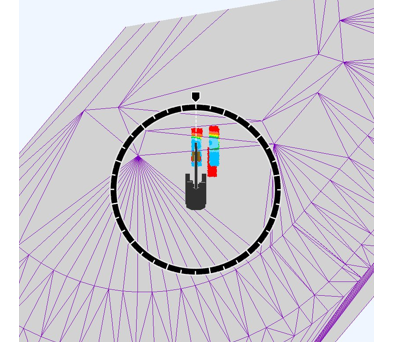

Example
