How to obtain as-built data in an environment without internet access

Introduction

This article provides a detailed explanation on how to obtain and upload as-built data in an environment without internet access. In an environment without internet access, it is not possible to upload the as-built data to the server. Therefore, it is necessary to bring the tablet to an environment with internet access to perform the upload.

As-built data is stored on the tablet for a basic period of 7 days. After the 7th day, data from the first day will be automatically deleted.

Procedures and Explanation

0. Preliminary Preparation (Prerequisites)

・The project file for the target site is selected in the tablet app (Smart Construction Pilot).

　Reference article: How to set up the project data for work

・The calibration settings for the bucket and machine of the 3DMG machine connected to the tablet app (Smart Construction Pilot) are completed.

　Reference article: How to perform bucket calibration

　Reference article: Instruction Manual: Initial settings and calibration

・The as-built data acquisition is set to ON in the tablet app (Smart Construction Pilot).

Setting => Administrator Settings => [Enter Password: ll?2017] => Administrator Guidance Settings

[Send Topography Data] = "ON"

[Interval Time (Second)]: Please set your required time.

 e.g. an hour:3600(Seconds), a day: 86,400(Seconds), a week: 604,800(Seconds)

　

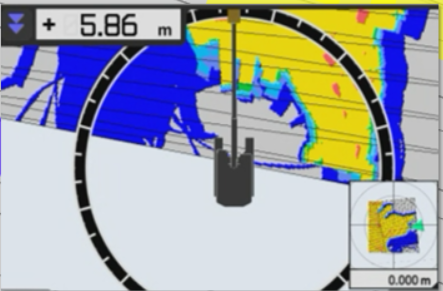

1. Performing Construction On-Site (In an Environment Without Internet Access)

2. Confirming As-Built Data Is Saved on the "Tablet" without internet access

 *If you would like to check, you can see in the following Folder.

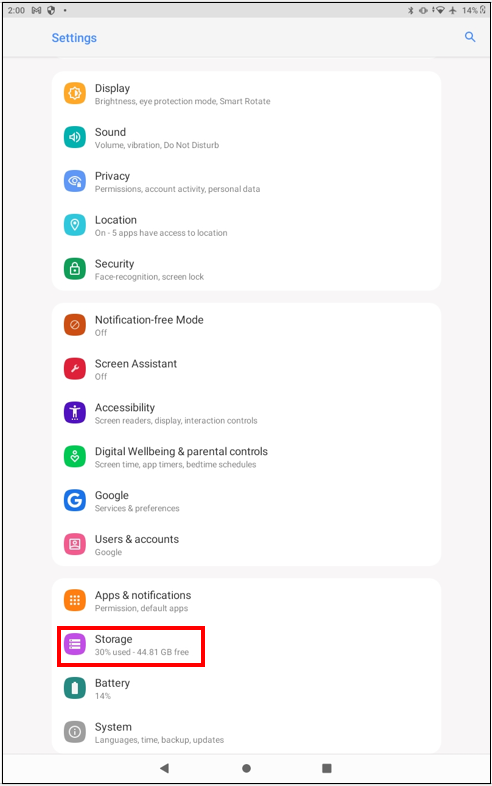

Setting icon of Tablet *NOT Smart Construction Pilot app

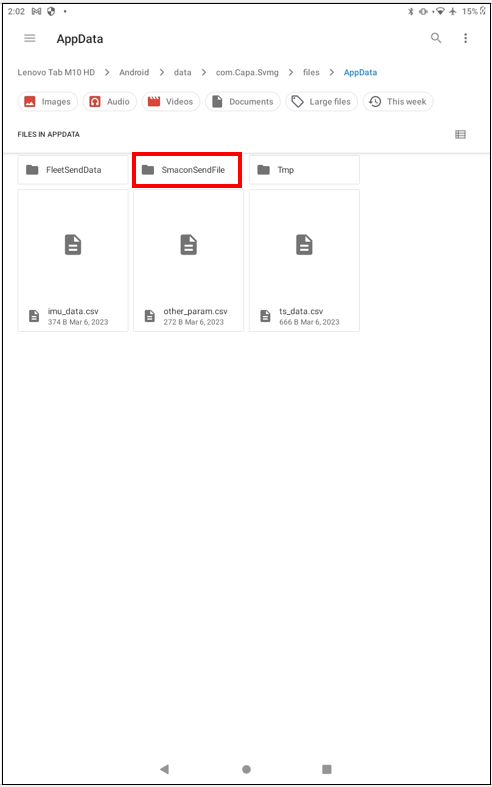

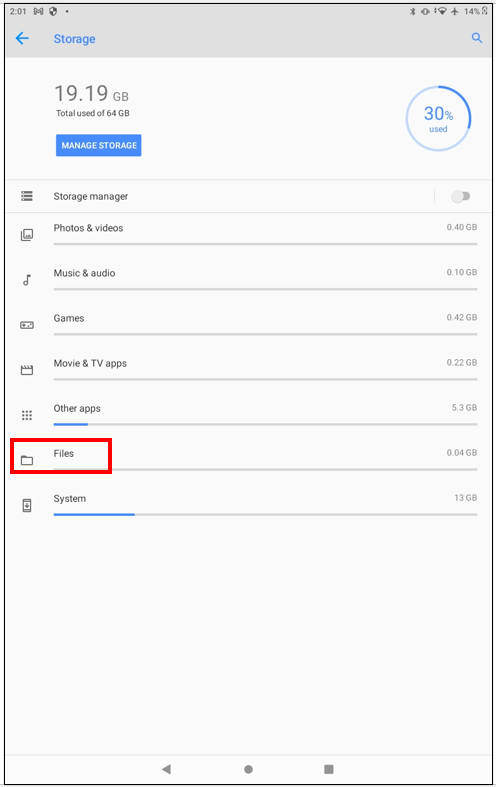

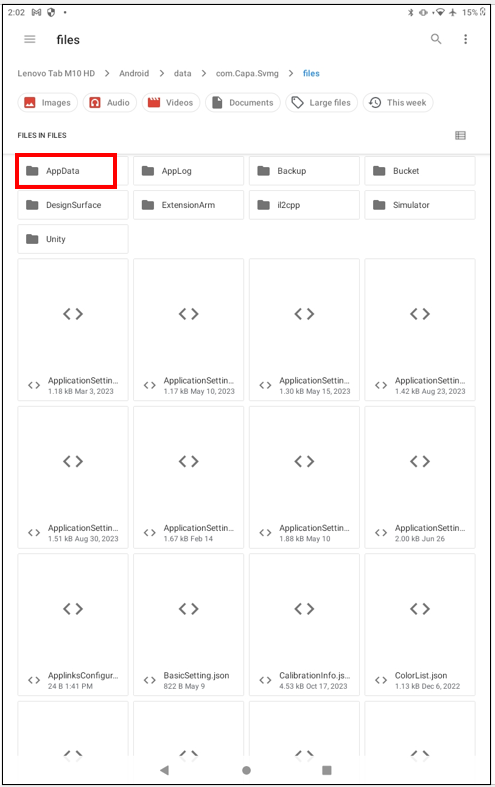

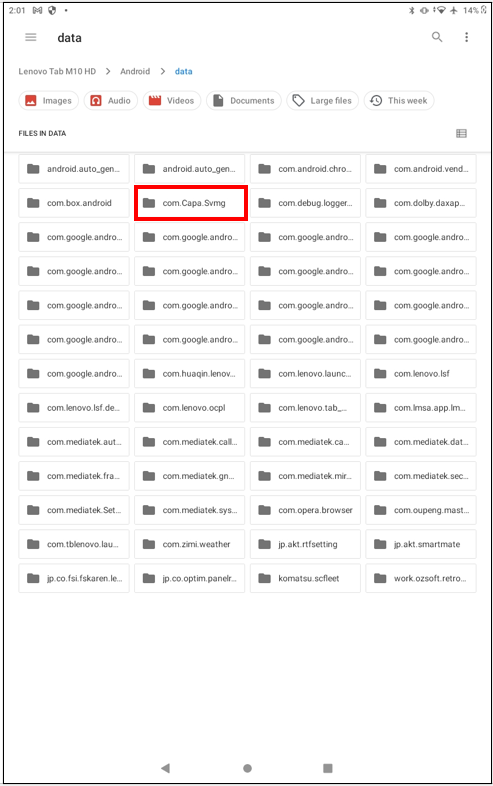

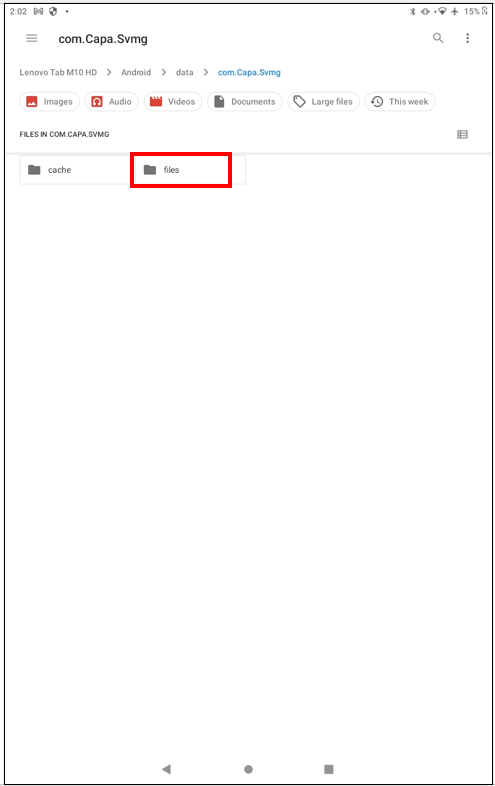

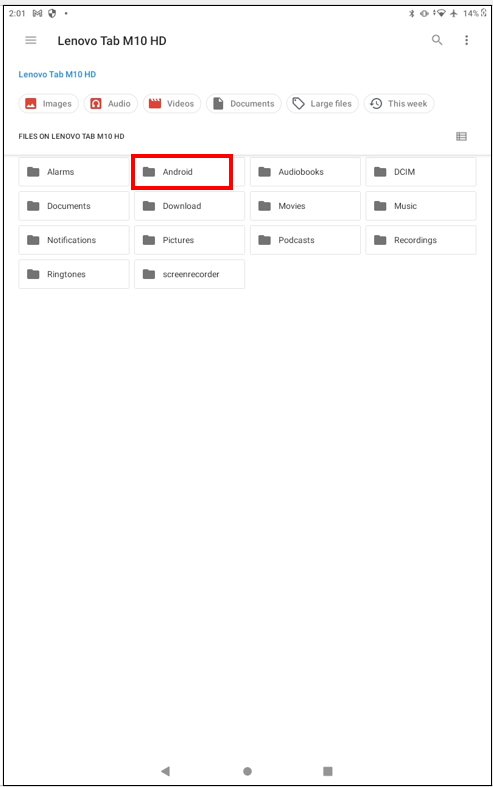

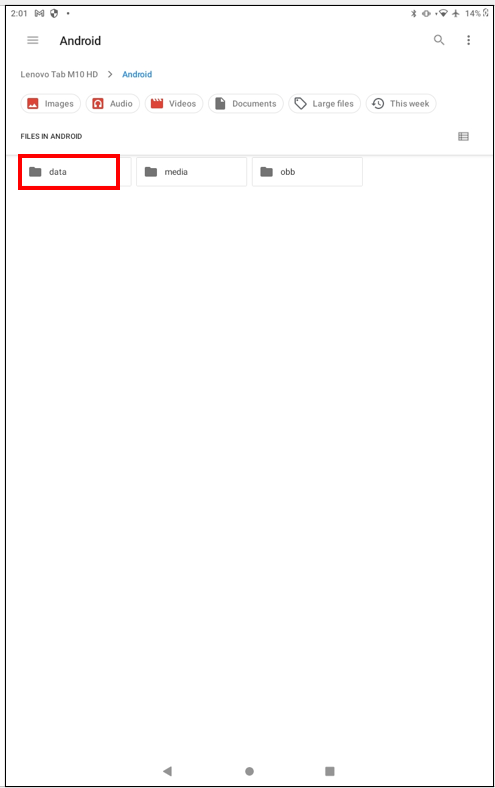

Storage => File => Android => Data => com.Capa.Svmg => files => AppData => SmaconSendFile







As-built data is under the Folder: SmaconSendFile
if Folder is empty, it means no As-built data is saved.

*As-built file is deleted after uploading to server of process [3]

3. Uploading in an Environment with Internet Access
Connect the tablet to the internet and launch the tablet app (Smart Construction Pilot and Machine Guidance).

When the app( Machine Guidance is selected) is launched in an environment with internet access, the as-built data is automatically sent to the server.

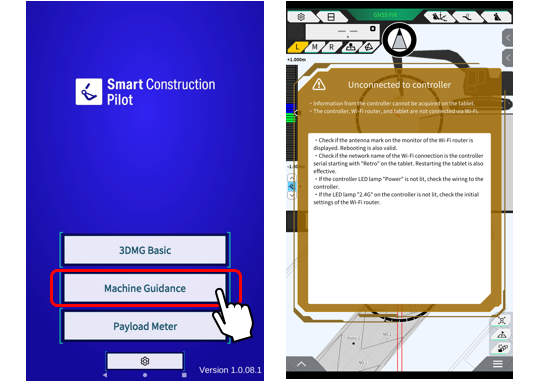

1)Tablet App Icon

2)Screen After Launching the Tablet App(select Machine Guidance)
